1.8 Main fuse panel
GUID-C88DE612-1945-4CBE-B340-68A20D3521F8-high.jpg [High]

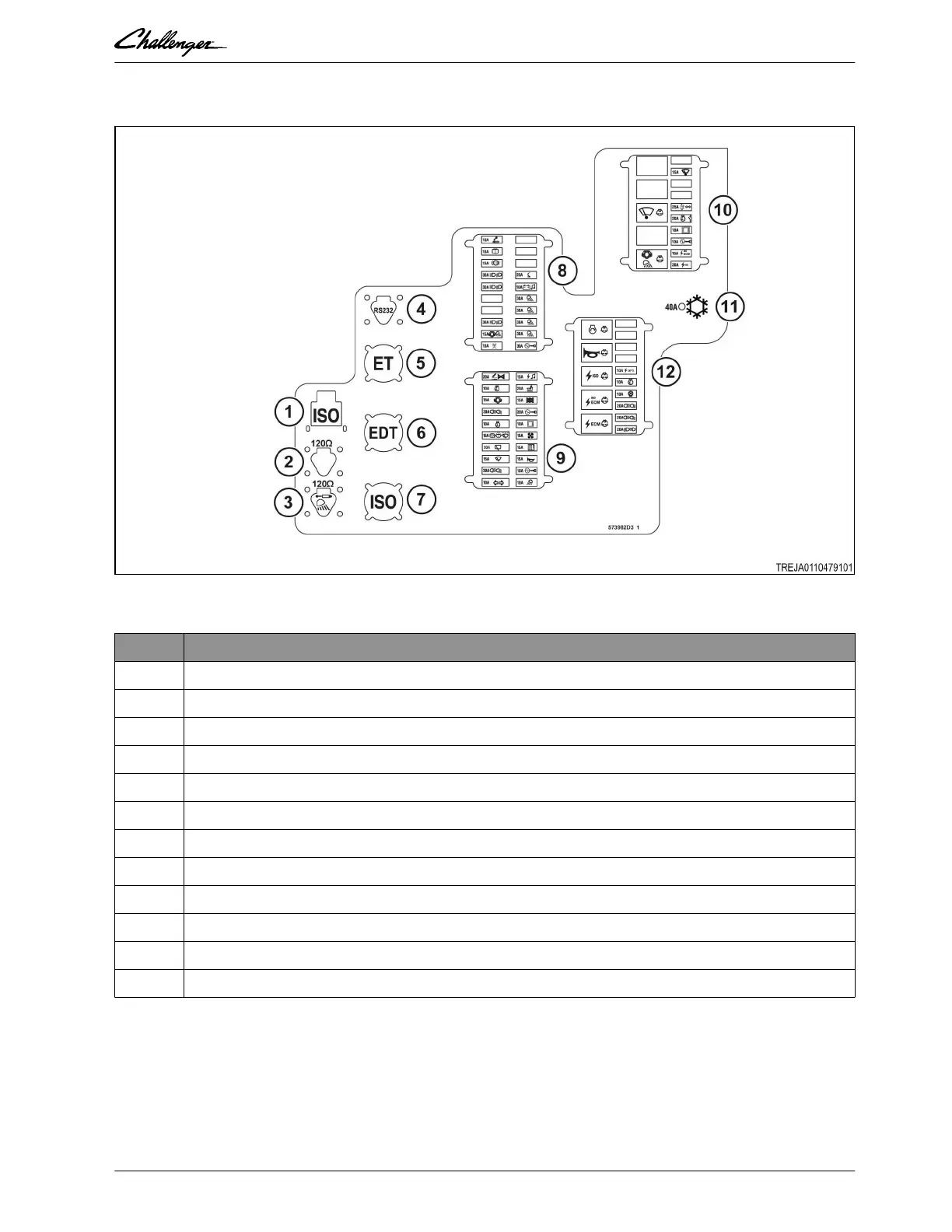

Fig. 25
The main fuse panel is located inside of the cab.
Item Description
1 ISO - TBC (Terminating bias circuit)
2 Power train resistor 120 OHM
3 Light /Auxiliary resistor 120 OHM
4 Guidance RS232
5 ET - Electronic service connector
6 EDT - Electronic diagnostic service connector
7 ISO - Service connector
8 Fuse block 1
9 Fuse block 2
10 Fuse / Relay block 1
11 40 AMP - A/C fuse 1
12 Fuse / Relay block 2
GUID-559BFC75-36BF-4417-8AF7-EFDB99FDE9B6 [V3]
1. General
Rubber Track Tractor 1-31
79036614D
