Challenger MT755E Workshop Service Manual

Standard High Low
Thread Size Pound Feet
lbf ft
Newton
Meters Nm
Pound Feet
lbf ft
Newton
Meters Nm
Pound Feet
lbf ft
Newton
Meters Nm
1 1/8 - 7 860 to 1060 1150 to 1450 965 to 1175 1300 to 1600 465 to 565 610 to 790
1 1/4 - 7 1190 to 1450 1600 to 2000 1395 to 1705 1850 to 2350 880 to 1070 875 to 1125
1 3/8 - 6 1600 to 1960 2100 to 2700 1790 to 2190 2400 to 3000 1185 to 1445 1850 to 1150
1 1/2 - 5 2050 to 2510 2750 to 3450 2385 to 2915 3200 to 4000 1515 to 1845 1500 to 1900
Standard taperlock studs
Thread Size Pound Feet lbf ft Newton Meters Nm
1/4 6 8
5/16 13 17
3/8 26 35
7/16 33 45
1/2 48 65
5/8 80 110
3/4 125 170
7/8 190 260
1 300 400
1 1/8 390 525
1 1/4 550 750
1 3/8 700 950
1 1/2 880 1200
Four-bolt split flange
Make sure the sealing surfaces are free of burrs,
damage, and scratches or any unwanted particles.
Lubricate the O-ring. Set the flanges and the half
clamps. Put the lock washers on the bolts and put
the bolts through the half clamps. Hand tighten
the bolts. Tighten the bolts in a cross sequence in
small amounts to the torque amount for the series
of flange.

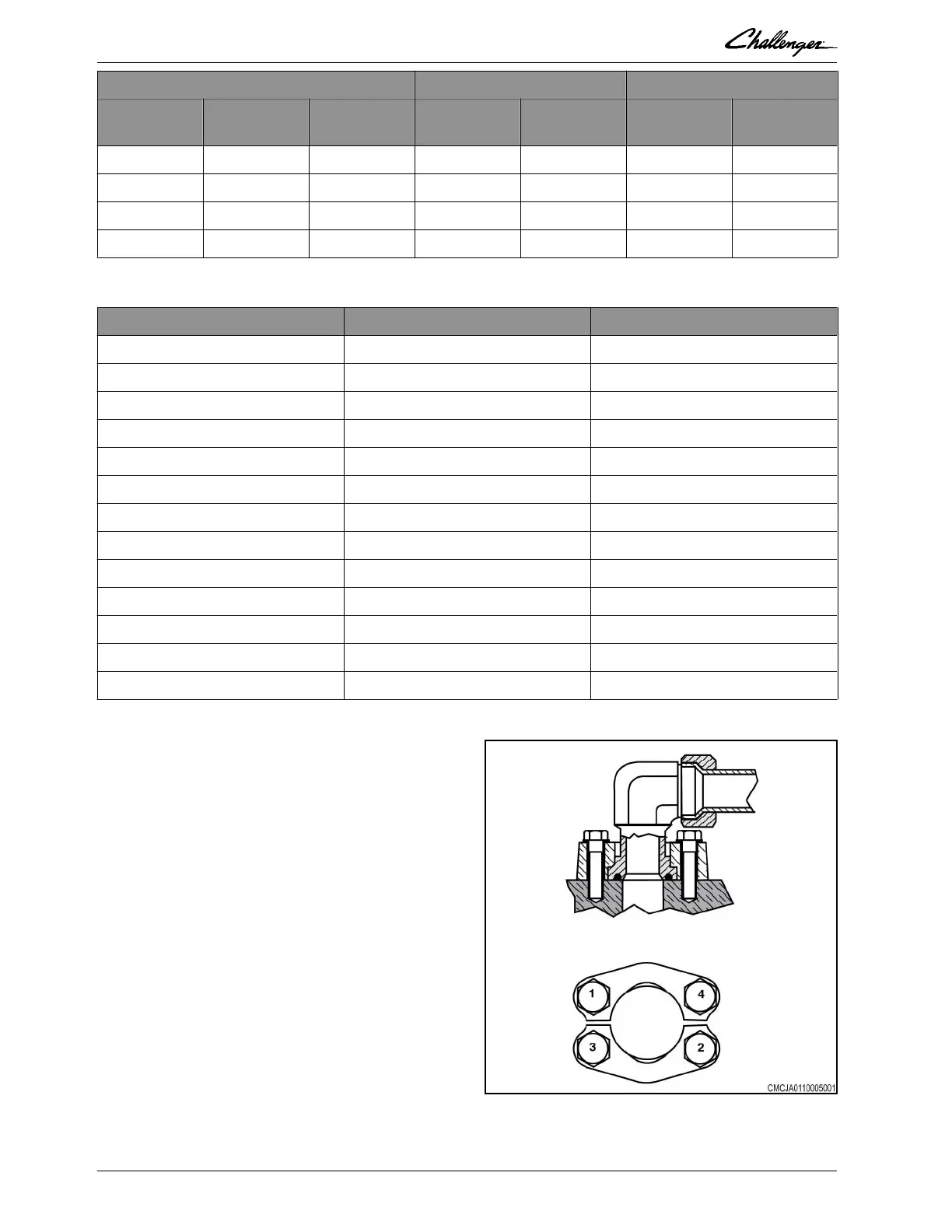

GUID-D32EA531-6D41-48C9-BA4E-DBE8590B4D5B-high.jpg [High]
Fig. 46
1. General
1-46 Rubber Track Tractor
79036614D
