Standard High Low
Thread Size Pound Feet
lbf ft
Newton
Meters Nm
Pound Feet
lbf ft
Newton
Meters Nm
Pound Feet
lbf ft
Newton
Meters Nm
1 1/8 - 7 860 to 1060 1150 to 1450 965 to 1175 1300 to 1600 465 to 565 610 to 790
1 1/4 - 7 1190 to 1450 1600 to 2000 1395 to 1705 1850 to 2350 880 to 1070 875 to 1125
1 3/8 - 6 1600 to 1960 2100 to 2700 1790 to 2190 2400 to 3000 1185 to 1445 1850 to 1150
1 1/2 - 5 2050 to 2510 2750 to 3450 2385 to 2915 3200 to 4000 1515 to 1845 1500 to 1900
Standard taperlock studs
Thread Size Pound Feet lbf ft Newton Meters Nm
1/4 6 8
5/16 13 17
3/8 26 35
7/16 33 45
1/2 48 65
5/8 80 110
3/4 125 170
7/8 190 260
1 300 400
1 1/8 390 525
1 1/4 550 750
1 3/8 700 950
1 1/2 880 1200

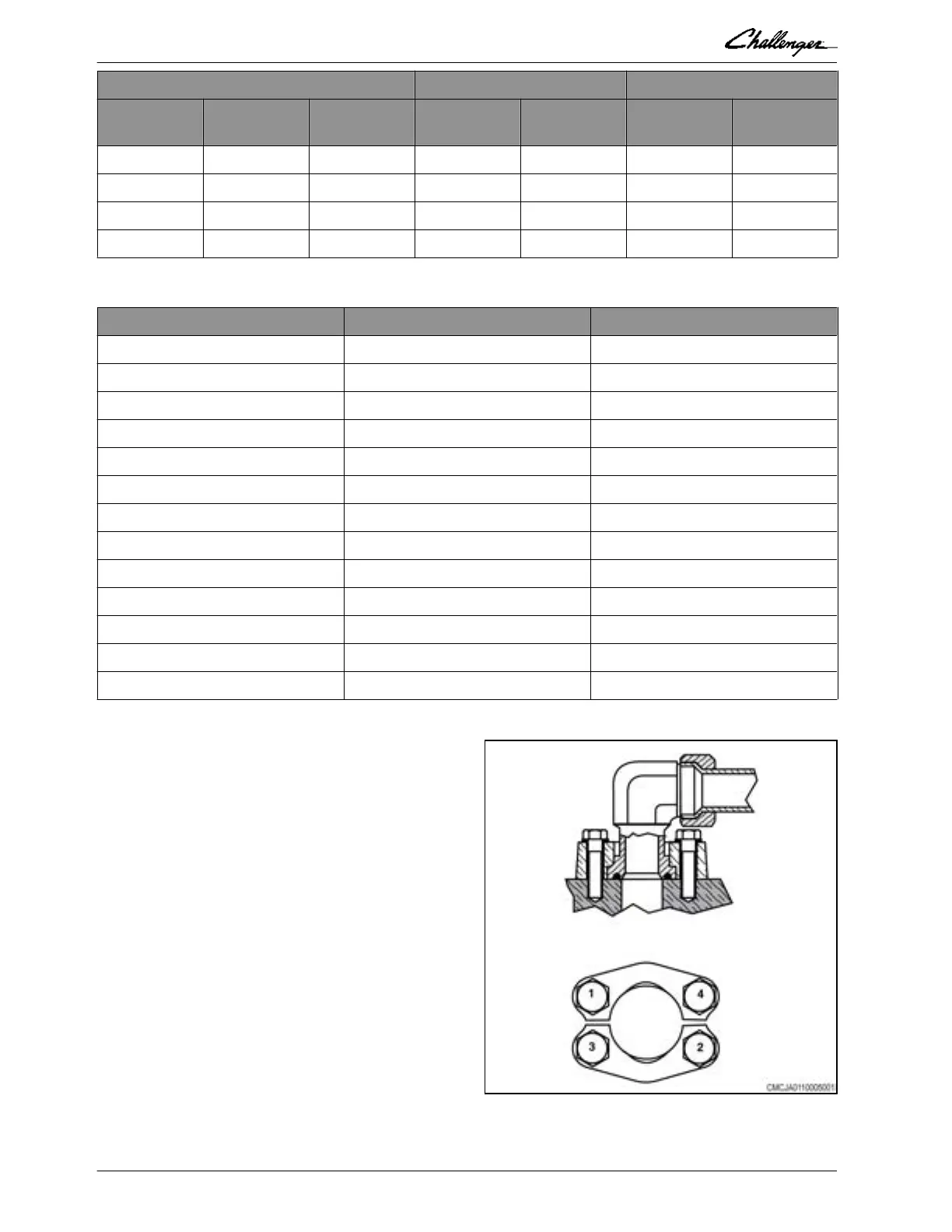

Four-bolt split flange
Make sure the sealing surfaces are free of burrs,
damage, and scratches or any unwanted particles.
Lubricate the O-ring. Set the flanges and the half
clamps. Put the lock washers on the bolts and put
the bolts through the half clamps. Hand tighten
the bolts. Tighten the bolts in a cross sequence in
small amounts to the torque amount for the series
of flange.
GUID-D32EA531-6D41-48C9-BA4E-DBE8590B4D5B-high.jpg [High]
Fig. 20
1. General
1-26 Articulated Tractor
79036231D
