2.2.5 Removing the alternators
WARNING:
Hot components can burn. Severe personal injury can result. Let the engine and
components cool before doing maintenance.
Procedure
1.
Park the machine on a solid level surface. Stop the engine, apply the parking brake, and take the key
with you.
2.

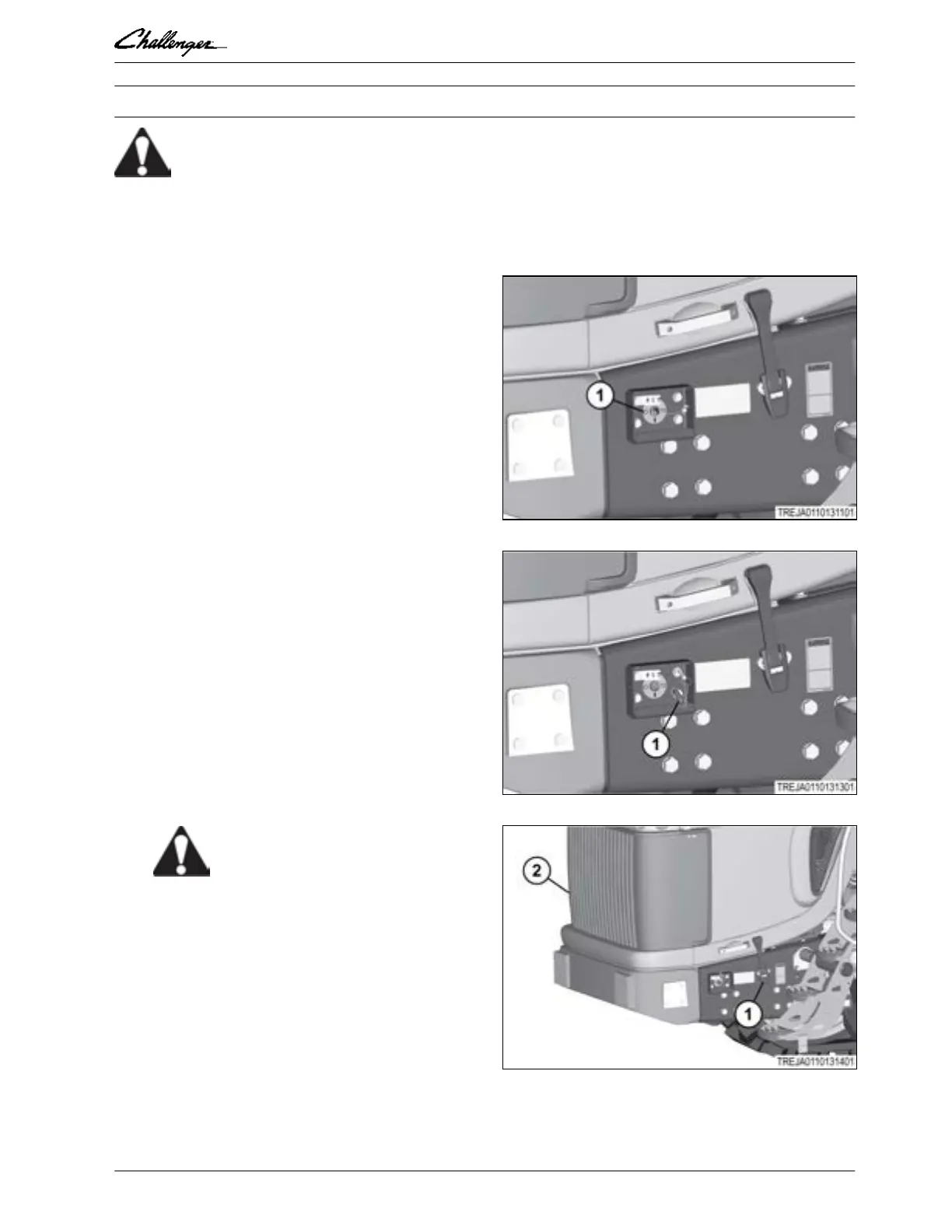

Turn the battery disconnect switch key (1)
counterclockwise to disconnect the battery
power.
NOTE:
The battery disconnect switch is shown in
the off position.
GUID-57C975DA-BFD1-4013-AE90-52262183416A-high.jpg [High]
Fig. 24
3.
Remove the battery disconnect switch key
(1).
GUID-413DAA31-908C-454D-B08A-596FDBD23FC4-high.jpg [High]
Fig. 25
4. CAUTION:
Safely prop open the engine
cover. Closing engine cover
creates a pinch point that can
cause serious bodily injury.
Release both side latches (1) and open the
engine cover (2) all the way.
GUID-47B58FBC-4263-4ED9-9E37-CCA29DE10FF0-high.jpg [High]
Fig. 26
GUID-245DEBF2-E7D2-4505-A45B-6158943E14B5 [V1]
2. Engine, fuel, and exhaust system
Articulated Tractor 2-13
79036231D
