2.2 Engine system components
2.2.1 Removing the main serpentine belt
Procedure
1.
WARNING:
Hot components can burn. Severe personal injury can result. Let the engine and the components
cool before doing maintenance.
Park the machine on a solid level surface. Stop the engine, apply the park brake, and take the key
with you.
2.

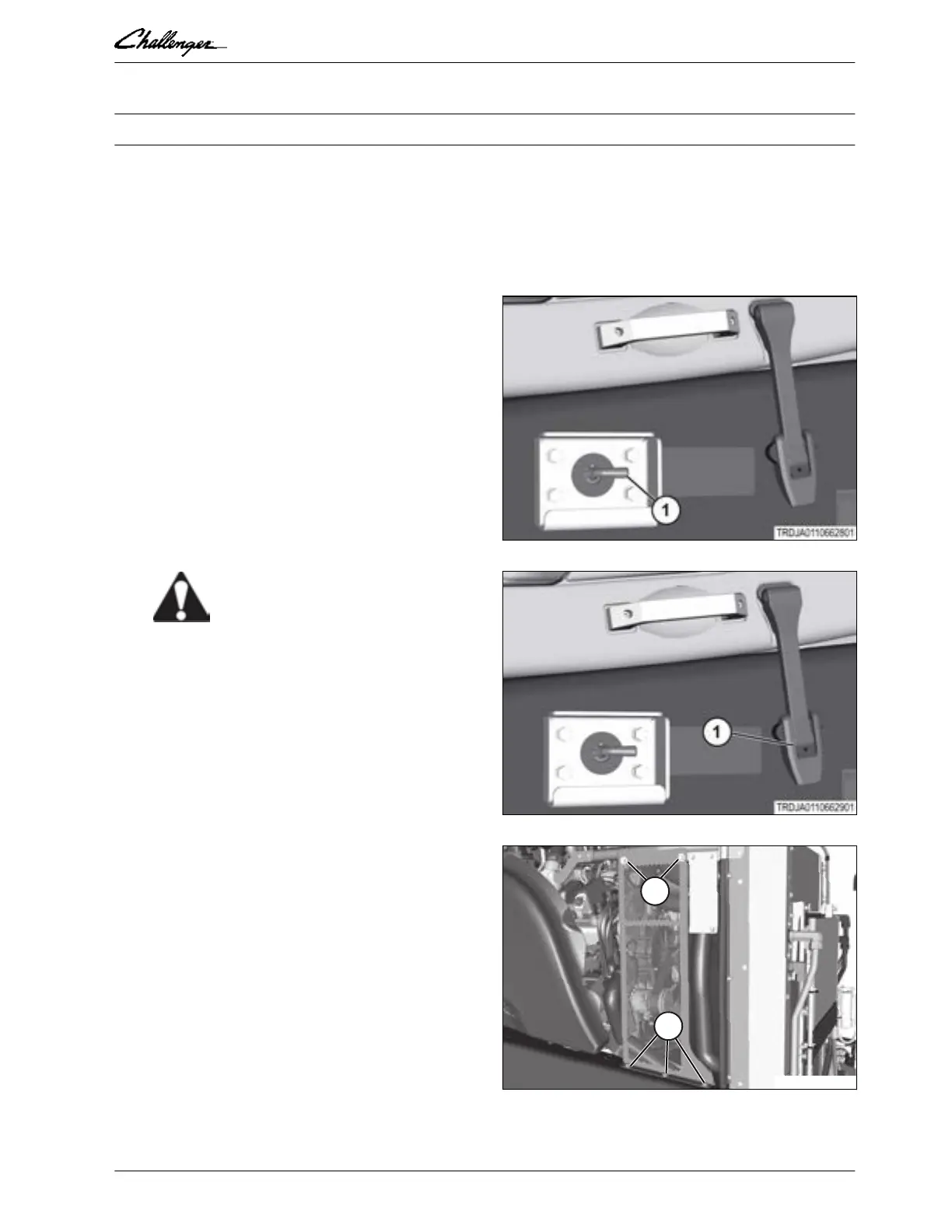

Put the battery disconnect switch key (1) in
the off position, to close off the battery
power. Remove the battery disconnect
switch key.
GUID-4402DB30-D3E1-4CE7-A77C-8973E245023C-high.jpg [High]
Fig. 5
3. CAUTION:
Safely prop open the engine
cover. Closing the engine cover
creates a pinch point that can
cause serious bodily injury.
Release both side latches (1) and open the
engine cover all the way.
GUID-F85152ED-DA2A-47F8-B303-7840AC2C5865-high.jpg [High]
Fig. 6
4.
Remove the hardware (1) and the right-hand
side engine screen.
GUID-7B7D1E65-5A69-4C84-B22B-035A5C9DCAFF-high.eps [High]
Fig. 7
[V]
GUID-B3744325-7883-4A60-8D72-77A3140245CE [V1]
2. Engine, fuel, and exhaust system
Articulated Tractor 2-7
79036231D
