IMPORTANT: Care must be taken to be sure that the fluids are contained during performance of
inspection, maintenance, testing, adjusting, and repair. Be prepared to collect the fluid with suitable
containers before opening any compartment or disassembling any component containing fluid. Dispose all
fluids in accordance with local regulations and mandates.
NOTE: Replace the fuel filter elements at 800 hour intervals or if indicated by error code.
NOTE: See the engine operator manual for more complete information.
IMPORTANT: The engine warranty is valid only when original AGCO Power Diesel fuel filter elements are
used.
Procedure
1.
Clean the fuel filters and adjacent area.
2.
Close the fuel valve (5).
3.
Drain prefilter (2).
4.
Disconnect prefilter water detector
connector (1).
5.
Turn filter element (2) counterclockwise and
remove element from mounting bracket.
Collect fuel into a applicable container.
6.
Remove the water detector (3) from the
prefilter bottom end.

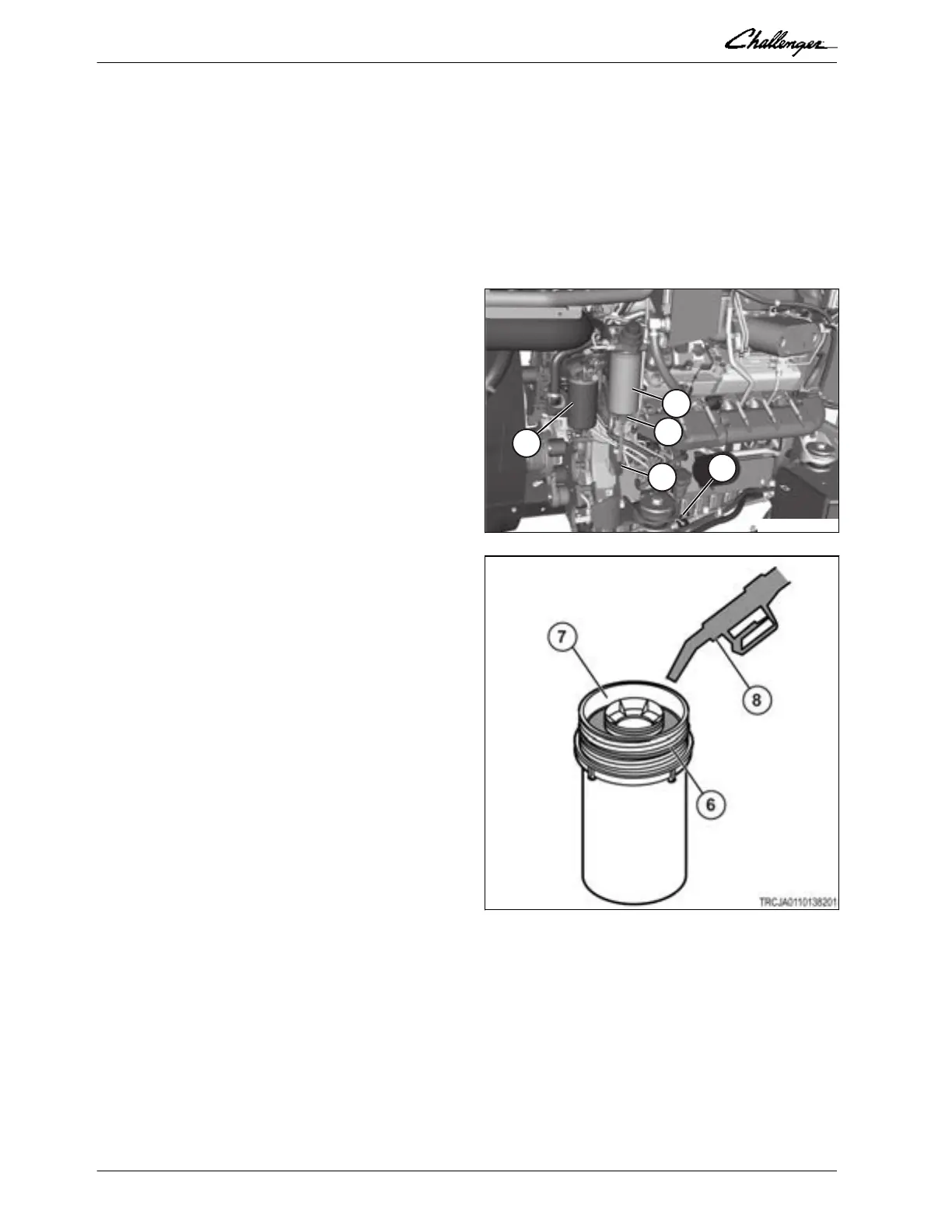

GUID-BA2EEB53-E1B3-4D3B-9F43-16A638AB01F2-high.eps [High]
Fig. 3
7.
Remove the main filter (4) in a similar way.
8.
Fasten the water detector (3) to the new
prefilter bottom end.
9.
Lubricate the filter element o-ring seal (6)
with clean fuel.
10.
Fill the outer shell of the filter element (7)
with clean fuel (8).
11.
Turn filter element on the mounting bracket.
12.
Connect the water detector connector (1).
13.
The main filter (4) is assembled in a similar
way.
14.
Open the fuel valve
15.
Prime the fuel system. See fuel system
priming.
16.
Start the engine and make sure there are no
leaks.
GUID-764AE0F5-6EA1-4F5A-8ABD-EBA65A7A4869-high.jpg [High]
Fig. 4
