Challenger MT945E - Page 32

Standard taperlock studs
Thread Size Pound Feet lbf ft Newton Meters Nm
M6 6 8
M8 13 17
M10 26 35
M12 48 65
M16 80 110
M20 125 170
M24 300 400
M30 550 750
M36 880 1200
Metric bolt and cap screws

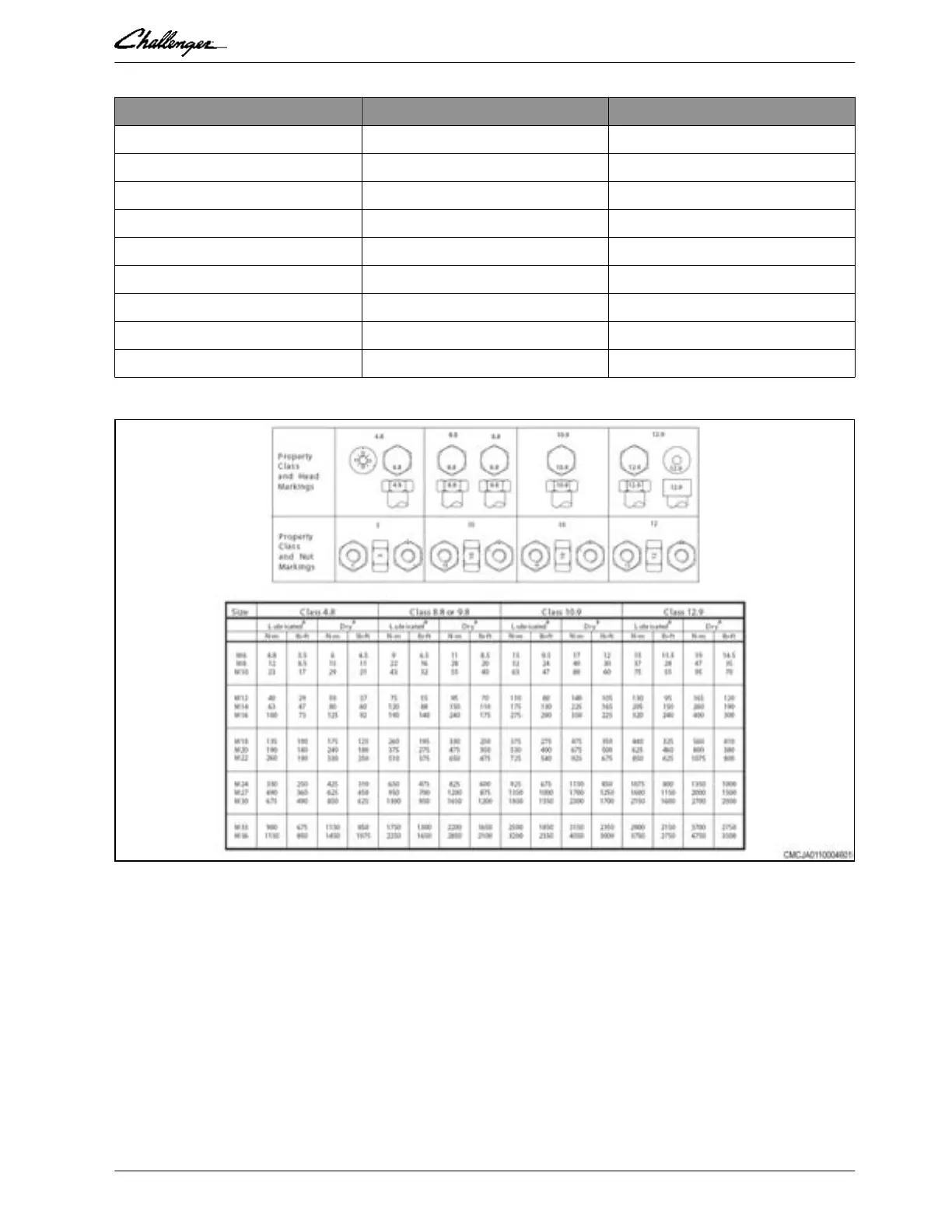

GUID-7AF08829-E556-40A7-B8C7-61E951B65C34-high.jpg [High]
Fig. 22
