Chamberlain 1200 - Replacement Parts Identification; Opener and Rail Assembly Parts

9
UP
CEILING MOUNT ONLY
7
11
12
LIGHT
LOCK
1
2
5
NOTICE
6
8
13
15
14
10
4
3
2
1
3
4
5
RAIL GREASE
NO. 83A4
6

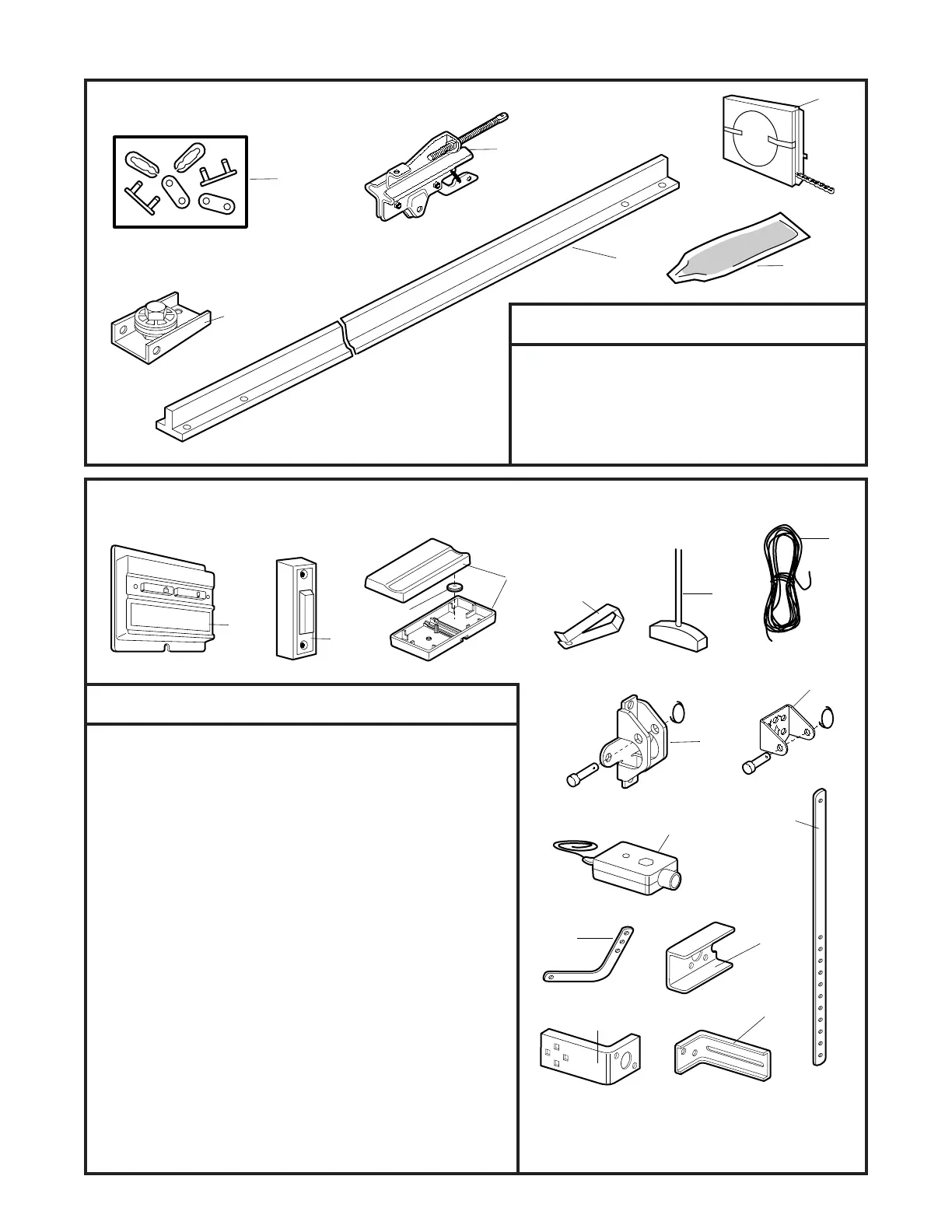

Repair Parts
Rail Assembly Parts
Installation Parts
36
KEY PART
NO. NO. DESCRIPTION
1 1A995 Master link kit
2 41A4813 Chain pulley bracket
3 41A3489 Complete trolley assembly
4 183B99 One-piece T-rail
5 41D3484 Full chain assembly
6 83A4 Rail grease
KEY PART
NO. NO. DESCRIPTION
1 41A4202A Multi-function door control panel
2 41A4166 Lighted door control button
3 10A20 3V2032 Lithium battery
4 41A3984-7 Transmitter case, cover & screw only
5 29B137 Transmitter visor clip
6 41A2828 Manual rope & handle assembly
7 217A238 2-Conductor bell wire - white & white/red
8 41A5047 Door bracket w/clevis pin & fastener
9 41A4353 Header bracket w/clevis pin & fastener
10 41A4373A Safety sensor kit (receiving and sending
eyes) with 3' 2-conductor bell wire
attached
11 178B34 Straight door arm section
12 178B35 Curved door arm section
13 12B483 "C " Wrap bracket
14 12B484 Square holed mounting bracket
15 12B485 Slotted mounting bracket
NOT SHOWN
41A2770-2 Installation hardware bag (includes
hardware illustrated on page 7).
41A4116 Safety sensor hardware
114A1915 Owner's manual
