Repair Parts
1A
2A
11
9
14
15
16
17
20
5
4
6
3
DN
UP
Brown
Wire
(Down)
Contact
LIMIT SWITCH ASSY.
Grey
Wire
Yellow
Wire
(Up)
Contact
Center Limit
Contact
Drive
Gear
8
10
21
17
13
7
8
19
2
7
8A
12
18
1
KEY PART
NO. NO. DESCRIPTION
1 41A4208 Chain spreader w/screws (1256, 1246)
1A 31D380 Sprocket cover (all other models)
2 41C4206A Gear and sprocket assy. (1256, 1246)
2A 41C4220A Gear and sprocket assy. (All other models)
Complete with: Spring washer,
Thrust washer, Retaining ring, Bearing
plate, Roll pins (2), Drive gear and worm
gear, Helical gear w/retainer and grease
3 41A2817 Drive/worm gear kit w/grease
Roll pins (2)
4 41B4245 Line cord
5 143D152 End panel w/all labels
(1260, 1260-266, 1260-166,1250,
1250-266)
6 143D100 End panel w/all labels (All other models)
7 175B88 Light socket
8 108D34 Lens (1260, 1260-266, 1260-166,
1250, 1250-266)
8A 108D36 Lens (All other models except 1240)
9 30B363 Capacitor - 1/2HP
30B387 Capacitor - 1/3HP
30B366 Capacitor - 1/4HP
10 12A373 Capacitor bracket
11 41A3150 Terminal block w/screws
KEY PART
NO. NO. DESCRIPTION
12 41D3058 Universal replacement motor &
bracket assy. Complete with: Motor,
worm, bracket, bearing assembly,
RPM sensor.
13 41A3583-2 Cover (1260, 1260-266, 1260-166,
1256, 1255, 1255-166)
41A3583-1 Cover (All other models except 1240)
41A3583 Cover (1240)
14 41A2818 Helical gear & retainer w/grease
15 41D3452 Limit switch asembly
16 41C4398A RPM sensor assembly
17 41C4246 Wire harness assy. w/plug
18 41A2826 Shaft bearing kit
19 41A2822A Interrupter cup assy.
20 41A4252-6B Receiver logic board assy. (1260,
1260-266,1260-166, 1250, 1250-266)
Complete with: Logic board,
End panel w/all labels, Light socket
41A4252-7B Receiver logic board assy.
(All other models)
21 41A3673 End panel w/all labels (1260,
1260-266, 1260-166, 1250, 1250-266)
41A3712 End panel w/all labels (All other models)
NOT SHOWN
41A2825 Opener assy. hardware kit (includes
screws not designated by a number in
illustration).
37

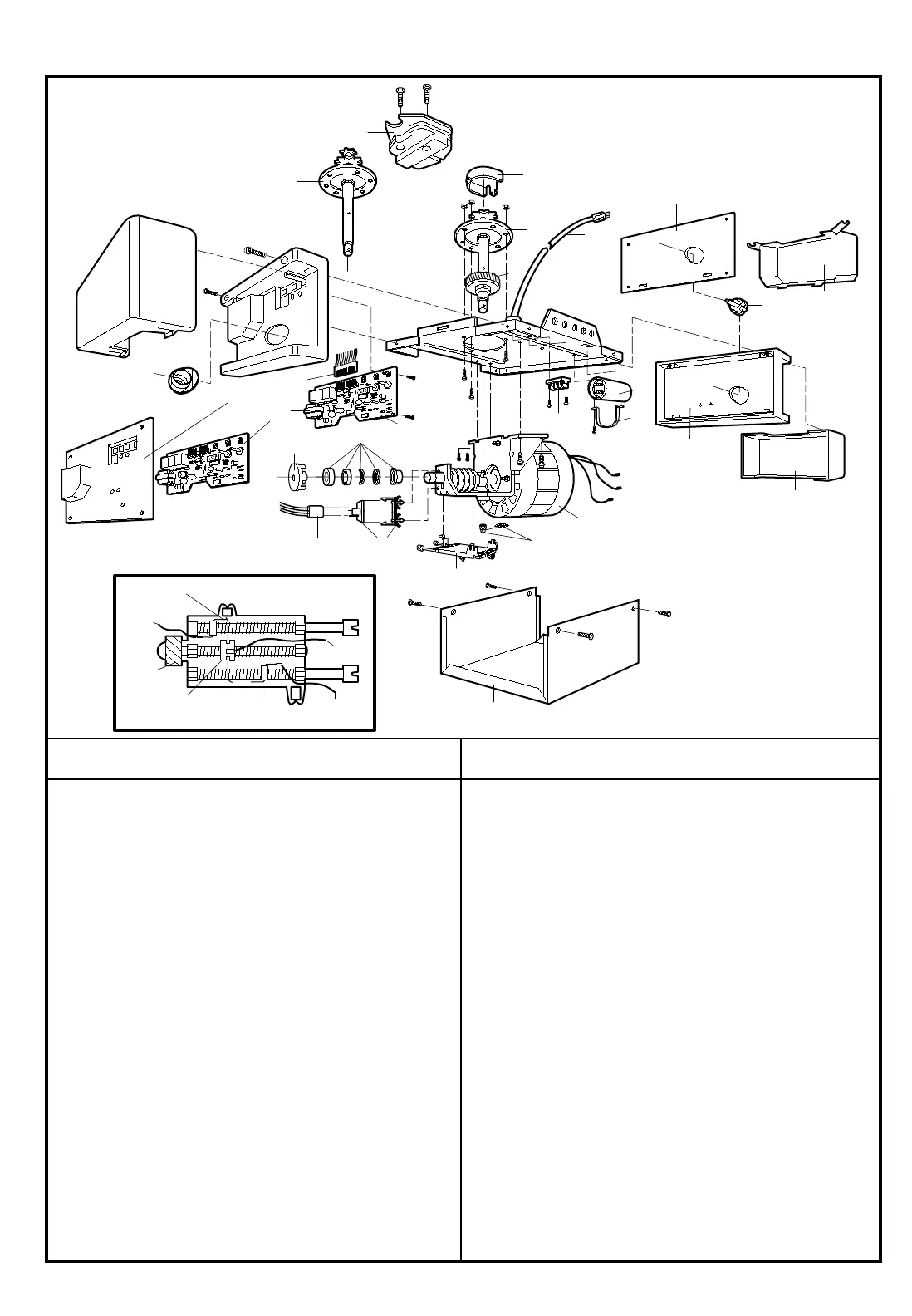

Opener Assembly Parts
