Chamberlain 1200 - Installation Hardware Kits; Hardware Kit Details

Lock Nut
1/4"-20 (4)
Carriage Bolts
1/4"-20x1/2" (4)
Safety Reversing Sensor
Installation Hardware Kit #41A4116
Hex Screw
1/4-20x1-1/2" (2)
Screw
#10-32 x3/8" (4)
Lock Nut
#10x32 (4)
Wing Nut (2)
Insulated
Staples (20)
Lag Screw
1/4x1-1/2" (4)
7
Nut 5/16"-18 (6)
Clevis Pin
5/16"x2-3/4" (1)
NOTICE
Handle
Insulated Staples (10)
Installation Hardware Kit # 41A2770
Dry Wall Anchors (2)
Clevis Pin
5/16"x1" (2)
Hex Screw
5/16"-18x7/8" (4)
Rope
Carriage Bolt
5/16"-18x2-1/2" (2)
Ring Fastener (3)
Screw
6ABx1" (2)
Lock Washer 5/16" (6)
Lag Screw
5/16"-18 x1-7/8" (4)
RAIL GREASE
NO. 83A4
Rail Grease

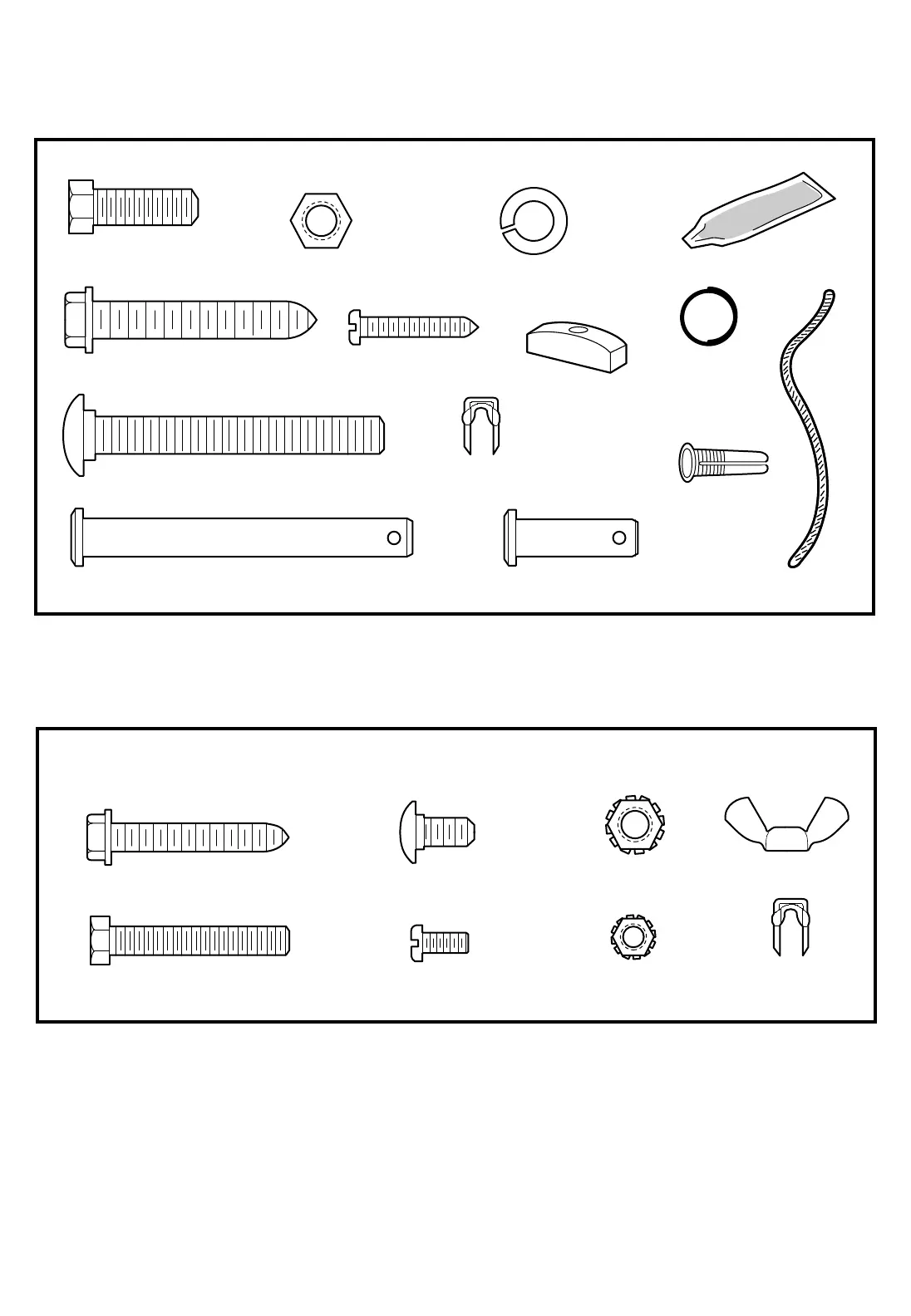

Group all hardware found in all packages contained in the opener carton into the two
kits illustrated below.
