Chamberlain 81600 - Repair Parts; Models 81600, 81602, 81640, 81650, and 83650-267

49

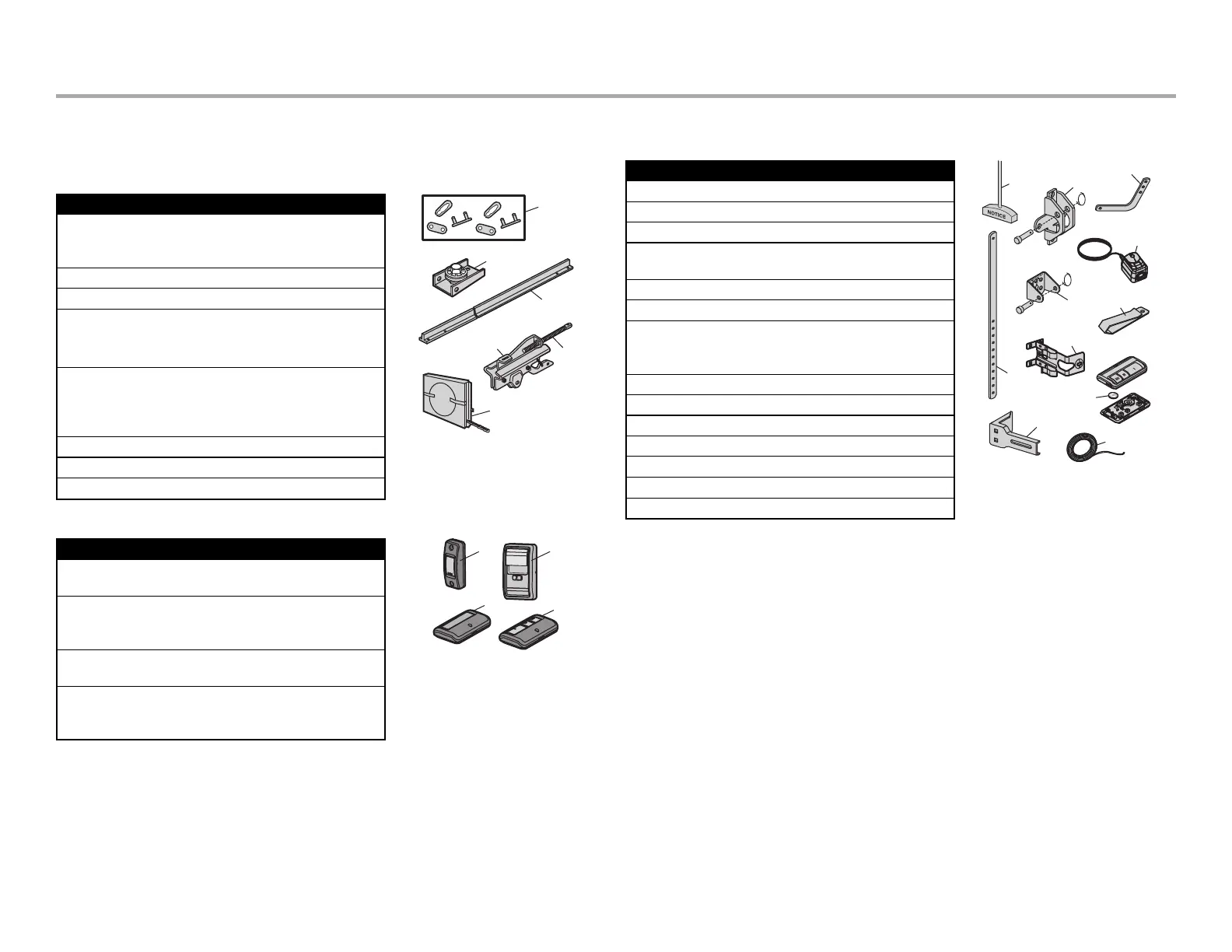

Repair Parts
Models 81600, 81602, 81640, 81650, and 83650-267
For Square Rail see instructions included with the LMSSRKIT.
RAIL ASSEMBLY PARTS
Description Part Number
1
Chain - for 7 foot door
041D3484
Chain - for 8 foot door
041D3483
Chain - for 10 foot door
041D3485
2
Chain Pulley Bracket
041A4813
3
Master link
004A1008
4
One-Piece Rail 7feet (2.1m)
1707LM
One-Piece Rail 8feet (2.4m)
1708LM
One-Piece Rail 10feet (3m)
1710LM
5
Trolley Assembly Includes:
ThreadedShaft(1), Nuts(2), Washer(1),
ClevisPin (1), Ring (1), MasterLink (1),
ChainExtension
041A3489
6
Trolley Threaded Shaft
041A6689
Not Shown
Rail Grease
K083A0011-1
1
3
4
5
6
2
ACCESSORIES
Description Part Number
1 Push Button Door Control
Model 81640
883LMW
2 Multi-function Control Panel
Models 81600, 81602, 81650, and
83650-267
882LMW
3 1 Button Remote Control
Model 81640
891LM
4 3 Button Remote Control
Models 81600, 81602, 81650, and
83650-267
893LM
1
3
4
2
INSTALLATION PARTS
Description Part Number
1
Curved door arm
041B0035B
2
Door bracket with clevis pin and fastener
041A5047
3
Emergency release rope and handle
041A2828
4
Header bracket with clevis pin and
fastener
041A4353
5
Remote control visor clip
K029B0137
6
Safety sensor bracket
041-0155-000
7
Safety sensor kit with receiving and
sending sensors with 3 feet (.9 m) 2-
conductor wire
041-0136
8
Straight door arm
4178B0034B
9
White and red/white wire
041B4494-1
10
3V CR2032 lithium battery
K010A0020
11
Extension bracket (optional)
041A5281-1
Not Shown
Installation hardware bag
041A2770-6
User’s Guide
114-5711-010
