6
Preparation

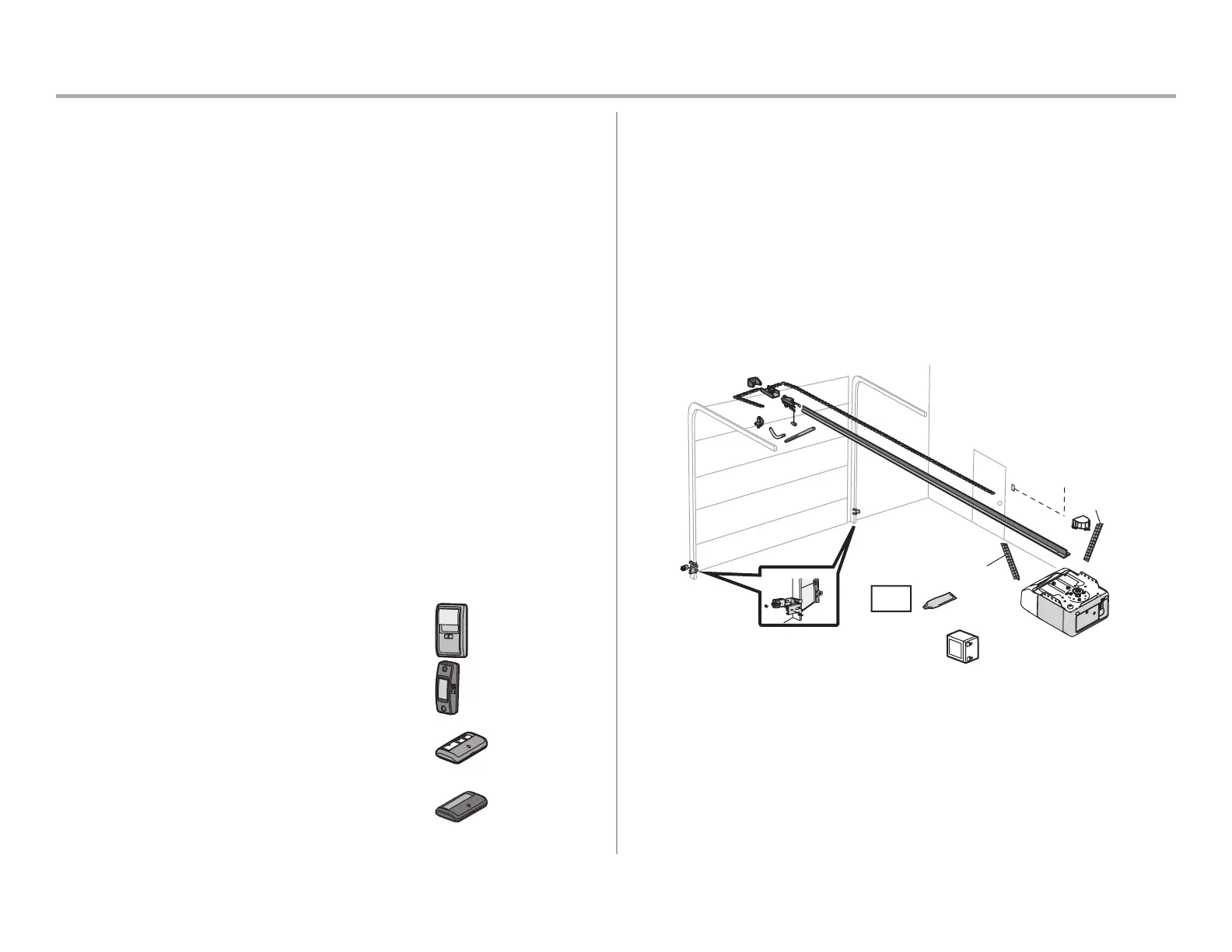

Carton Inventory: Models 81600, 81602, 81640, 81650, and
83650-267
Accessories will vary depending on the garage door opener model purchased. Depending on your
specific model, other accessories may be included with your garage door opener. The instructions
for these accessories will be attached to the accessory and are not included in this manual. The
images throughout this manual are for reference and your product may look different.
For Square Rail see instructions included with the rail kit model LMSSRKIT.
A. Header bracket
B. Pulley and bracket
C. Door bracket
D. Curved door arm
E. Straight door arm
F. Trolley
G. Emergency release rope and handle
H. Rail
I. Garage door opener
J. Sprocket cover
K. Chain
L. Door control
M. White and red/white wire
N. The Protector System
®
Safety reversing sensors with white and white/black wire attached: Sending Sensor (1)
Receiving Sensor (1) and Safety Sensor Brackets (2)
O. Safety labels and literature
P. Rail grease
Q. Battery Backup (Model 81602 only)
SECURITY+ 2.0
®
ACCESSORIES
882LMW
Multi-Function Door Control
Models: 81600, 81602, 81650, 83650-267
883LMW
Push Button Door Control
Model: 81640
893LM
Remote Control
Models: 81600, 81602, 81650, 83650-267
891LM
Remote Control
Model: 81640
HARDWARE
Installation Door Control Hardware
Hex bolt 5/16"-18 x 7/8" (4) Screw 6AB x 1" (2)
Lag screw 5/16"-9 x 1-5/8" (2) Screw 6-32 x 1" (2)
Clevis Pin 5/16" x 2-3/4" (1) Drywall anchors (2)
Clevis Pin 5/16" x 1-1/4" (1)
Clevis Pin 5/16" x 1" (1)
Nut 5/16"-18 (4)
Lock washer 5/16" (4)
Self-threading screw 1/4"-14 x 5/8" (2)
Ring fastener (3)
Carriage bolt 1/4"-20 x 1/2" (2)
Wing nut 1/4"-20 (2)
A
B
C
J
N
I
O
D
E
F
H
G
K
L
M
Not Provided
Not
Provided
P
Q
