l To AVOID damaging gas, power or other underground utility lines,
contact underground utility locating companies BEFORE digging more
than 18 inches (46 cm) deep.
l ALWAYS wear protective gloves and eye protection when changing
the battery or working around the battery compartment.
Step 1 Determine Location for Concrete Pad and Operator
DO NOT run the operator until instructed.

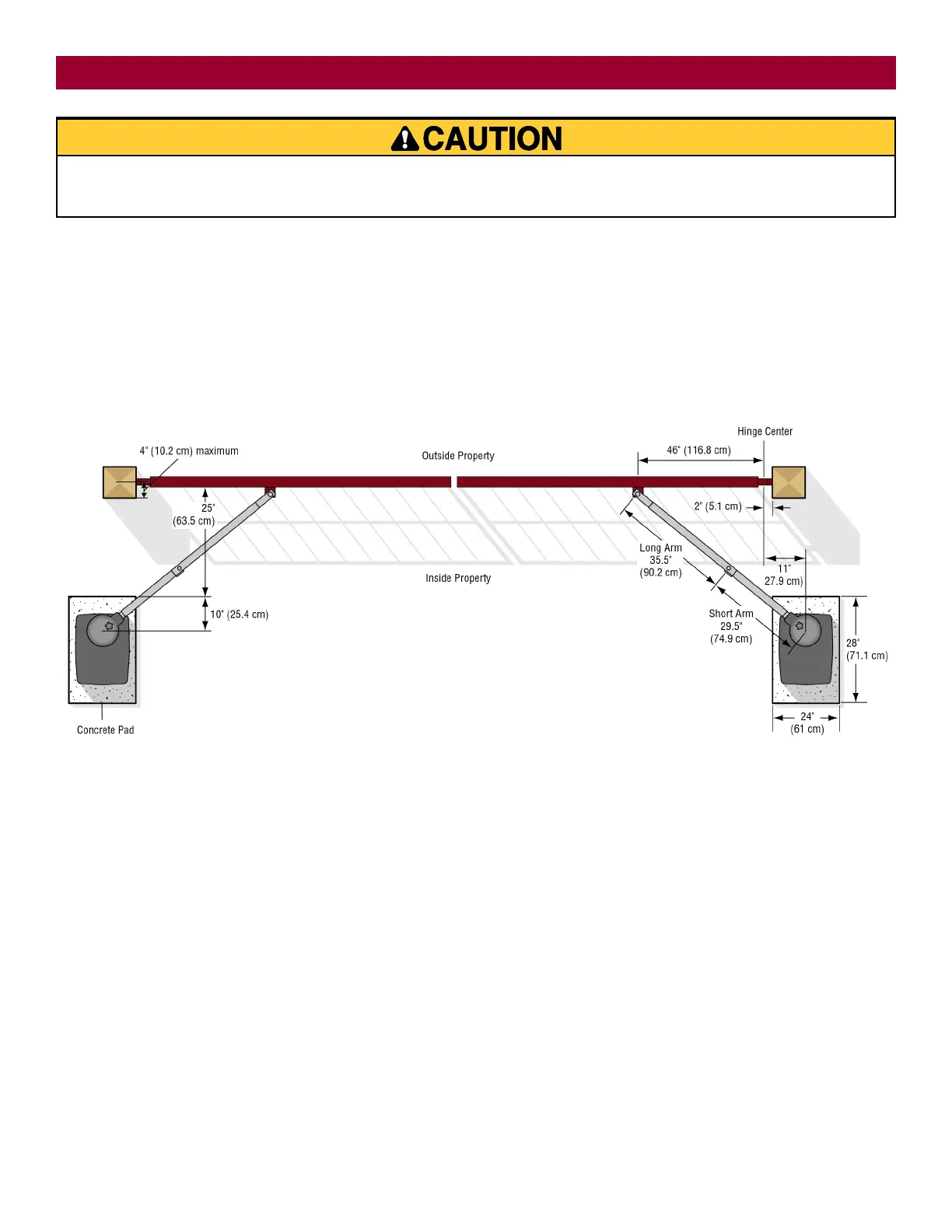

The illustration below shows the recommended dimensions for a standard installation. If these dimensions are not applicable for your installation refer to
the chart on the following page for alternate dimensions.
Standard Installation
Refer to the illustration to determine the measurements and location of the concrete pad.
NOTE: There should only be a maximum of 4" (10.2 cm) from the center of the hinge to the edge of the post or column. If the distance is greater than 4"
(10.2 cm) entrapment protection for this area is required.
INSTALLATION
To Next Page
