9

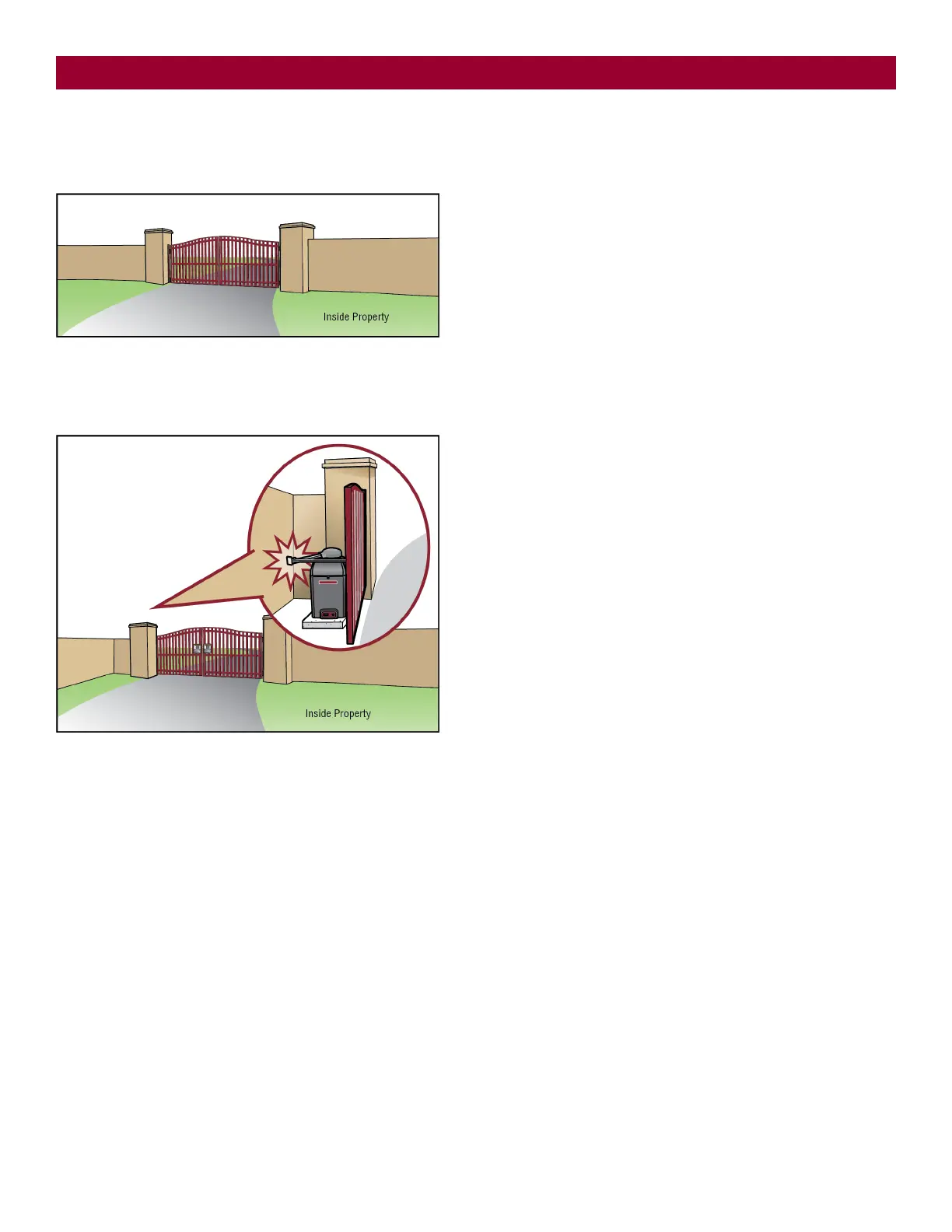

Types of Installations
Standard Installation
The illustration is an example of a standard installation.
Compact Installation
The illustration is an example of a compact installation. If the operator arm will hit an obstruction when the gate is in the open position, refer to
LiftMaster.com for compact installation instructions. Entrapment protection devices must be employed in this area.
INSTALLATION
