7

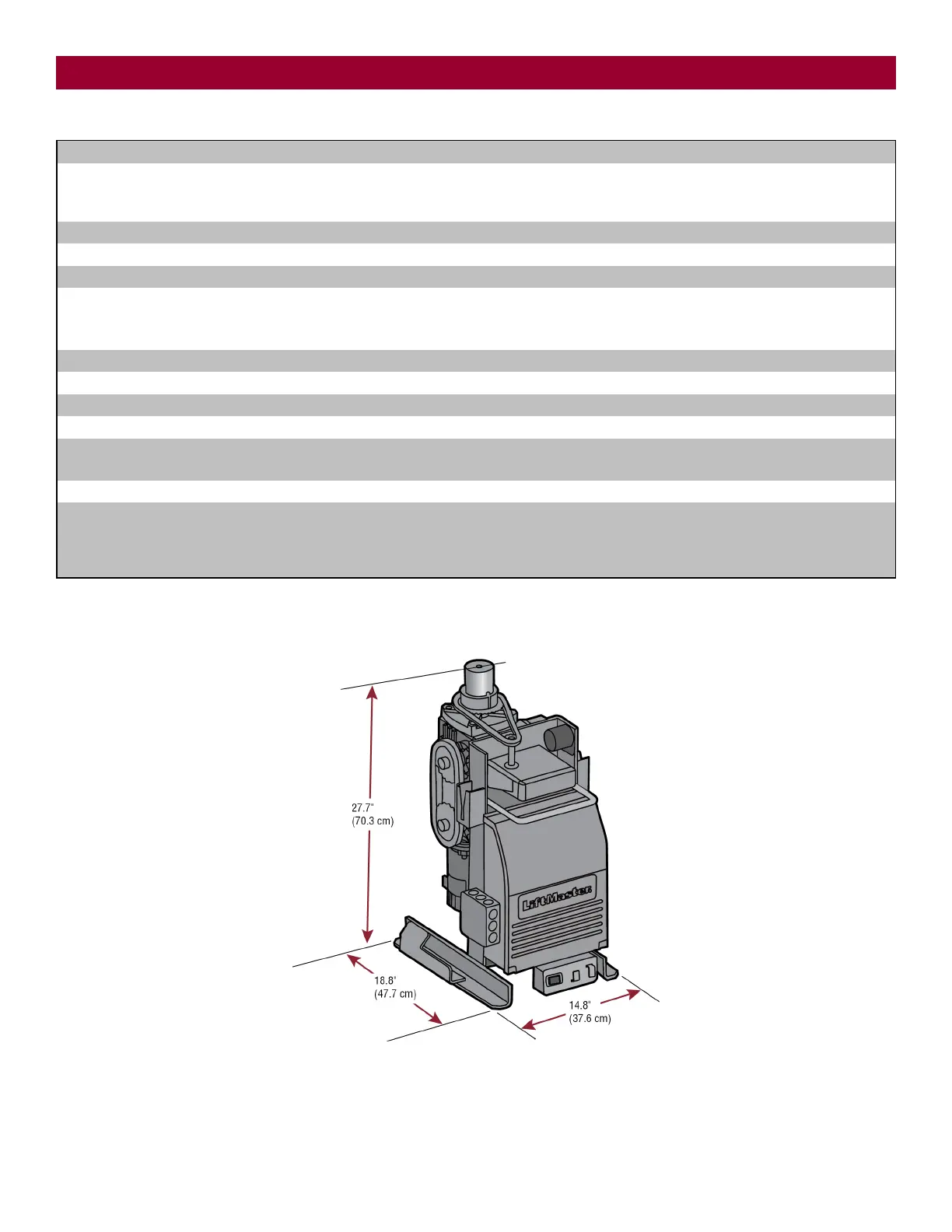

Operator Specifications
Usage Classification
Class I, II, III, & IV
Main AC Supply 120 Vac, 4 Amps (10 Amps including Accessory Outlets) OR 240 Vac, 2 Amps
When Optional Transformer Kit Model 3PHCONV is installed in the field, operator is rated
208/240/480/575 VAC, 4.8/4.2/2.1/1.7 A, 60 Hz, 1 PH
System Operating Voltage
24 Vdc Transformer Run / Battery Backup
Accessory Power
24 Vdc, 500mA max. for ON + SW (switched)
Solar Power Max
24 Vdc at 60 watts max.
Maximum Gate Weight/Length
1200 lbs. (544.3 kg)/12 foot (3.7 m)
800 lbs. (362.9 kg)/16 foot (4.9 m)
600 lbs. (272.2 kg)/18 foot (5.5 m)
90 Degree Travel Time*
20 seconds
Maximum Travel Range*
115 degrees
Maximum Daily Cycle Rate
Continuous
Maximum Duty Cycle
Continuous
Operating Temperature
Without Heater: -20°C to 60°C (-4°F to 140°F)
With Optional Heater: -40°C to 60°C (-40°F to 140°F)
Expansion Board
Provided
External Entrapment Protection Device Inputs (non-contact
and/or contact)
Main board - up to 2 close entrapment protection devices and 1 open entrapment
protection device.
Expansion board - up to 3 entrapment protection devices configurable to either close or
open and up to 4 edge sensors using wireless edge sensor kit model LMWEKITU .
*Travel time and range are affected by A and B mounting dimensions, see INSTALLATION.
INTRODUCTION
