19

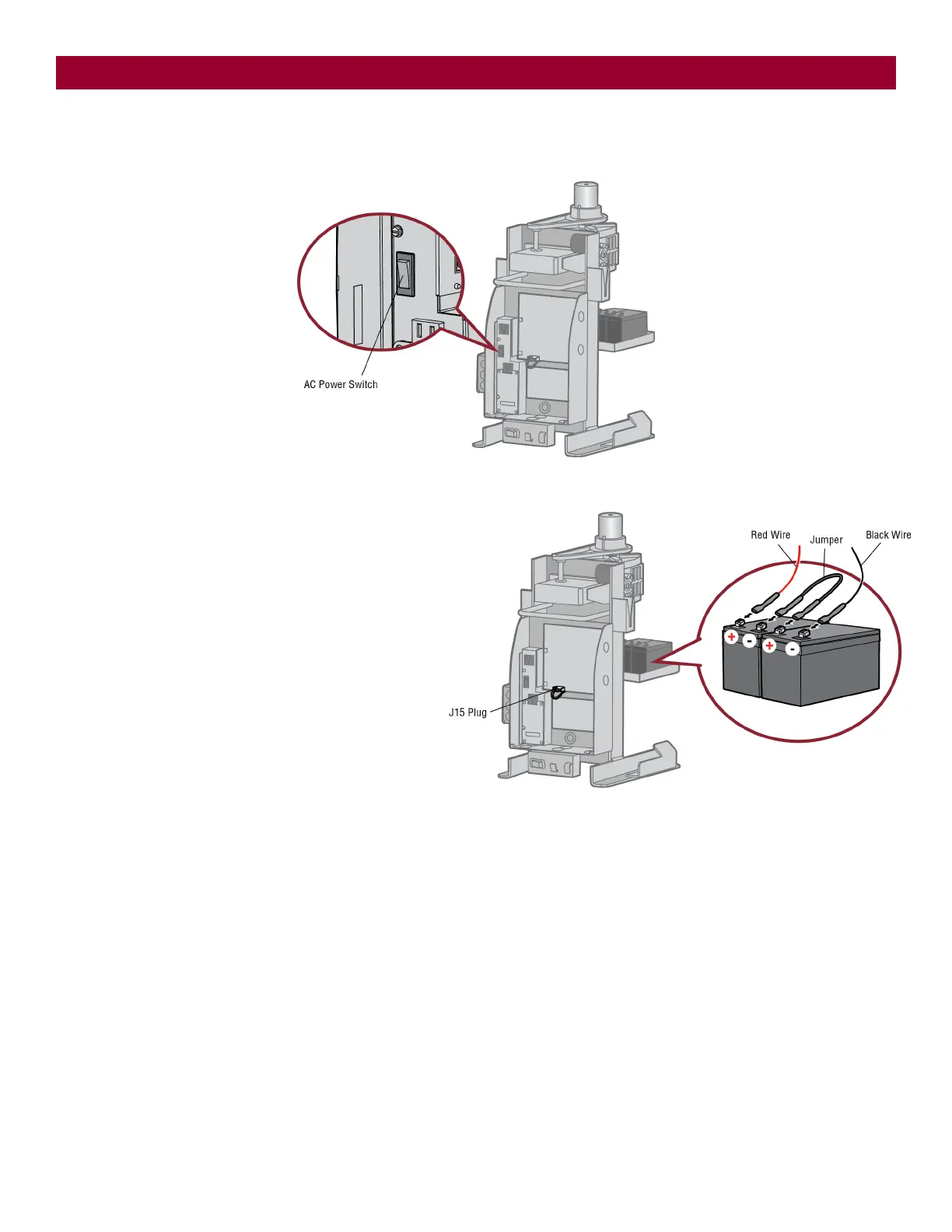

AC power switch
The AC Power switch on the operator will turn the incoming 120/240 Vac power ON or OFF. The operator's AC Power switch ONLY turns off AC power to
the control board and DOES NOT turn off battery power.
Step 9 Connect Batteries
7AH battery
The batteries are charged in the circuit by the integrated transformer. The
batteries are for battery backup.
1. Turn OFF AC power to the operator.
2. Unplug the J15 plug labeled BATT on the control board by
squeezing the plug and pulling it from the control board. This
disconnects the ac/dc power to the control board.
3. Connect a jumper between the positive (+) terminal of one battery to
the negative terminal (-) of the other battery.
4. Connect the red wire from the J15 plug to the positive (+) terminal
of the battery.
5. Connect the black wire from the J15 plug to the negative (-) terminal
of the battery.
6. Plug the J15 plug back into the control board. This will power up
the control board. NOTE: You may see a small spark when plugging
the J15 plug into the board.
7. Turn ON AC power to the operator.
8. Turn ON the AC power switch on the operator.
INSTALLATION
