STEP 14 Wire the Safety Reversing Sensors
If your garage alreadyhas wires installed for the safetyreversing sensors, proceed to page 25.
HARDWARE
Ins
ulated
Staple
(Not Shown)
OPTION A
INSTALLATION WITHOUTPRE-WIRING

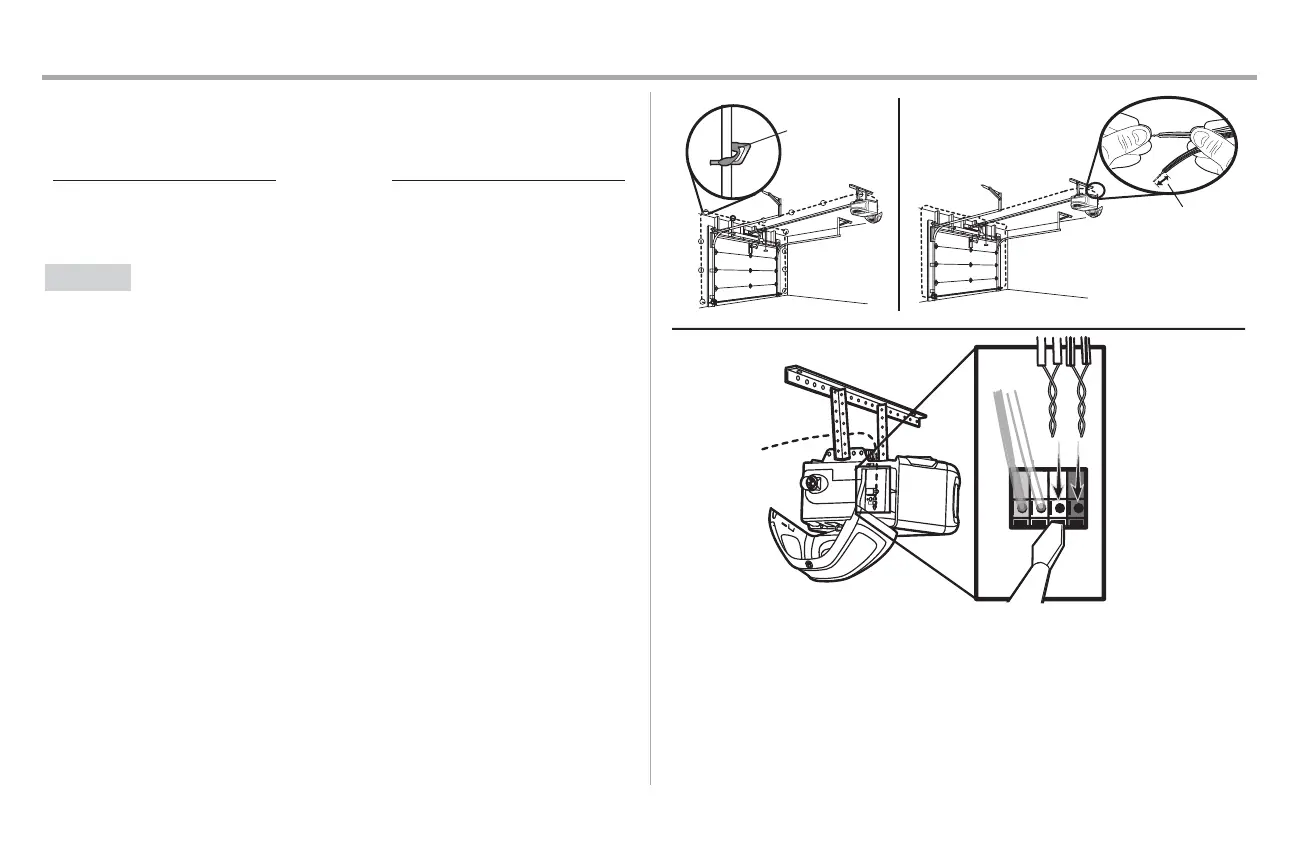

1. Run the wire from both sensors to the garage door opener. Attach the wire to the wall and
ceiling with the staples.
2. Strip 7/16 inch (11 mm) ofinsulation from each setofwires.Separate the wires. Twist the white
wires together. Twistthe white/black wires together.
3. Insert the white wires into the white terminal on the garage door opener. Insert the white/black
wires into the greyterminal on the garage door opener. To insert or remove the wires from the
terminal, push in the tab with a screwdriver tip.
Staple
7/16" (11 mm)
WHITE
WHITE
GREY
RED
1
2
3
To Next Page
