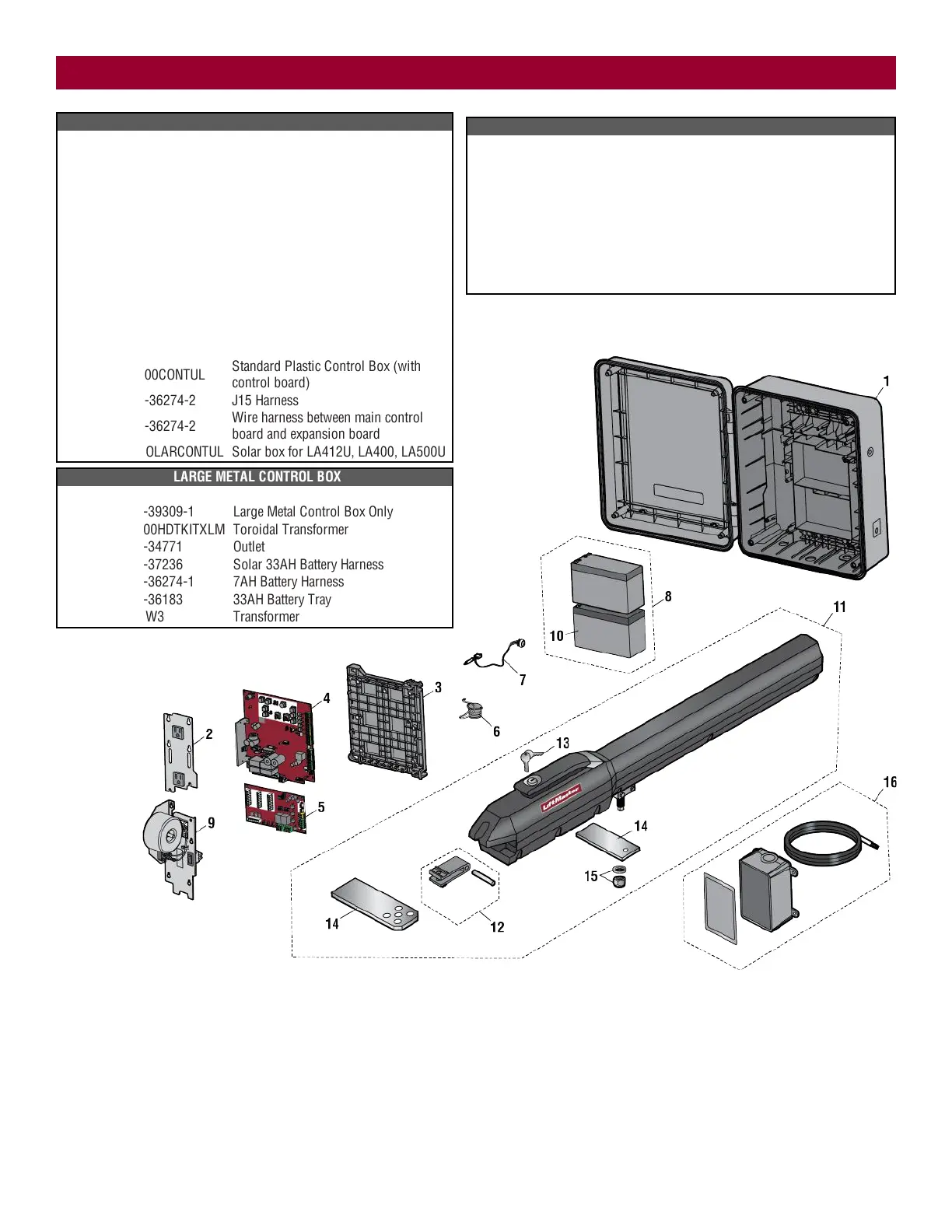

STANDARD CONTROL BOX
ITEM PART NUMBER DESCRIPTION
1 K74-39307-1 Standard Plastic Control Box Only
2 K76-36296-1 Outlet
3 K75-36635 Control Board Bracket
4 K1D8388-1CC Control Board
5 K1D8387-1CC Expansion Board
6 K94-36411 Piezo Alarm
7 K94-36408-1 Reset Switch with Product ID
8 K74-36596 Batteries (2) with jumper
9 LA500HDTKITSTD Toroidal Transformer
10 29-NP712 Single Battery
NOT SHOWN
K77-36541 Antenna
LA500CONTUL
Standard Plastic Control Box (with
control board)
K94-36274-2 J15 Harness
K94-36274-2
Wire harness between main control
board and expansion board
XLSOLARCONTUL Solar box for LA412U, LA400, LA500U
LARGE METAL CONTROL BOX
NOT SHOWN
K74-39309-1 Large Metal Control Box Only
LA500HDTKITXLM Toroidal Transformer
K76-34771 Outlet
K94-37236 Solar 33AH Battery Harness
K94-36274-1 7AH Battery Harness
K10-36183 33AH Battery Tray
APOW3 Transformer
GATE OPERATOR ARM
ITEM PART NUMBER DESCRIPTION
11 LA500DC Primary Arm
12 KSWG-0623 Rear Connector with Pin
13 41ASWG-0119 Release Keys
14 Q230 Steel Bracket Mounting Plates
15 Q232 Bottom Washer and Nut
16 K94-36591 Junction Box with Cable
NOT SHOWN
K77-36389 Hardware Bag
REPAIR PARTS
