Chamberlain LA500UL - Large Metal Control Box Diagram

53
Large Metal Control Box
To protect against fire and
electrocution:
l DISCONNECT power (AC or
solar and battery) BEFORE
installing or servicing
operator.
For continued protection against
fire:
l Replace ONLY with fuse of
same type and rating.

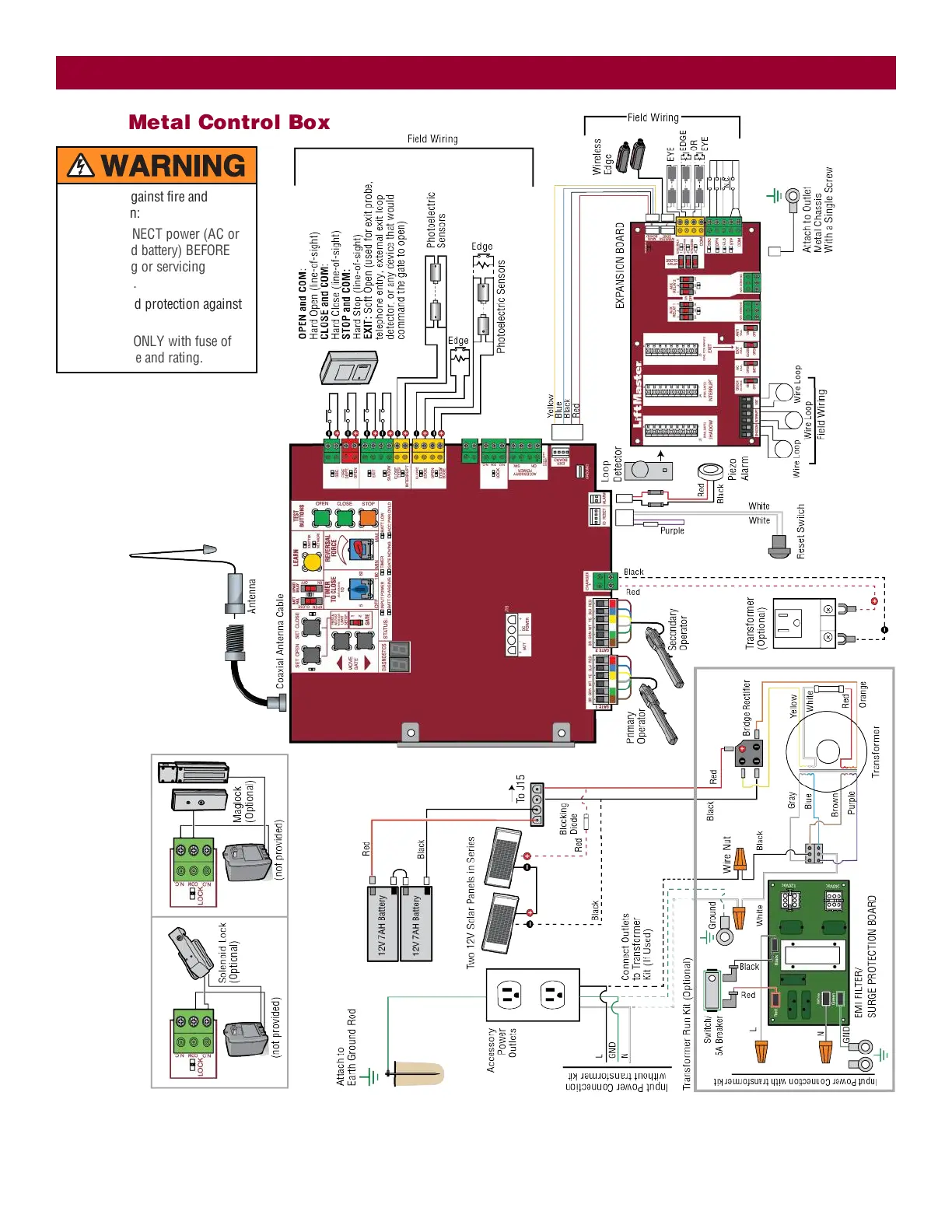

WIRING DIAGRAM
