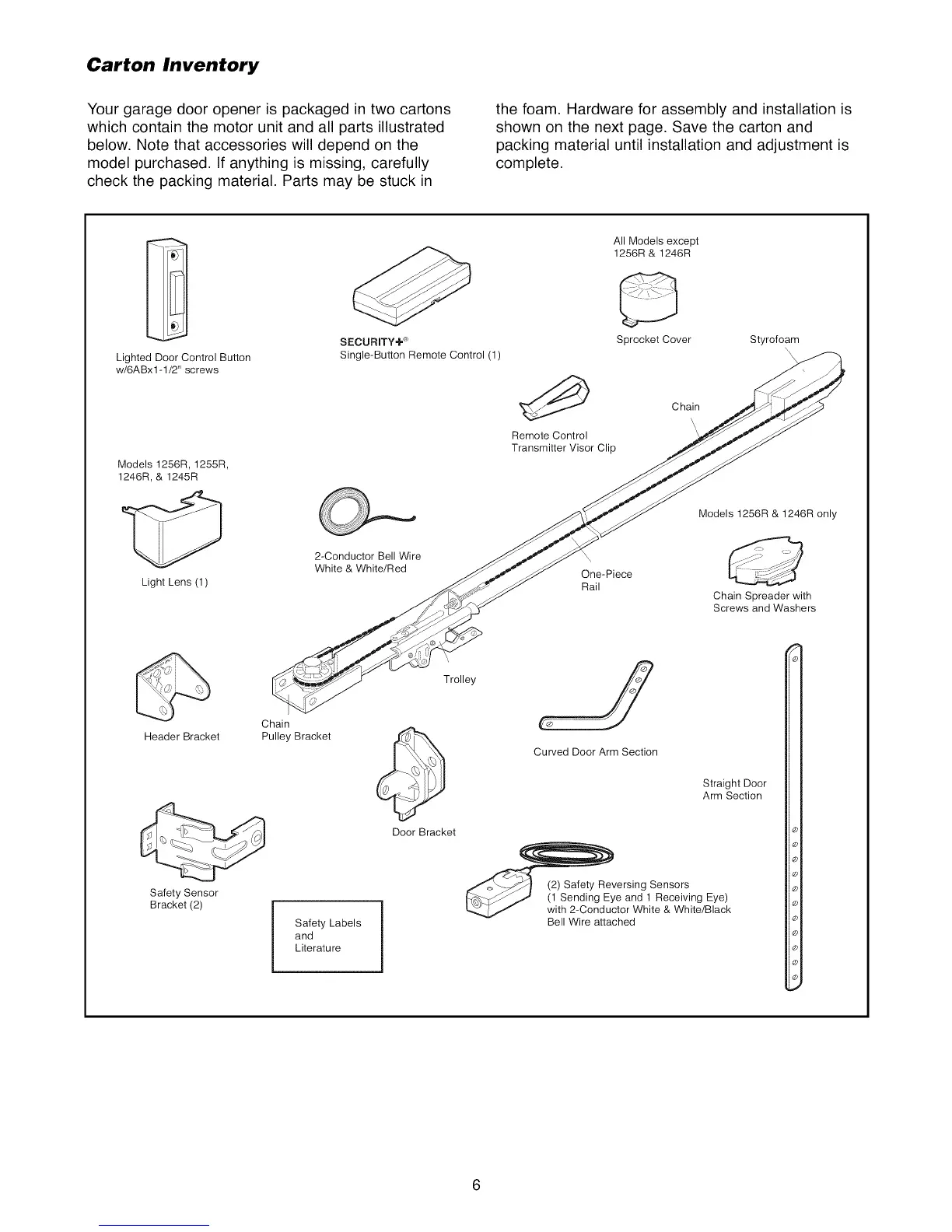

Carton Inventory
Your garage door opener is packaged in two cartons
which contain the motor unit and all parts illustrated
below. Note that accessories will depend on the
model purchased. If anything is missing, carefully
check the packing material. Parts may be stuck in
the foam. Hardware for assembly and installation is
shown on the next page. Save the carton and
packing material until installation and adjustment is
complete.
@
Lighted Door Control Button
w/6ABx 1- 1/2" screws
Models 1256R, 1255R,
1246R, & 1245R
Light Lens (1)
SECURITY÷ ®
Single-Button Remote Control (1)
2-Conductor Bell Wire
White & White/Red
All Models except
1256R & 1246R
Sprocket Cover Styrofoam
Remote Control
Transmitter Visor Clip
Chain
\
\
\
One-Piece
Rail
Models 1256R & 1246R only
Chain Spreader with
Screws and Washers
Header Bracket
Safety Sensor
Bracket (2)
Chain
Pulley Bracket
Safety Labels
and
Literature
\
Trolley
Door Bracket
Curved Door Arm Section
Straight Door
Arm Section
ersing Sensors
e and 1 Receiving Eye)
tor White & White/Black
Bell Wire attached
@
@
o
@
@
@
o
o
@
@
Q
To Next Page
