Chamberlain LiftMaster SECURITY+ 3585S - Installation Step 3; Attach Rail to Header Bracket

10
Rail
Garage
Door
Belt Pulley
Bracket
Belt Pulley
Bracket
Ring
Fastener
Header
Bracket
Header
Bracket
Clevis Pin
5/16"x2-3/4"
Header Wall
Temporary
Support
Clevis Pin
5/16"x2-3/4"
Ring Fastener

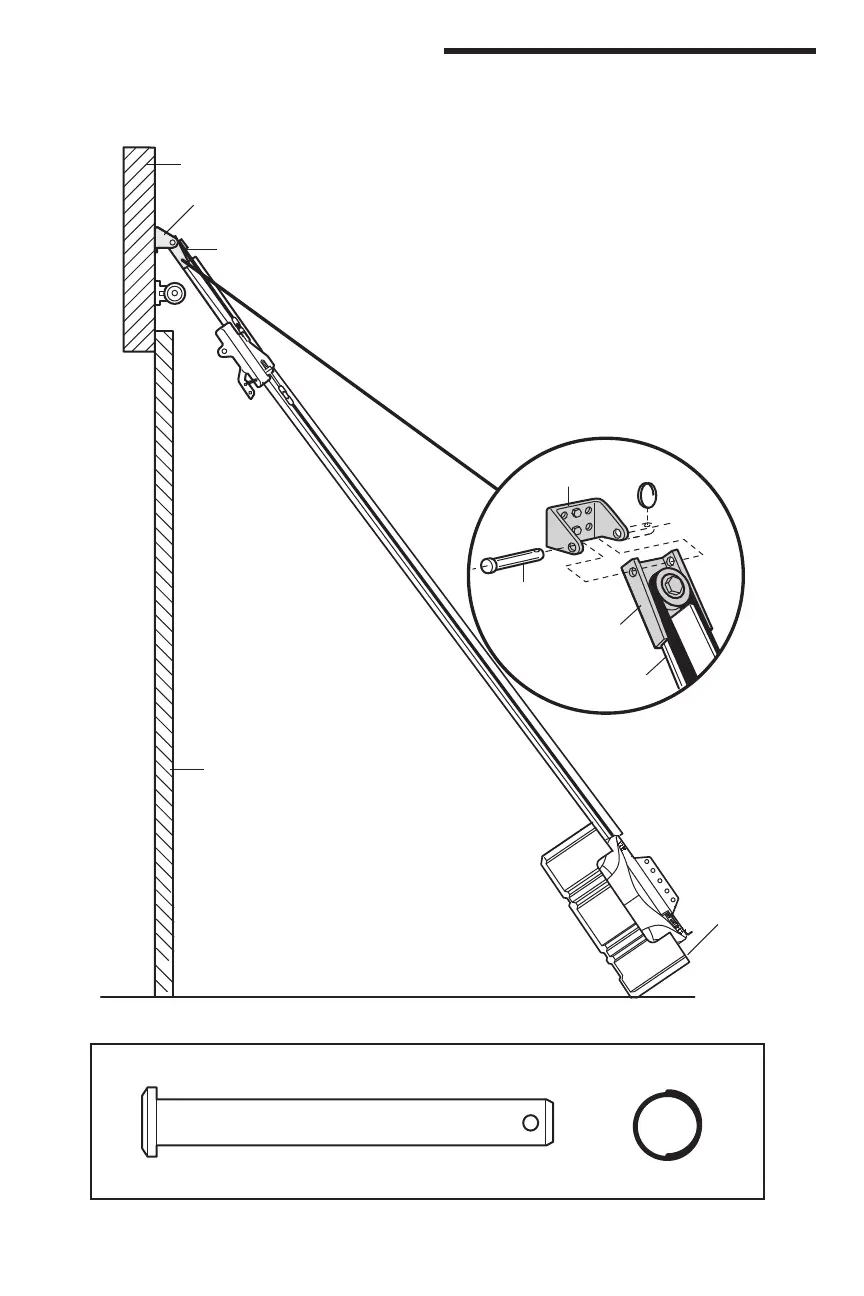

INSTALLATION STEP 3
Attach the Rail to the Header Bracket
• Position the opener on the garage fl oor below the
header bracket. Use packing material as a protective
base. NOTE: If the door spring is in the way you’ll need
help. Have someone hold the opener securely on a
temporary support to allow the rail to clear the spring.
• Position the rail bracket against the header bracket.
• Align the bracket holes and join with a clevis pin
as shown.
• Insert a ring fastener to secure.
HARDWARE SHOWN ACTUAL SIZE
