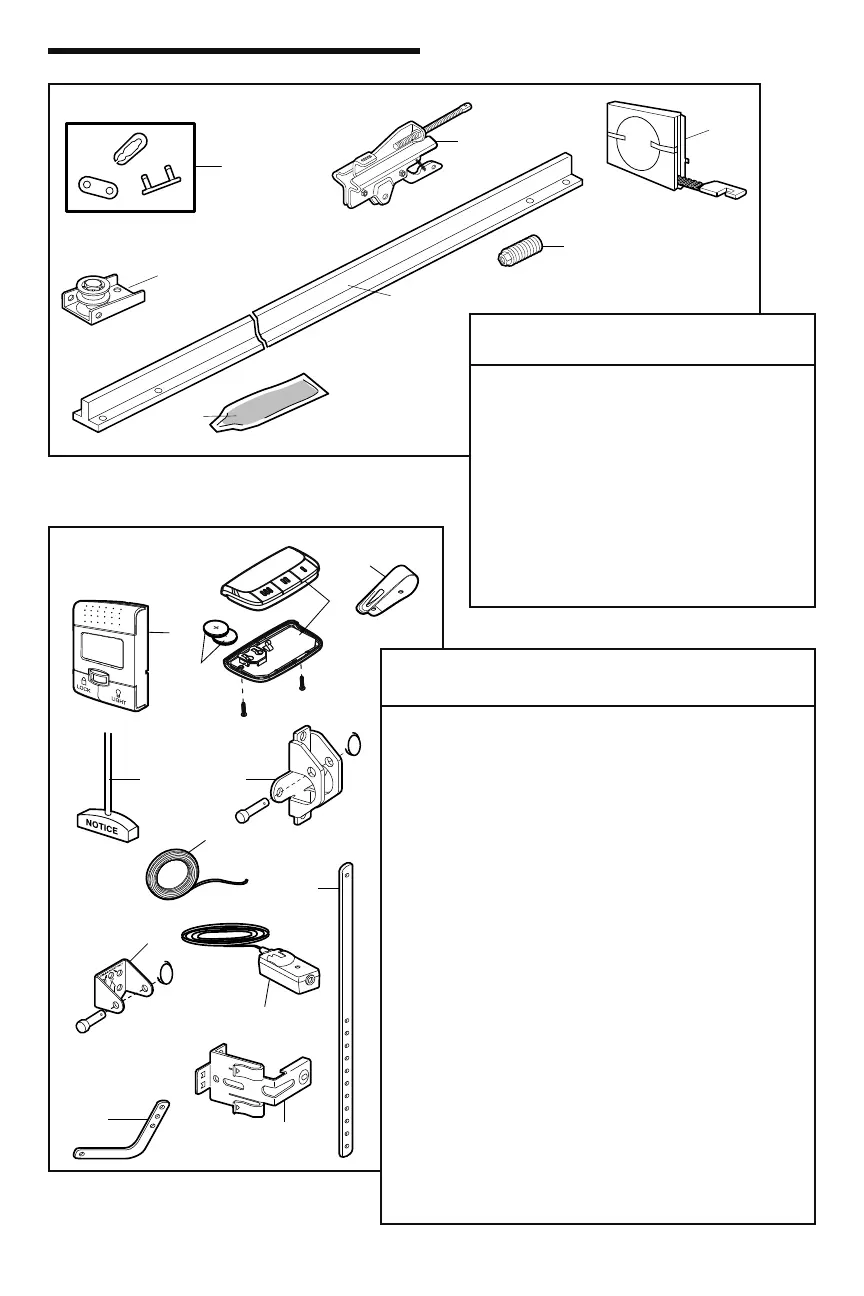

Rail Assembly Parts
REPAIR PARTS
KEY PART
NO. NO. DESCRIPTION
1 4A1008 Master link kit
2 41B5424 Belt pulley bracket
3 41B3869-3A Complete trolley assembly
4 2777BD One-piece T-rail 7' (2 m)
2778BD Complete Rail 8' (2.4 m)
2770BD Complete Rail 10' (3 m)
5 41A5434-11 Full belt assembly
6 41B4103 Tensioner assembly
7 83A11-2 Rail grease
Installation Parts
KEY PART
NO. NO. DESCRIPTION
1 398LM Smart Control Panel
®
2 895MAX 3-Button remote control
3 10A19 3V2016 Lithium battery: LED and opener
4 29C151 Remote control visor clip
5 41A2828 Emergency release rope and handle
assembly
6 41B4494-1 2-Conductor bell wire, white & white/red
7 41A5047-1 Door bracket w/clevis pin & fastener
8 41A4353-1 Header bracket w/clevis pin & fastener
9 41A5034 Safety sensor kit (receiving and sending
eyes) with 3' (.9 m) 2-conductor bell wire
10 178B34 Straight door arm section
11 178B35 Curved door arm section
12 41A5266-1 Safety sensor brackets (2)
NOT SHOWN
101D173 Push bar for door control
41A2770-12 Installation hardware bag (includes
hardware listed on page 5).
114A4257 Owner’s manual
114A4257SP Owner’s manual - Spanish
1
1
2
2
4
7
8
10
9
11
12
3
5
6
3
4
5
6
7
