17
Installation

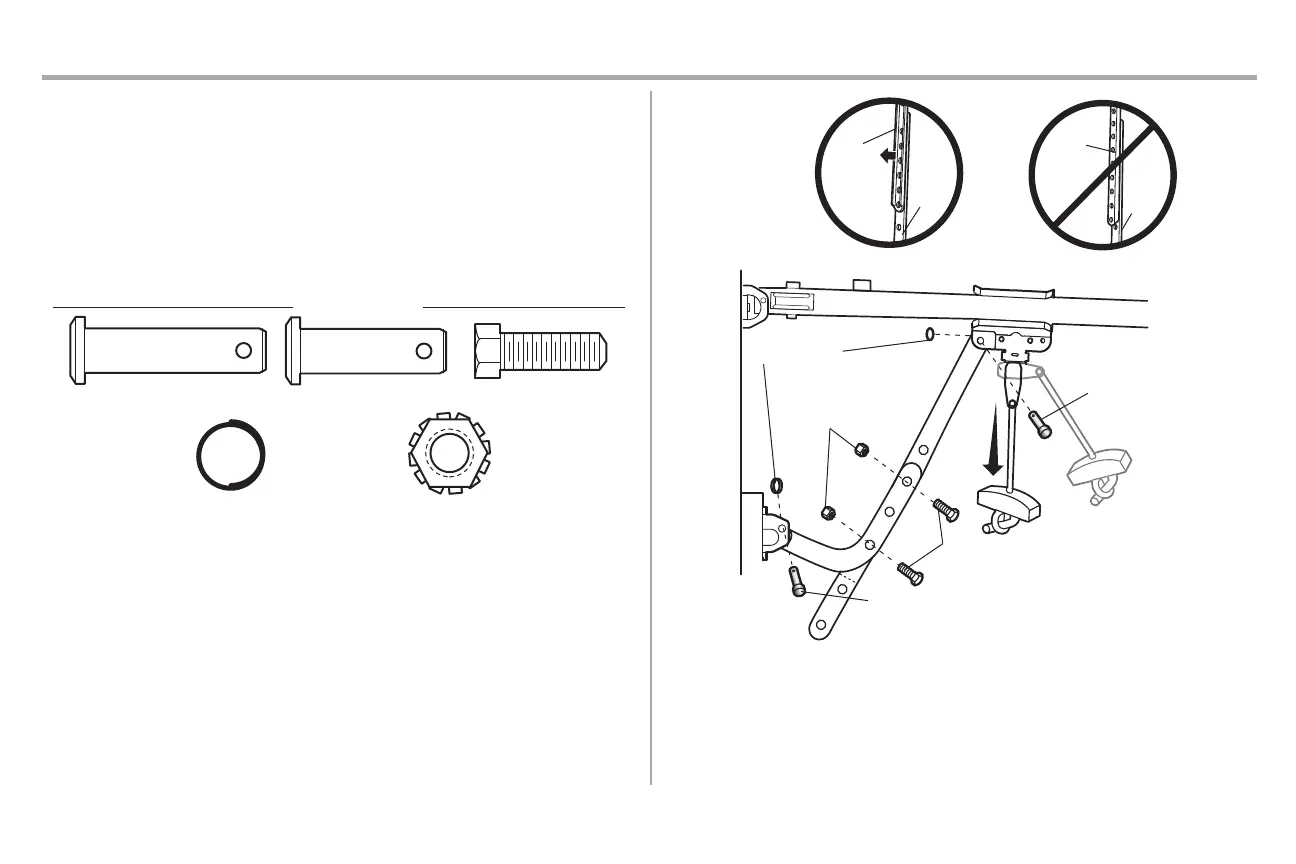

STEP 9 Connect the door arm to the trolley
IMPORTANT: The groove on the straight door arm MUSTface away from the curved door arm.
1. Close the door. Disconnectthe trolley by pulling the emergencyrelease handle.
2. Attach the straight door arm to the outer trolley using the clevis pin. Secure with the ring fastener.
3. Attach the curved door armto the door bracket using the clevispin. Secure with the ring fastener.
4. Bring arm sections together. Find two pairs ofholesthat line up and join sections.Select holes as
far apart as possible to increase door arm rigidity and attach using the bolts and nuts.
5. Pull the emergencyrelease handle toward the garage door opener until the trolley release arm
is horizontal.The trolley will re-engage automatically when the garage door opener is activated.
HARDWARE
Clevis Pin 5/16"x1" Clevis Pin 5/16"x1-1/4"
Ring Fastener
Hex Bolt 1/4"-20x3/4"
Lock Nut 1/4"-20
Straight
Door Arm
Curved
Door
Arm
(Groove
facing
out)
CORRECT
Straight
Door
Arm
Curved
Door
Arm
INCORRECT
Lock Nut
1/4"-20
Hex Bolt 1/4"-20x3/4"
Clevis Pin 5/16"x1-1/4"
Ring Fastener
Clevis Pin
5/16"x1"
To Next Page
