Assembly

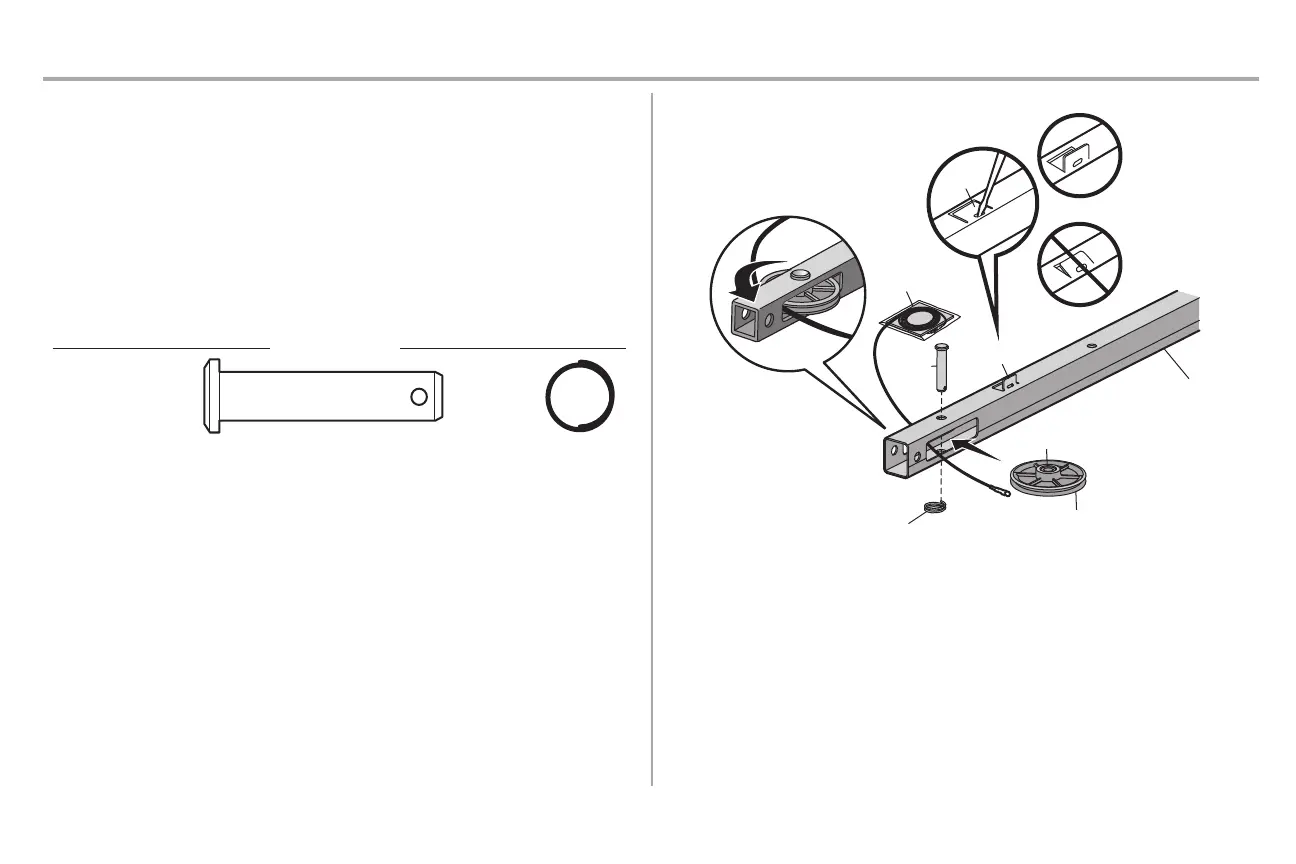

STEP 3 Install the pulley
1. Lay the chain/cable beside the rail,as shown. Grasp the end with the cable loop and pass
approximately 12" (30 cm) ofcable through the window.Allowit to hang until Assembly Step 4.
2. Remove the tape from the idler pulley.The inside center should be pre-greased. Ifdry,regrease
to ensure proper operation.
3. Place the idler pulley into the window as shown.
4. Secure idler pulley with clevispin and ring fastener.
5. Rotate the pulley to be sure it spins freely.
6. Locate the rail tab. The rail tab is near the idler pulley on the front rail section. Use a flat head
screwdriver and liftthe rail tab until the tab is vertical (90º).
HARDWARE
Clevis Pin 5/16"x1-1/2"
Ring Fastener
Rail
Idler Pulley
Grease Inside Pulley
Cevis Pin
5/16"x
1-1/2"
Ring Fastener
Rail Tab
Chain/Cable
CORRECT
INCORRECT
