Chamberlain Security+ 3112E - Page 8

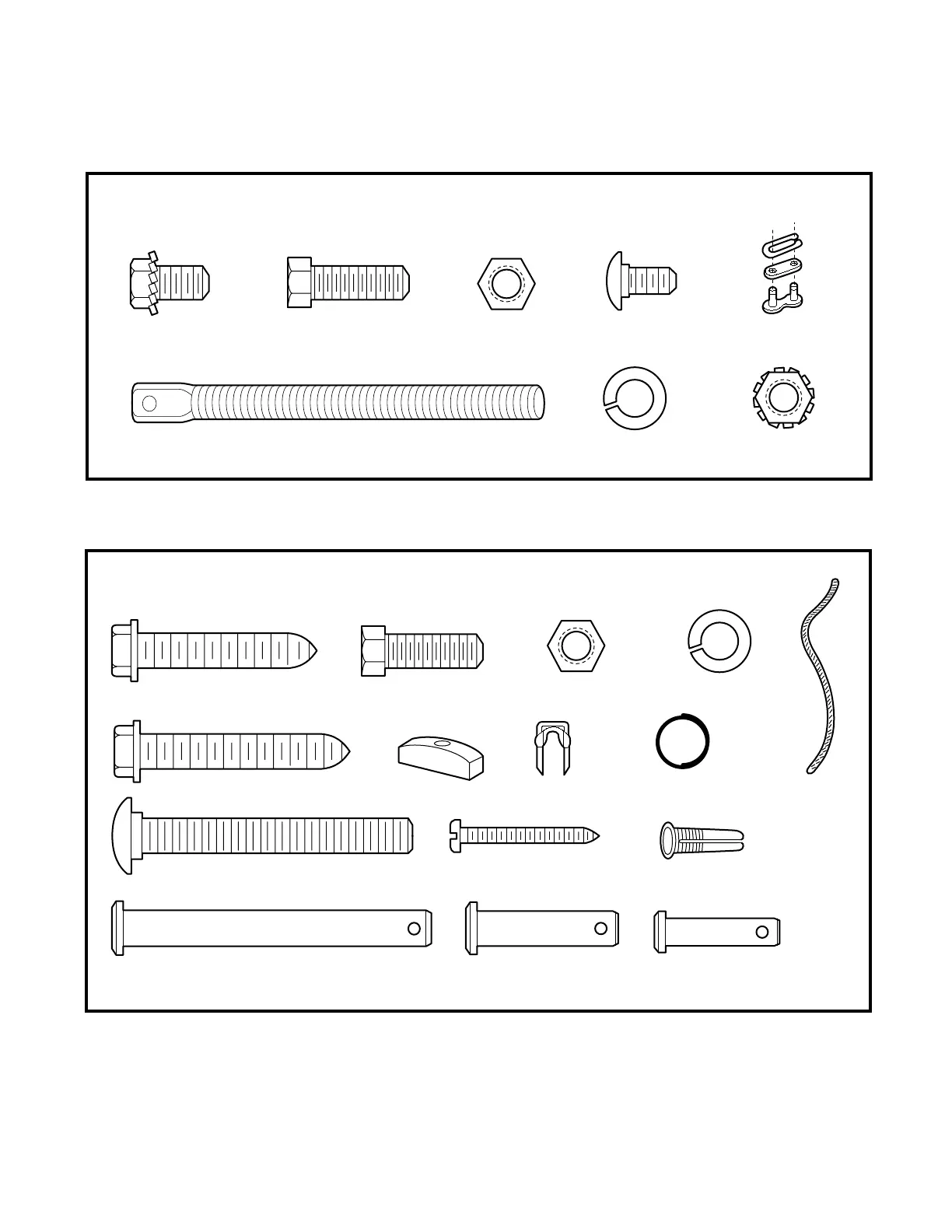

Hardware Inventory
Separate all hardware and group as shown below for the assembly and installation procedures.
8
Hex Bolt
5/16"-18x7/8" (4)
Screw
6ABx1-1/4" (2)
Lock Washer
5/16" (4)
Nut
5/16"-18 (6)
Clevis Pin
5/16"x2-3/4" (1)
NOTICE
Handle
Insulated
Staples (10)
Assembly Hardware 41A2848
Installation Hardware 41A3475-18
Dry Wall Anchors (2)
Rope
Lock Nut
1/4"-20x1/2" (12)
Nut
5/16"-18 (5)
Washered Bolt
5/16"-18x1/2" (2)
(mounted in opener)
Carriage Bolt
5/16"-18x2-1/2" (2)
Carriage Bolt
1/4"-20x1/2" (12)
Hex Bolt
5/16"-18x7/8" (3)
Master Link (2)
Ring Fastener (3)
Trolley
Threaded Shaft (1)
Lock Washer
5/16" (6)
Lag Screw
5/16"-9x1-5/8" (2)
Lag Screw
5/16"-18x1-7/8" (2)
Clevis Pin
5/16"x1" (1)
Clevis Pin
5/16"x1-1/4" (1)
