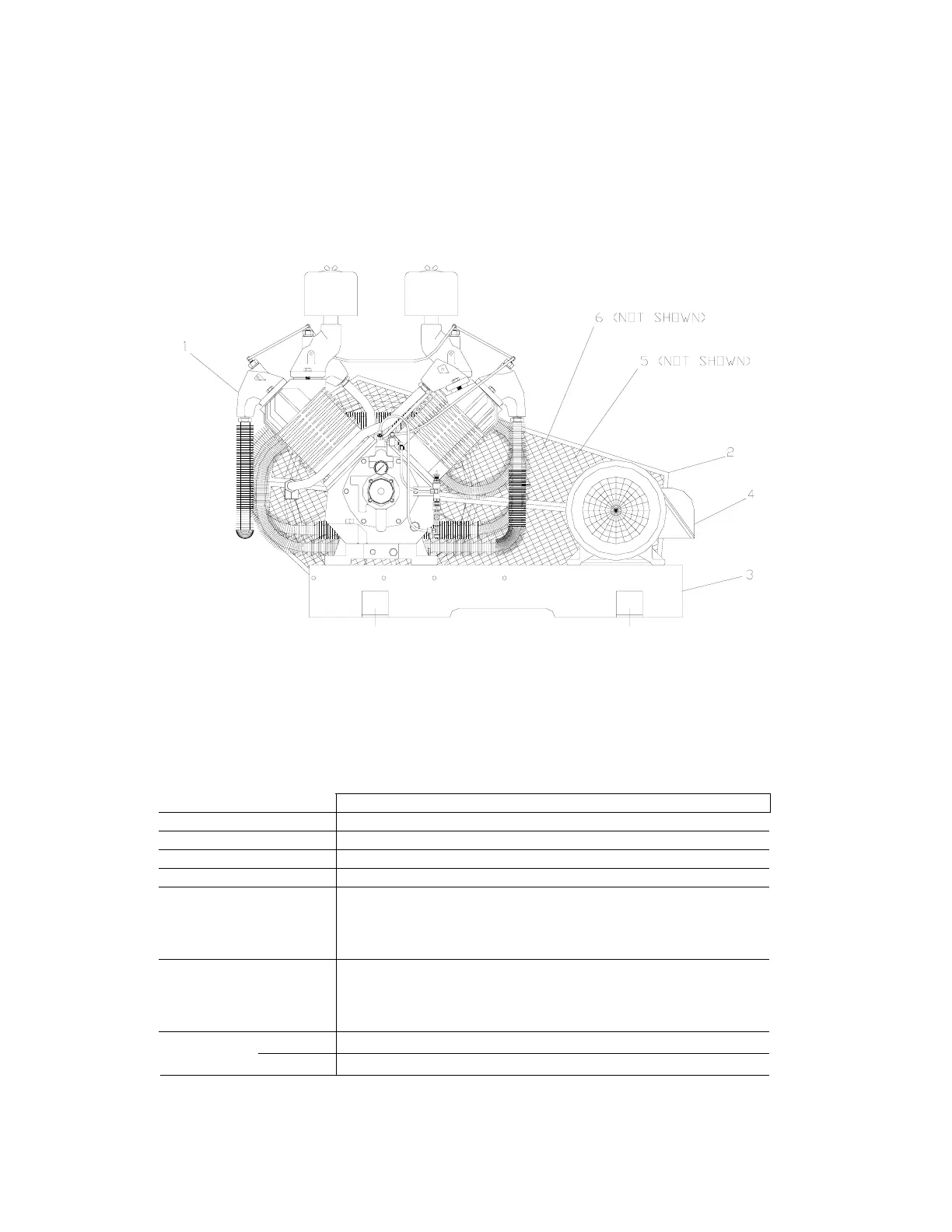

UNIT REPAIR PARTS ILLUSTRATION
MODELS: BPL-20, BPL-25, & BPL-30
REPAIR PARTS LIST
MODEL
BPL-20 BPL-25 BPL-30
1 Pump PL70A PL70A PL70A
2 Belt Guard Z674 Z674 Z674
3 Base Plate P03538C P03538C P03538C
4 Motor 20 HP 25 HP 30 HP
P05634A P03710A
Pulley
P09311B
Pulley
P05622A P05621A
5 Pulley
175 PSIG
Bushing Bushing
P07813A P05634A P09311B
Pulley Pulley
P12157A P05621A
5 Pulley
250 PSIG
Bushing Bushing
175 PSIG
B100 (3) B100 (3) B103 (3)
6 Belts
250 PSIG
B100 (3) B100 (3) B100 (3)
C372-A
(Ref. Drawing)
