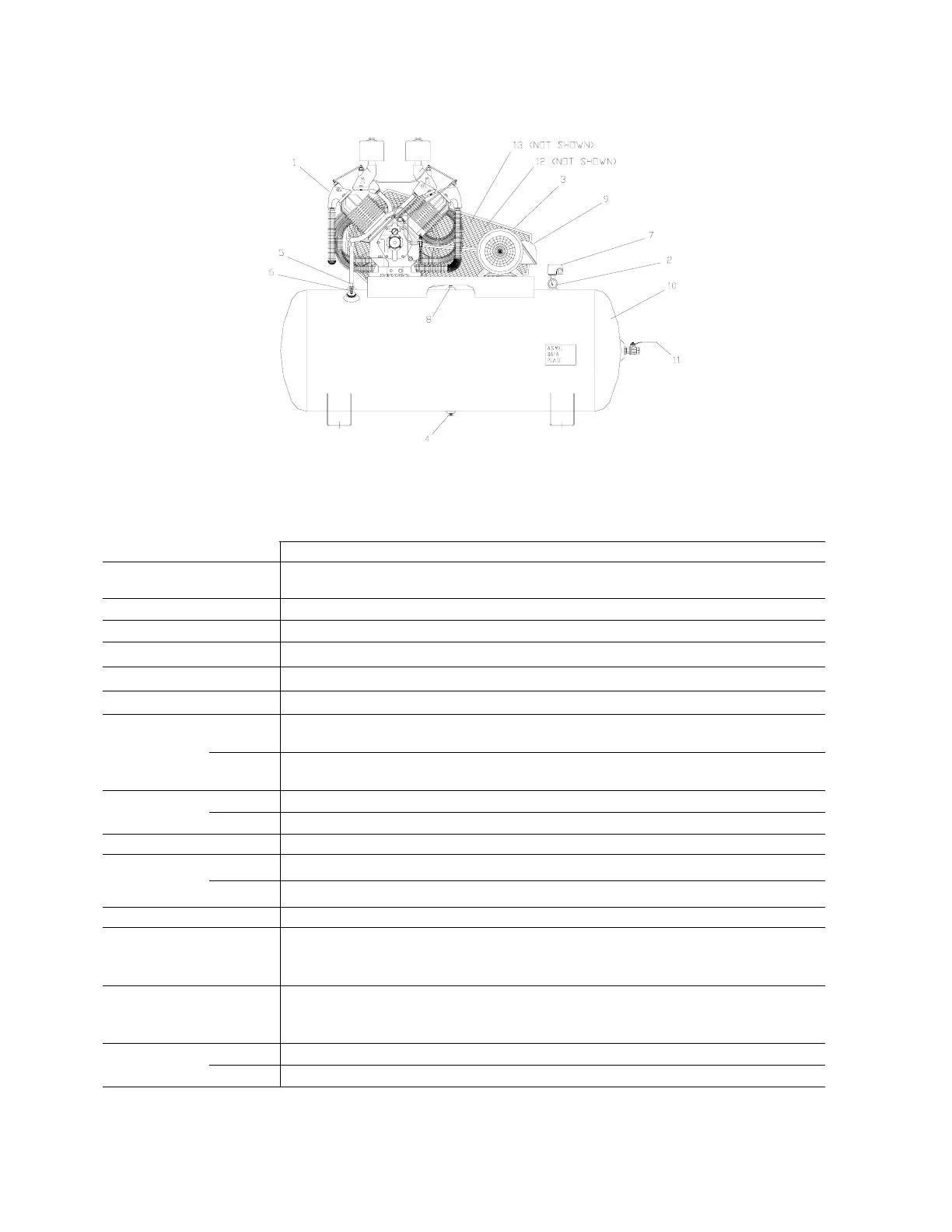

UNIT REPAIR PARTS ILLUSTRATION
MODELS: HPL20-12, HPL20-25, HPL25-12, HPL25-25, HPL30-12, & HPL30-25
REPAIR PARTS LIST
MODEL
HPL20-12 HPL20-25 HPL25-12 HPL25-25 HPL30-12 HPL30-25
1 Pump PL70A PL70A PL70A PL70A PL70A PL70A
2 Pressure Gauge M519C M519C M519C M519C M519C M519C
3 Belt Guard Z674 Z674 Z674 Z674 Z674 Z674
4 Drain Valve M2684 M2684 M2684 M2684 M2684 M2684
5 Check Valve P03590A P03590A P03590A P03590A P03590A P03590A
6 Bucket High Drain Z1542 Z1542 Z1542 Z1542 Z1542 Z1542
175 PSIG
P14202A P14202A P14202A P14202A P14202A P14202A
7
Pressure
Switch
250 PSIG
P07422A P07422A P07422A P07422A P07422A P07422A
175 PSIG
M2843 M2843 M2843 M2843 M2843 M2843
8
Pressure
Relief
Valve
250 PSIG
M2845 M2845 M2845 M2845 M2845 M2845
9 Motor 20 HP 20 HP 25 HP 25 HP 30 HP 30 HP
175 PSIG
P03665D P03564D P03665D P03564D P03665D P03564D
10 Tank
250 PSIG
P07433D P07432D P07433D P07432D P07433D P07432D
11 Isolation Valve M2688 M2688 M2688 M2688 M2688 M2688
P05634A P05634A P03710A P03710A
PULLEY PULLEY
P09311B P09311B
PULLEY PULLEY
P05622A P05622A P05621A P05621A
12 Pulley
175 PSIG
BUSHING BUSHING BUSHING BUSHING
P07813A P07813A P05634A P05634A
PULLEY PULLEY PULLEY PULLEY
P09311B P09311B
P12157A P12157A P05621A P05621A
12 Pulley
250 PSIG
BUSHING BUSHING BUSHING BUSHING
175 PSIG
B100 (3) B100 (3) B100 (3) B100 (3) B103 (3) B103 (3)
13 Belts
250 PSIG
B100 (3) B100 (3) B100 (3) B100 (3) B100 (3) B100 (3)
C371-
A
(Ref. Drawing)
