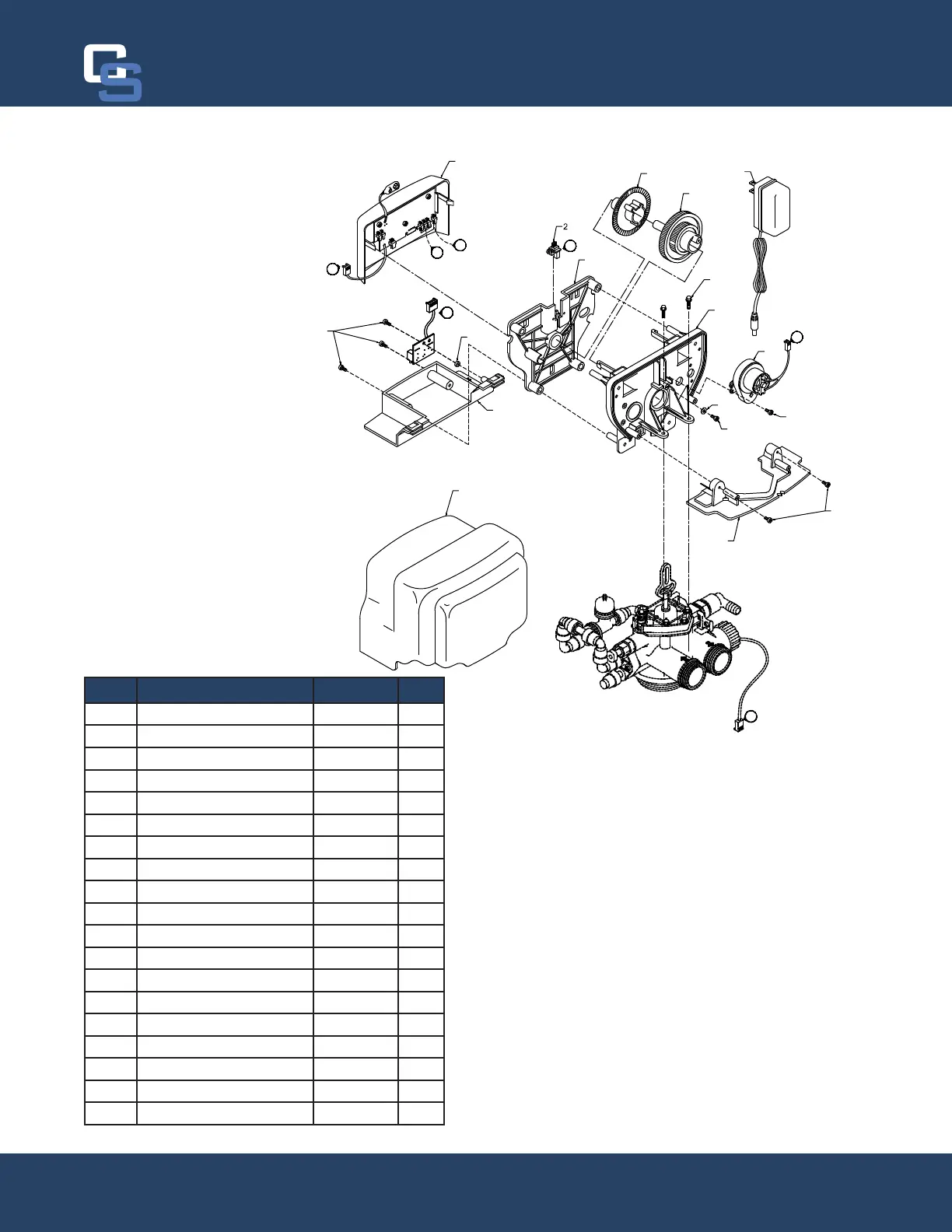

AERATION POWERHEAD
3
4
5
6
7
8
10
11
15
14
13
18
17
12
16
E
LETTERS IN DIAGRAM REPRESENT WIRING CONNECTIONS
1
E
P
M
PP
M
9
F
REF DESCRIPTION PART NO. QTY
0 Powerhead Assy. 20010X100 1
1 Circuit Board Assy. 20010X101 1
2 Encoder 20001X124 1
3 Front Plate 20001X004 1
4 Encoder Wheel 20001X007 1
5 Main Gear 21001X120 1
6 Power Supply 20001X125 1
7 Back Plate 20001X005 1
8 Lower Front Base For Cover 20111X002 1
9 Motor 20016X006 1
10 Lower Back Base For Cover 20111X004 1
11 Slide Cover 20111X003 1
12 Motor Screw SC2 4
13 Screw SC9 2
14 Screw SC10 3
15 Piston Screw 20001X007 1
16 Valve Hex Screw 20001X001 2
17 Circuit Board Washer 20111X014 1
18 Piston Washer 20001X002 1
