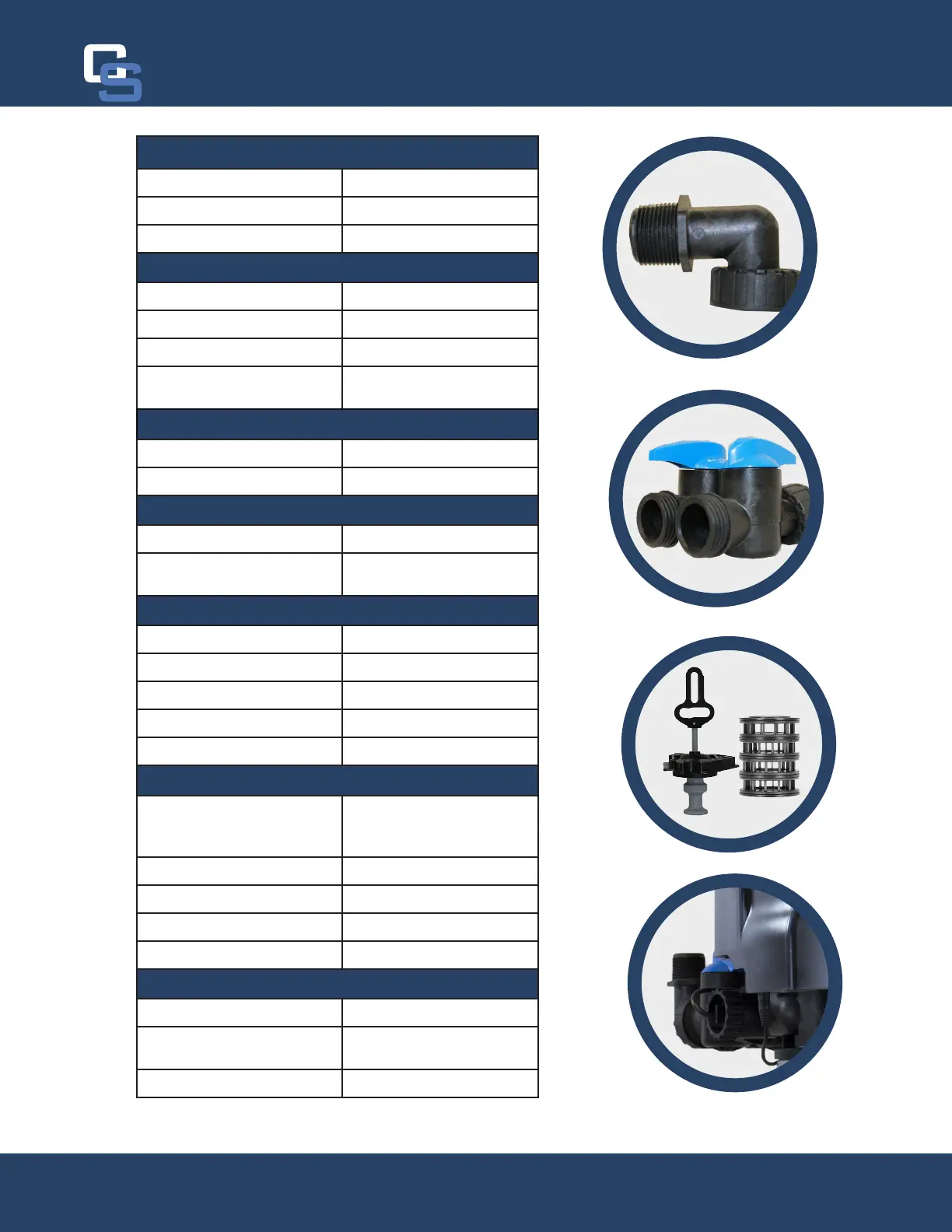

Chandler Systems D15 - Valves Specifications

A
4
Valve Control Board Connections
D15
Valve Specications
Valve Material Noryl®*
Inlet / Outlet 3/4” - 1”
Cycles 5
Flow Rates (50 psi inlet) - Valve Alone
Continuous (15 psi drop) 21 gpm
Peak (25 psi drop) 27 gpm
CV (flow at 1 psi drop) 5.4
Max. backwash (25 psi
drop)
17 GPM
Regeneration - Downow
Adjustable Cycles Yes
Time Available 99 minutes per cycle
Meter Information
Meter Accuracy Range .25 - 15 gpm +/- 5%
Meter Capacity Range (gal.) 1 - 9,999
Dimensions
Distributor Pilot 1.050” O.D.
Drain Line 1/2” NPT Q.C.
Brine Line 3/8”
Mounting Base 2-1/2” - 8 NPSM
Height From Top of Tank 7.7”
Typical Applications
Water Softener
6” - 16” Diameter up to 4
ft.
3
Capacity
Iron Filter 6” - 16” Diameter
Sediment Filter 6” - 16” Diameter
Carbon Filter 6” - 16” Diameter
Neutralizing Filter 6” - 16” Diameter
Additional Information
Electrical Rating
12 VDC
Pressure
Hydrostatic: 300 psi
Working: 20 - 125 psi
Temperature 34 ° - 110 ° F
*Noryl is a registered trademark of General Electric Company
Valve specications
Chandler Systems
4
