DISASSEMBLING AND INSTALLATION (Continued)
BENNI MINI

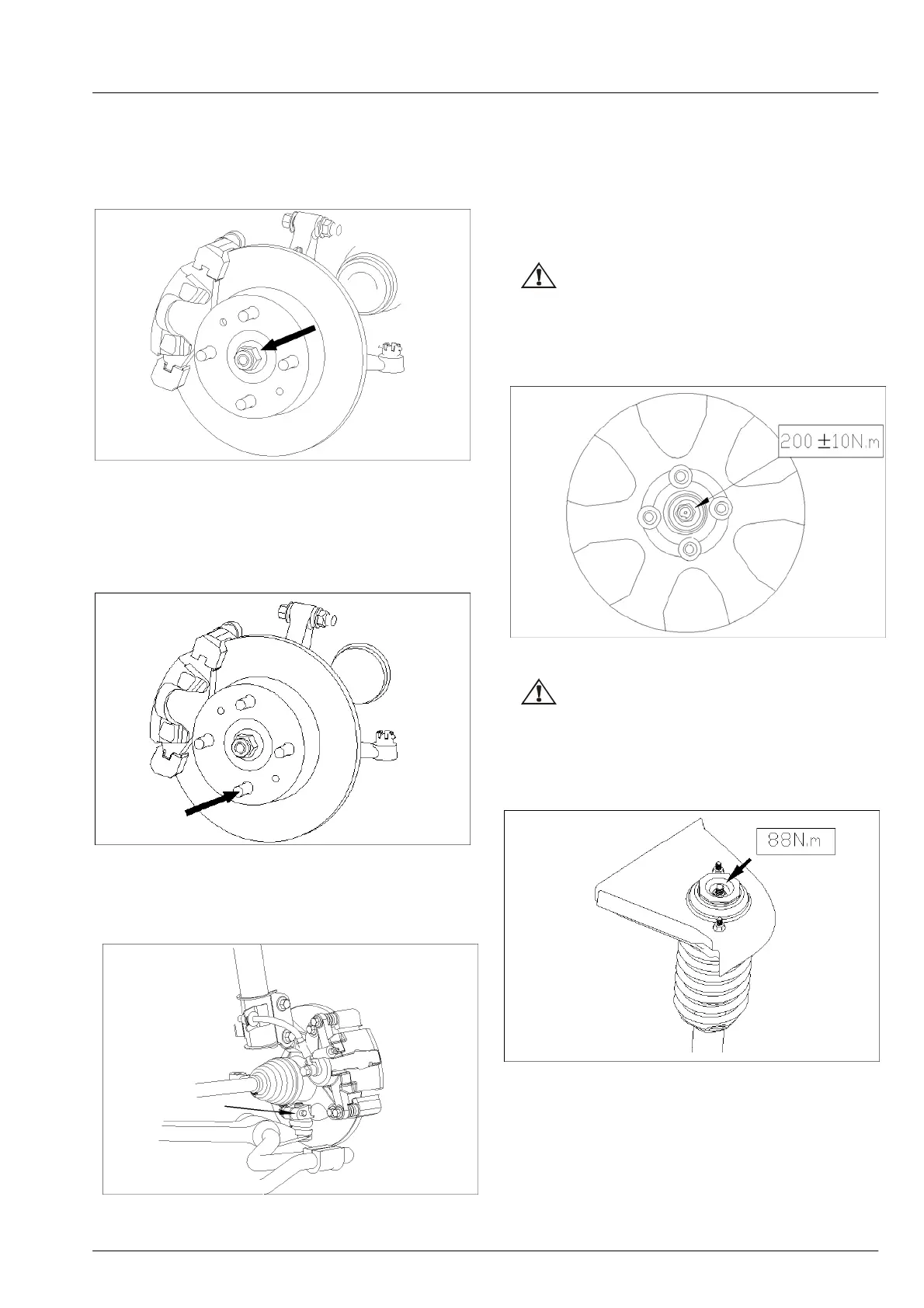

2. The driving axle is installed on the wheel hub
bearing.
3. Note: The wheel hub fixing nut should be
reinstalled.
Note: The wheel hub fixing nut should not be
secured at this stage.
The wheel hub fixing nuts and washers are
installed.
4. The lower oscillating arm is installed on the
steering knuckle.
5. Install the wheel and tyre. See Section 201-03 for
relevant information.
6. Check the transmission oil. See Section 302-03
for the manual transmission gear.
7. Warnings: use socket wrench to fix the
wheel hub fixing nut to prevent damage.
The fixing wheel hub fixing nut is inserted into the
locking pin. (The tightening torque shall be
200±10Nm)
8. Warning: The hexagonal socket wrench Is
used to prevent the piston rod from
rotating.
Fix the upper nuts on the front supporting
column assembly.
