Char-Broil 463714514 User Manual

47 pages

To Next Page

To Next Page

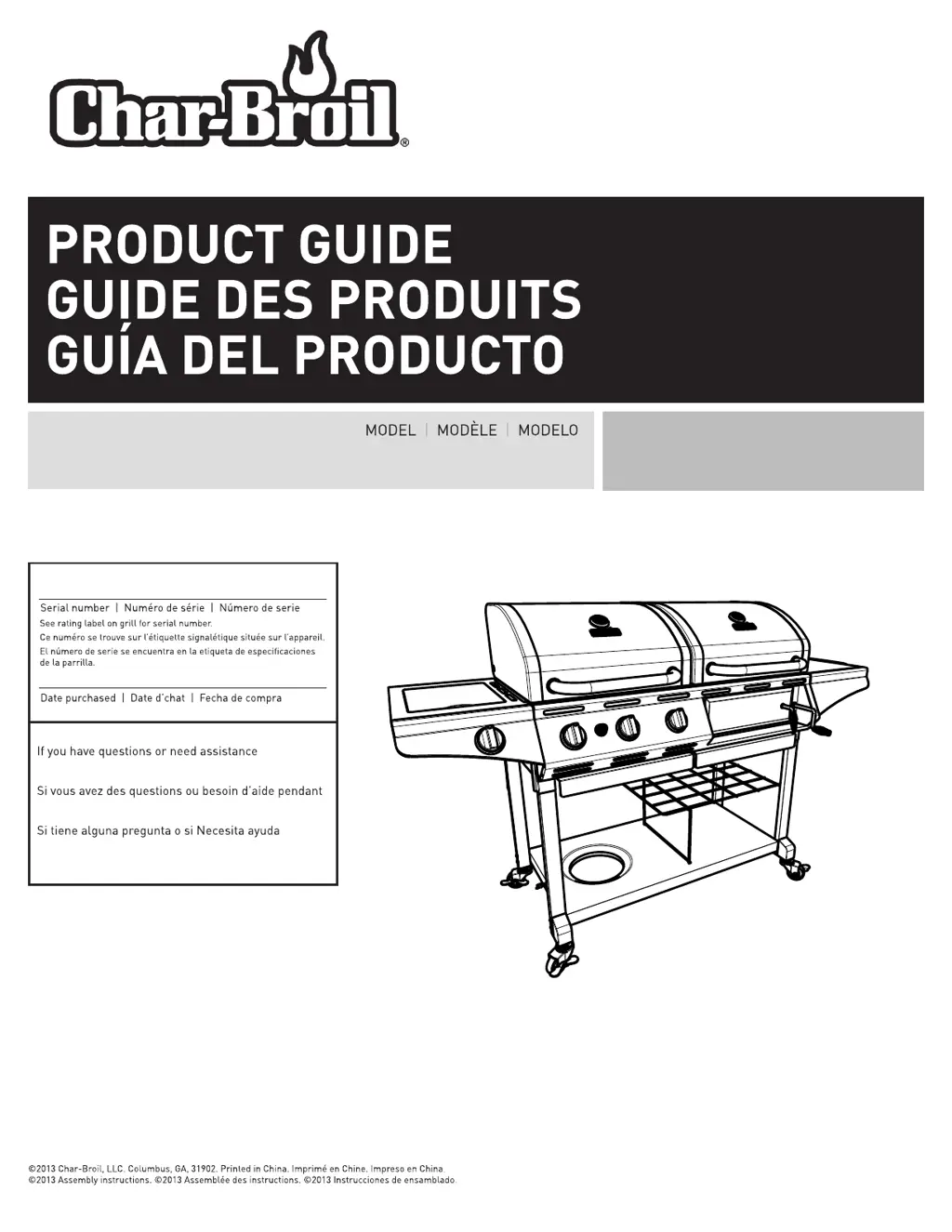

Page #1 background image

Loading...

Page #1 background image

during assembly, please call 1-800-241-7548.

l’assemblage, S’il vous plaît appelez 1-800-241-7548

durante el Ensamblado, llámenos Al 1-800-241-7548

2/13/14 • 80022266

463714514 463714914

Charcoal/Gas

Combo 1010

Questions and Answers:

A
Angela HarrisAug 14, 2025
How to fix sudden drop in gas flow in Char-Broil Grill?
- M
  Mark GarciaAug 14, 2025
  If you experience a sudden drop in gas flow or a low flame on your Char-Broil Grill, first check to ensure your LP cylinder isn't out of gas. If that's not the issue, the excess flow valve may have tripped. Try turning off the knobs, waiting 30 seconds, and then lighting the grill. If the flames are still low, turn off the knobs and the LP cylinder valve, disconnect the regulator, reconnect it, and perform a leak test. Then, turn on the LP cylinder valve, wait 30 seconds, and try lighting the grill again. Another potential cause is a vapor lock at the coupling nut/LP cylinder connection. To resolve this, turn off the knobs and LP cylinder valve, disconnect the coupling nut from the cylinder, reconnect it, and try again.
J
Jonathan HigginsAug 18, 2025
Why no sparks with noise in Char-Broil 463714514?
- T
  Timothy ThompsonAug 18, 2025
  If no sparks appear at any electrodes when the Electronic Ignition Button is pressed and you hear noise from the spark module of your Char-Broil Grill, the output lead connections may not be connected. Remove and reconnect all output connections at the module and electrodes.
A
amandahudsonAug 21, 2025
Why no sparks and no noise in Char-Broil 463714514 Grill?
- M
  michaelmillerAug 21, 2025
  If no sparks appear at any electrodes when the Electronic Ignition Button is pressed and no noise can be heard from spark module on your Char-Broil Grill, the battery may not be installed properly. Install the battery, ensuring that the “+” and “–” connectors are oriented correctly, with “+” on the cap end. It could also be a dead battery. Replace the battery with a new alkaline battery. Additionally, the button assembly might not be installed properly. Unscrew the button cap assembly and reinstall it, making sure the threads are aligned and engaged fully. Finally, the spark module could be faulty, in which case you should replace the spark module assembly.
P
perryalisonAug 25, 2025
How to fix one burner not lighting on Char-Broil 463714514?
- G
  gregorybaileyAug 25, 2025
  If one burner does not light from other burners on your Char-Broil Grill, it is likely due to grease buildup or food particles in the end(s) of the carryover tube(s). Clean the carry-over tube(s) with a wire brush.
A
Antonio ScottAug 28, 2025
Why does my Char-Broil Grill flare up?
- I
  ibushAug 28, 2025
  Flare-ups on your Char-Broil Grill can be caused by grease buildup. To prevent this, clean the burners and the inside of the grill/firebox regularly. Another cause can be excessive fat in the meat. Trim the fat from the meat before grilling. Finally, excessive cooking temperature can cause flare-ups. Adjust the temperature accordingly to a lower setting.
R
Richard MoraAug 31, 2025
What to do if flames blow out on Char-Broil 463714514 Grill?
- S
  samuellongAug 31, 2025
  If your Char-Broil Grill flames blow out, it could be due to high or gusting winds. Turn the front of the grill to face the wind or increase the flame height to combat this. Another possible reason is low LP gas; in this case, refill the LP cylinder. Also, the excess flow valve may have tripped. Refer to “Sudden drop in gas flow” to resolve this.
R
Regina MoralesSep 3, 2025
How to stop persistent grease fire in Char-Broil Grill?
- D
  davisjulieSep 3, 2025
  If you have a persistent grease fire in your Char-Broil Grill, turn the knobs to the OFF position. Then, turn the gas off at the LP cylinder. Leave the lid in position and let the fire burn out. After the grill cools, remove and clean all parts.
M
Michael RobbinsSep 7, 2025
What causes flashback in Char-Broil 463714514?
- M
  Michael BautistaSep 7, 2025
  If you experience a flashback (fire in burner tube(s)) with your Char-Broil Grill, it indicates that the burner and/or burner tubes are blocked. Turn the knobs to the OFF position and clean the burner and/or burner tubes. Refer to the burner cleaning section of Use and Care.
B
Brian JonesSep 10, 2025
Why are sparks weak on Char-Broil Grill?
- A
  Annette SmithSep 12, 2025
  If sparks are present but not at all electrodes and/or not at full strength on your Char-Broil Grill, the output lead connections may not be connected. Remove and reconnect all output connections at the module and electrodes. Arcing to the grill away from the burner(s) may also be the cause. If possible, observe the grill in a dark location, operate the ignition system, and look for arcing between the output wires and the grill frame. A weak battery can also cause this issue. Replace the battery with a new alkaline battery. Wet electrodes can also prevent proper sparking; use a paper towel to remove moisture. Finally, cracked or broken electrodes can cause sparks at the crack. Replace cracked or broken electrodes.

Char-Broil 463714514 Specifications

General

Type	Gas Grill
Burner Material	Stainless Steel
Fuel Type	Propane
Material	Stainless Steel
Dimensions	53.1" W x 24.5" D x 47.5" H

Summary

PREPARING TO USE YOUR GRILL

COOKING TIPS

Direct and Indirect Grilling

Explanation of direct and indirect grilling techniques for optimal results.

GRILLING GUIDE – Getting Started

Food Safety

Essential guidelines for safe food handling and preparation during grilling.

GRILLING GUIDE – Tips & Tricks

Internal Meat Temperatures

Recommended internal temperatures for various meats to ensure safety and doneness.

Installation Safety Precautions

USE AND CARE

LP Cylinder Leak Test

Step-by-step instructions for performing a leak test on LP cylinders and connections.

Safety Tips

LIMITED WARRANTY

ASSEMBLY STEPS

Troubleshooting

EMERGENCIES

Actions to take in case of gas leaks or fires, and when to call emergency services.

GAS ISSUES

Sudden drop in gas flow or low flame

Persistent grease fire
