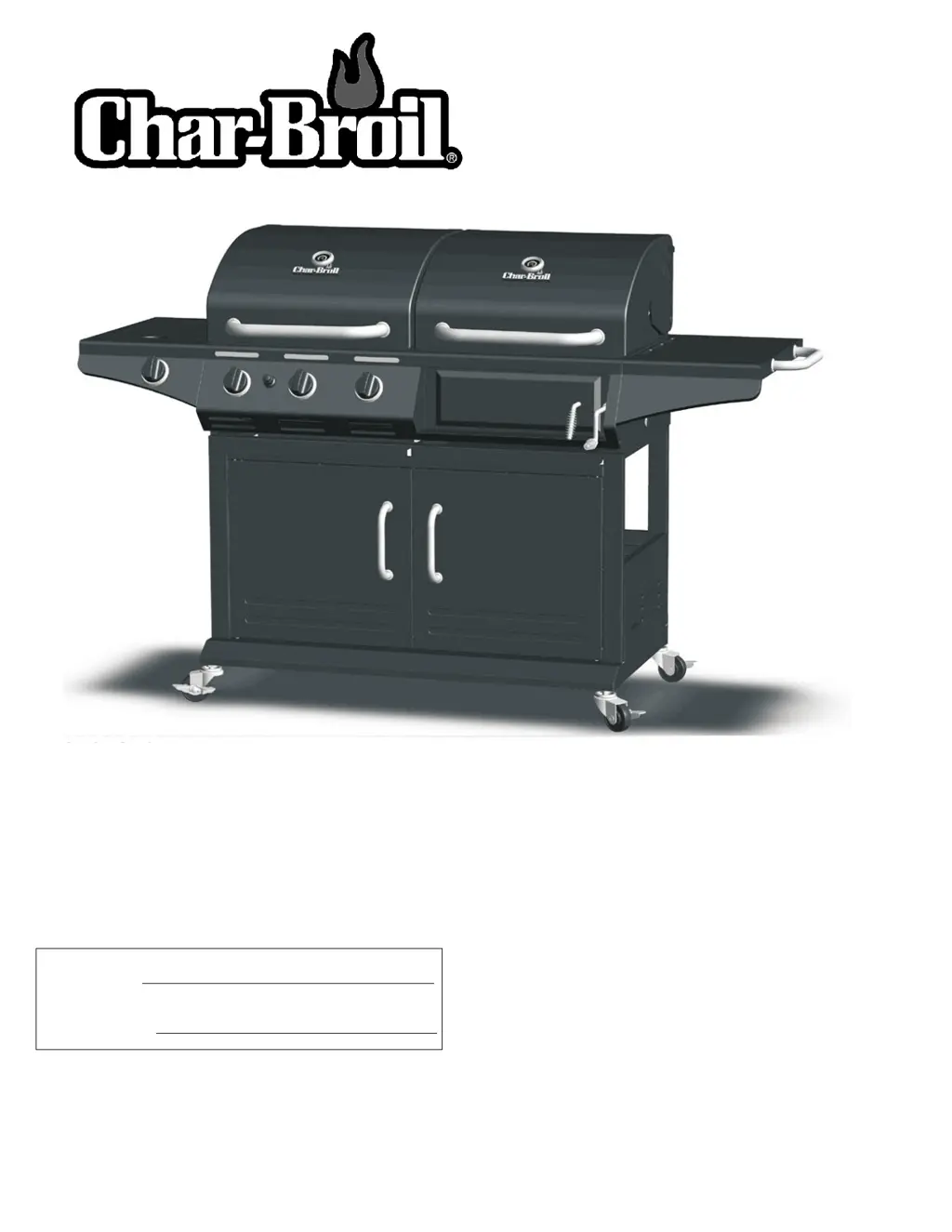

Char-Broil 463724512 - User Manual

Questions and Answers

C
Christine BryantAug 14, 2025
Why is my Char-Broil 463724512 Grill not igniting? (No spark, no noise)
- S
  suedelgadoAug 14, 2025
  If no sparks appear at any electrodes and no noise is heard from the spark module when pressing the electronic ignition button on your Char-Broil Grill, several issues could be the cause. First, check if the battery is not installed properly and ensure that the “+” and “–” connectors are oriented correctly, with “+” on the cap end. Second, the battery might be dead, so replace it with a new alkaline battery. Third, the button assembly might not be installed properly; unscrew the button cap assembly and reinstall, making sure the threads are aligned and engaged fully. Lastly, the spark module might be faulty, so replace the spark module assembly.
A
Alyssa VaughnAug 17, 2025
How to fix a Char-Broil Grill when one burner won't light from the others?
- R
  Ryan GilmoreAug 17, 2025
  If one burner does not light from the other burners on your Char-Broil Grill, it could be due to grease buildup or food particles in the end(s) of the carryover tube(s). Clean the carry-over tube(s) with a wire brush to resolve this.
D
danielwrightAug 20, 2025
Char-Broil Grill: no spark, but I can hear the ignition module. What's wrong?
- P
  pmasonAug 21, 2025
  If no sparks appear at any electrodes, but noise can be heard from the spark module when pressing the electronic ignition button on your Char-Broil Grill, the output lead connections may not be connected. Remove and reconnect all output connections at the module and electrodes.
J
Jared DanielAug 25, 2025
How to prevent flare-ups on my Char-Broil Grill?
- J
  Jason FinleyAug 25, 2025
  Flare-ups on your Char-Broil Grill can occur due to grease buildup. To resolve this, clean the burners and the inside of the grill/firebox. Another cause can be excessive fat in the meat; trim the fat before grilling. Finally, excessive cooking temperature can cause flare-ups, so adjust the temperature accordingly by lowering it.
M
Matthew LeonardAug 28, 2025
Why is the flame so low on my Char-Broil 463724512 Grill?
- T
  Thomas CampbellAug 28, 2025
  A sudden drop in gas flow or low flame in your Char-Broil Grill could be due to several reasons. First, check if your LP cylinder is out of gas. Second, the excess flow valve might have tripped; in this case, turn off the knobs, wait 30 seconds, and light the grill. If flames are still low, turn off knobs and the LP cylinder valve, disconnect the regulator, reconnect it, perform a leak test, turn on the LP cylinder valve, wait 30 seconds, and then light the grill. Finally, a vapor lock might have occurred at the coupling nut/LP cylinder connection; turn off the knobs and LP cylinder valve, disconnect the coupling nut from the cylinder, reconnect it, and try again.
B
browningpamelaAug 31, 2025
What to do if the flames keep blowing out on my Char-Broil Grill?
- H
  hernandezjacobAug 31, 2025
  If the flames on your Char-Broil Grill are blowing out, it might be due to high or gusting winds. Turn the front of the grill to face the wind or increase the flame height. Another cause could be low LP gas, so refill the LP cylinder. Also, the excess flow valve may have tripped; refer to the troubleshooting steps for a sudden drop in gas flow.
C
Cynthia DunnSep 3, 2025
How to stop a grease fire in my Char-Broil 463724512?
- S
  sphillipsSep 3, 2025
  If you have a persistent grease fire in your Char-Broil Grill, it's likely due to grease trapped by food buildup around the burner system. To resolve this, turn the knobs to OFF, turn the gas off at the LP cylinder, leave the lid in position, and let the fire burn out. After the grill cools, remove and clean all parts.
J
Jay GloverSep 7, 2025
What causes fire in the burner tubes of my Char-Broil Grill (flashback)?
- S
  Sharon WhiteSep 7, 2025
  If you experience flashback (fire in the burner tubes) in your Char-Broil Grill, it's likely that the burner and/or burner tubes are blocked. To fix this, turn the knobs to OFF and clean the burner and/or burner tubes.
T
Thomas AndrewsSep 10, 2025
Why are the sparks weak on my Char-Broil 463724512 Grill?
- W
  wmyersSep 10, 2025
  If sparks are present but not at all electrodes or not at full strength on your Char-Broil Grill, it could be due to several reasons. First, check if the output lead connections are not connected and reconnect all output connections at the module and electrodes. Second, arcing to the grill away from the burner(s) may be happening; observe the grill in a dark location, operate the ignition system, and look for arcing between output wires and the grill frame. A weak battery can also cause this issue, so replace the battery with a new alkaline battery. Additionally, if the electrodes are wet, use a paper towel to remove moisture. Finally, the electrodes may be cracked or broken (“sparks at crack”), so replace the cracked or broken electrodes.

Summary

Safety Information

Gas Leak Emergency Procedures

Steps to follow if a gas leak is detected, including evacuation and contacting authorities.

Flammable Liquids and LP Cylinder Storage Warning

Precautions for storing flammable liquids and LP cylinders near the appliance.

General Installation Safety Precautions

Hot Surfaces and Children Warning

Charcoal Grill Preparation

Initial Curing and Seasoning

Charcoal Grill Cooking Tips

Building Your Charcoal Fire

Determining Coal Readiness and Temperature Control

Direct and Indirect Grilling Methods

Gas Grill Guide

Resetting Gas Regulator Safety Feature

Grilling Techniques and Food Safety

Direct vs. Indirect Grilling Methods

Essential Food Safety Practices

Guidelines for safe food handling, cooking temperatures, and storage.

Internal Meat Temperature Guidelines

Grill Cleaning and Storage

Use and Care - LP Cylinder

LP Cylinder Safety and Storage

Dangers of storing/handling LP cylinders and proper storage locations.

LP Cylinder Removal and Transport

How to safely handle, disconnect, and move the LP cylinder.

LP Cylinder Valve Requirements

Safe LP Cylinder Filling Practices

Procedures for correctly filling LP cylinders at a licensed dealer.

Performing LP Cylinder Leak Tests

How to check for gas leaks using a soap solution before operating.

Connecting the Regulator to the LP Cylinder

Step-by-step guide for safely attaching the regulator to the LP cylinder.

Leak Testing Valves, Hose, and Regulator

Detailed steps and checks for leak testing the entire gas system components.

General Grill Safety and Operation

General Safety Precautions for Grill Use

Key safety rules to prevent injury, fire, and property damage during grill operation.

Ignitor Lighting Procedures

Match-Lighting Procedures

Ignitor, Valve, and Hose Checks

Troubleshooting and Maintenance

Spider and Venturi Tube Cleaning

How to clean venturi tubes to prevent spider web blockages and flashbacks.

Burner Assembly Cleaning and Removal

Step-by-step guide for cleaning burner components and proper reassembly.

Assembly Instructions

Step 1: Caster Bracket Assembly to Legs

Attaching caster brackets to the left and right grill legs using screws.

Step 2: Bottom Shelf to Legs

Attaching the bottom shelf to the leg assemblies using screws and nuts.

Step 3: Rear Panel and Door Frame Bracket Installation

Attaching the rear panel and door frame bracket to the grill cart.

Step 4: Bottom Shelf Fascia Attachment

Step 5: Installing Tank Exclusion Panel

Step 6: Installing Grill Doors

Step 7: Assembling Grill Body to Cart

Lowering and securing the main grill body onto the cart assembly.

Step 8: Right Side Fascia and Side Handle

Attaching the right side fascia and side handle to the shelf.

Step 9: Right Side Shelf Assembly

Attaching the right side shelf assembly and fascia to the firebox.

Step 10: Sideburner Fascia Installation

Attaching the fascia panel to the sideburner shelf.

Step 11: Sideburner Shelf Assembly

Attaching the sideburner shelf assembly to the firebox.

Step 12: Sideburner Valve Bezel Installation

Mounting the bezel for the sideburner valve onto the fascia.

Step 13: Ignitor Wire and Side Burner Components

Step 14: Installing Air Ventilation Dampers

Step 15: Burner Tent Placement

Step 16: Warming Rack, Cooking Grate, and Crank

Step 17: Installing Grease Tray and Ash Pan

Step 18: Securing the LP Tank

Mounting the LP tank onto the cart using the thumbscrew for stability.

Troubleshooting Common Issues

Emergency Procedures for Gas Leaks and Fires

Actions to take in case of gas leaks, fires, or other emergencies.

Burner Ignition Problems

Match Lighting and Gas Flow Issues

Flare-ups, Grease Fires, and Flashbacks

Addressing common operational fire issues and their prevention.

LP Cylinder and Burner-Specific Issues

Auto-Clean Feature Troubleshooting

Electronic Ignition Troubleshooting

Section I: No Spark or Ignition Noise

Diagnosing ignitor issues when no spark or noise is heard from the module.

Section II: Spark Module Noise, No Spark

Troubleshooting when ignitor makes noise but no spark appears at electrodes.

Section III: Weak or Misdirected Sparks

Addressing ignitor issues with weak sparks or arcing away from electrodes.

Char-Broil 463724512 Specifications

General

Brand	Char-Broil
Model	463724512
Type	Gas Grill
Fuel Type	Liquid Propane
Material	Stainless Steel
Burner Material	Stainless Steel
Dimensions	50.5 x 24.5 x 46.5 inches
Weight	95 lbs
Side Burner BTUs	10, 000 BTU
Ignition Type	Electronic
BTU Output	40, 000 BTU
BTU	40, 000 BTU
