10
Installation Product Manual - Trifecta
®
XPro Series

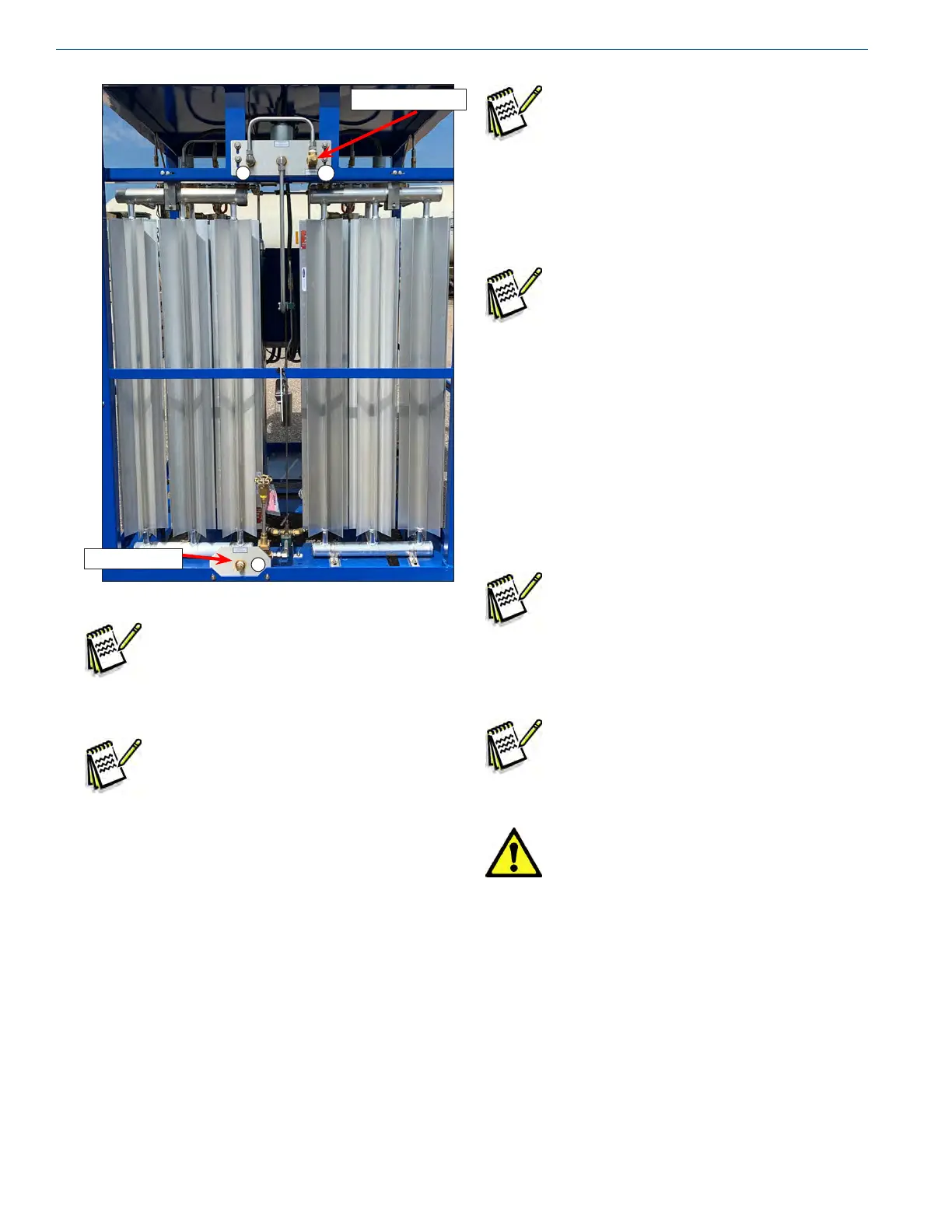

Figure 1
Note: It is recommended to insulate the liquid
Note:
liquid line should not be opened until all
plumbing connections are complete.
supplies pneumatic pressure to the actuators on each ball
valve. The regulator regulates the pressure from the bulk
tank down to 125 psi. The actuators require a minimum of 80
psig. The maximum pressure for the gas line is 150 psi.
Piping to Vaporizer
external vaporizer(s) must be connected to the “to Vaporizer”
line of the Trifecta XPro Series. The vaporizer(s) should
have a pressure rating of at least 600 psig - or 700 psig for
the 600 psig Trifecta.
Note: It is important to make sure the vaporizer
assembly is protected against over
vaporizer installation must include a
the vaporizer, set at 600 psig (or 700 psig
Note:
should not be relied upon as the only
vent liquid, creating a noticeable vapor
cloud.
The piping and components from the Trifecta XPro Series
to the vaporizer must be at least 3/4” (19mm) copper or its
equivalent and of adequate pressure rating. Small diameter
lines will introduce undesirable pressure drops and impact
overall system performance. The outlet of the vaporizer
regulation as required.
Note: Installation of an additional purge valve
serve as an emergency gas feed port.
Note: Ensure that the house line is rated for the
maximum pressure that can be produced
valves and line regulation as required.
Warning! Do not set operating pressure
higher than the lowest relief
device!
To Vaporizer
Liquid Feed
A
B
C
To Next Page
