Bill Of Material
Line
Qty
Desc Vendor Part Number
Part Description
11
EA 3030417 Phoenix End Barrier
2 1 EA
M22-L-R-230R
C-H Red LED Red Pilot Light
3 1 EA M22-K01 C-H 1 N.C Contact Block
4 2 EA
M22-K10
C-H Contact Block 1NO
5
1 EA AL2-24MR-D Mitsubishi PLC
6
1 EA PS5R-B24
Idec Power Supply
7 2 EA
3043414
Phoenix 24VDC Fuse Holder
8 1 EA 5604188 Phoenix Raised Din Rail
9
2
EA 3209536 Phoenix Ground Terminal Block
10
4 EA
0800886 Phoenix End Anchor
11
EA 3210567 Phoenix 2 Level Terminal Block
12
10
EA
3210499 Phoenix 3 Level Terminal Block
13 6
EA
3046430 Phoenix120V Fuse Holder
14 1 EA
2903332
Phoenix 120V Relay
15
1 EA
3030284
Phoenix Fuse Holder Jumper (2 point)
16
1 EA
3030323
Phoenix Fuse Holder Jumper (10 point)
17
7 EA M22-L-G-230G
Eaton 120V Green Pilot Light
18
1 EA CHA-1001
Red Lion Temp Controller Bracket
19 5 EA PTF56500R00BYBF Newark Precision 1 Watt 500 OHM Resistor
20 1 EA BLD2-18P16 SAG. 16X18 SUB PAN. FOR CHART IND.
21 1 EA SCE-PWK53NF-CHA SAG. WINDOW KIT PAINTED BLUE FOR CHART
22 1 EA BLD2-16H1808LP
SAG. ENCL. 16X18X8 CUSTOM PAINTED BLUE FOR
CHART IND.
23
1 EA WD-1001-CHA
WD Engraving REV. ENGR. FACE PLATE FOR
CHART IND.
24
4 EA 3030213
Phoenix 10 Pole Jumper
25 1 EA SLB-3-5-55P-36-120V-75W Chromalox 75Watt Heater
26 3 EA 3211634 Phoenix End Barrier for LD3
27 1 EA
3211647
Phoenix End Barrier for LTF3
28 1 EA AGC-2/10 Bussman Fuse 2/10A
29 1 EA EC2GB12 ITE Ground Bar Kit 12-Position
30 1 EA M22S-WRK3 C-H 3-Position Selector Switch
31 1 EA MDA-10-R
Bussmann Time-Delay Fuse 10A
32 2 EA MDL-1 Bussmann Fuse 1A
33 3 EA MDL-2 Bussmann Fuse 2A
34
1
EA MDL-4 Bussmann Fuse 4A
35
1 EA
3100062
Phoenix Thermocoupleterminal Block
36 1 EA T1610010 Red Lion Meter
37
2 EA
3209510 Phoenix Terminal Block
38 .25 EA F1X2LG6 Panduit 1X2 Wire Duct
39 .25
EA C1LG6 Panduit 1" Duct Cover
40 3 EA CAT 3211
3/4'' Conduit Bushing
41 1 EA
3101029 Phoenix End Barrier
42 1 EA
3030161
Phoenix 2 Pole Jumper

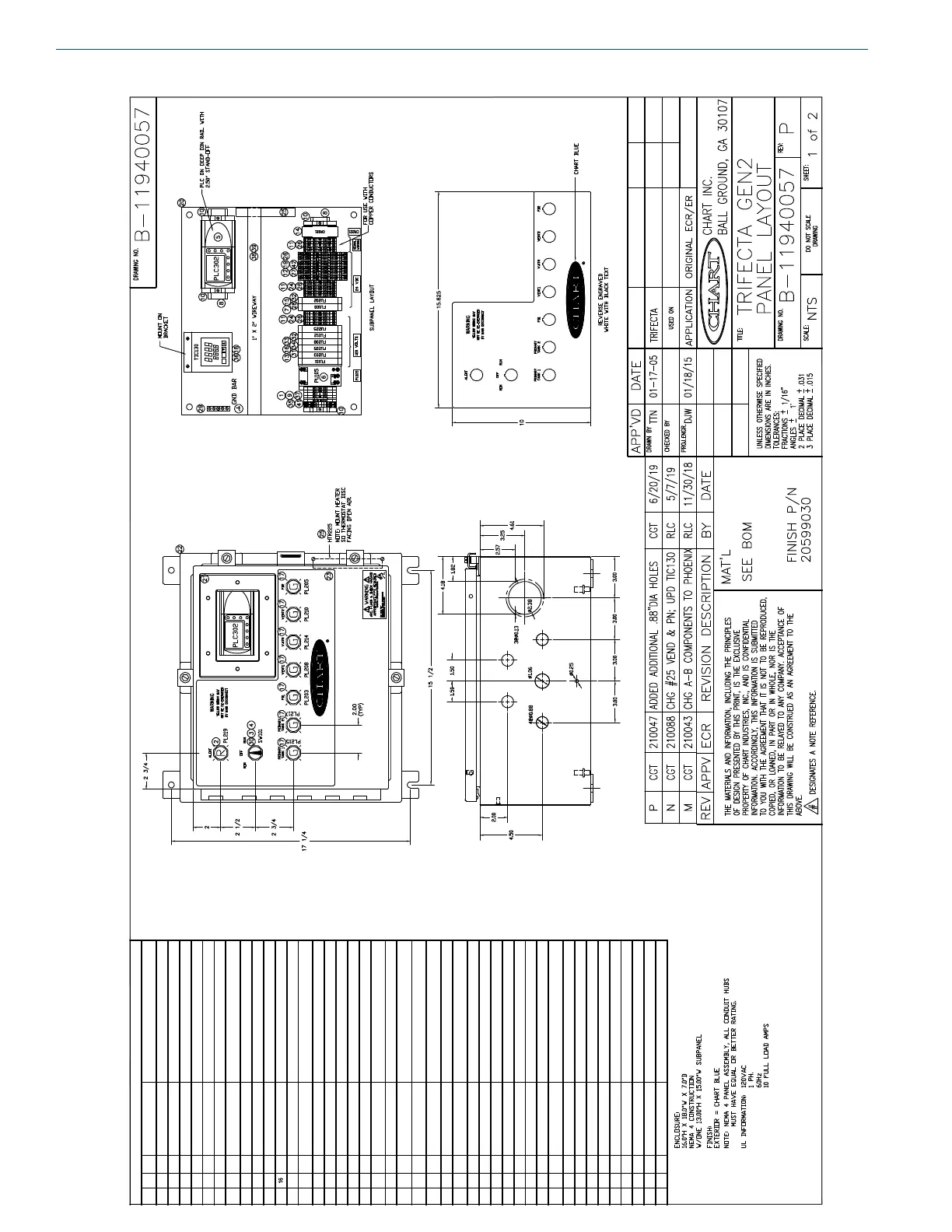

Electrical Schematics
Service
42
Product Manual - Trifecta
®
XPro Series
