50
Preventive Maintenance Product Manual - Trifecta
®
XPro Series

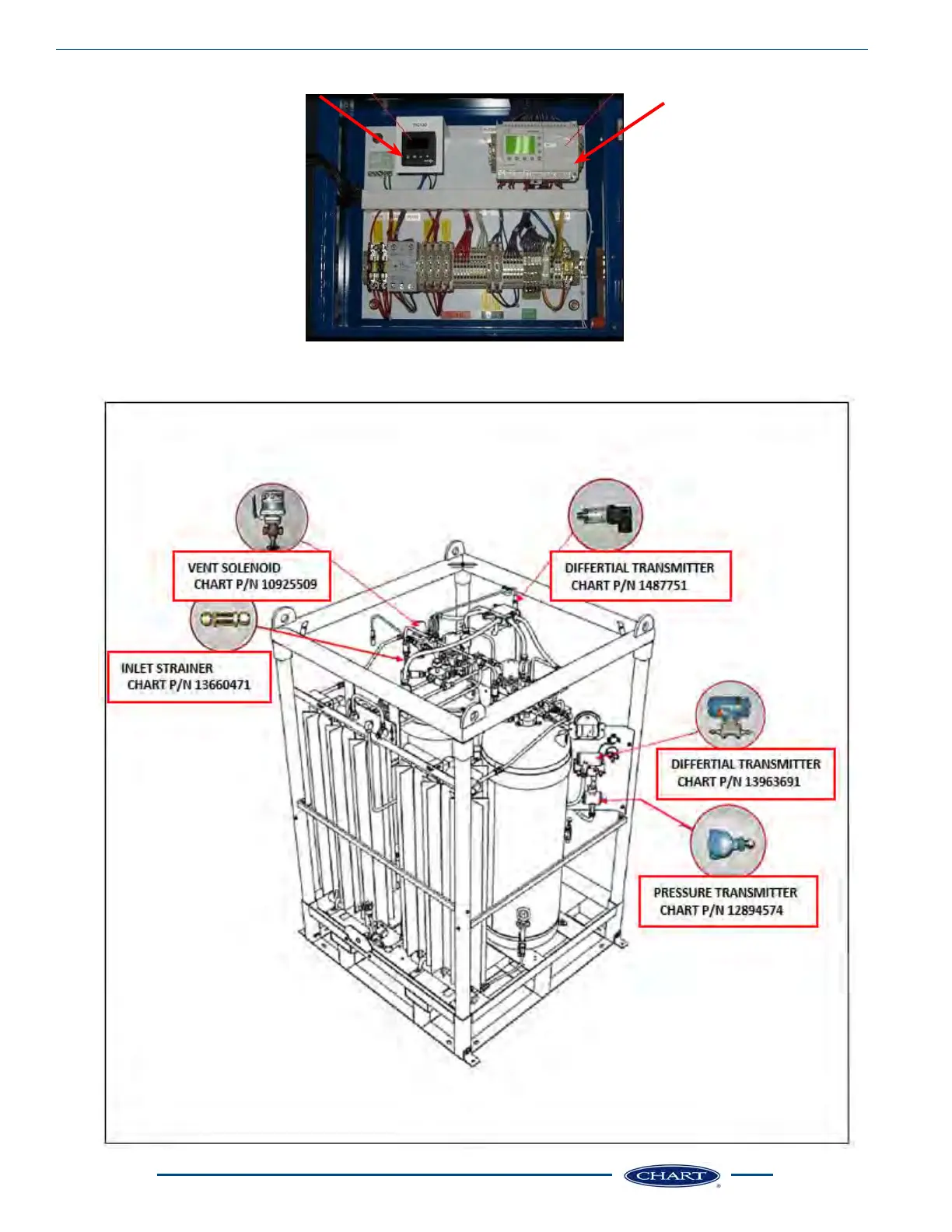

Inside picture of Control Box
Temperature Controller
Chart PN 21323109
Mitsubishi PLC
Chart PN 11877019
Rear Isometric view of nitrogen Trifecta (500 psig)
