Chattanooga Intelect Advanced Series User Manual

Intelect
®
Advanced Vacuum Electrode Module
8
SPECIFICATIONS
Vacuum Electrode Module Specifications
DEPTH
HEIGHT
NOTE:
All waveforms available on the Intelect Advanced Therapy System are
available to the Intelect Advanced Vacuum Electrode Module. Refer to
the Intelect Advanced User Manual, part number 27429, for Waveform
Specifications, precautions and set up instructions.
WIDTH

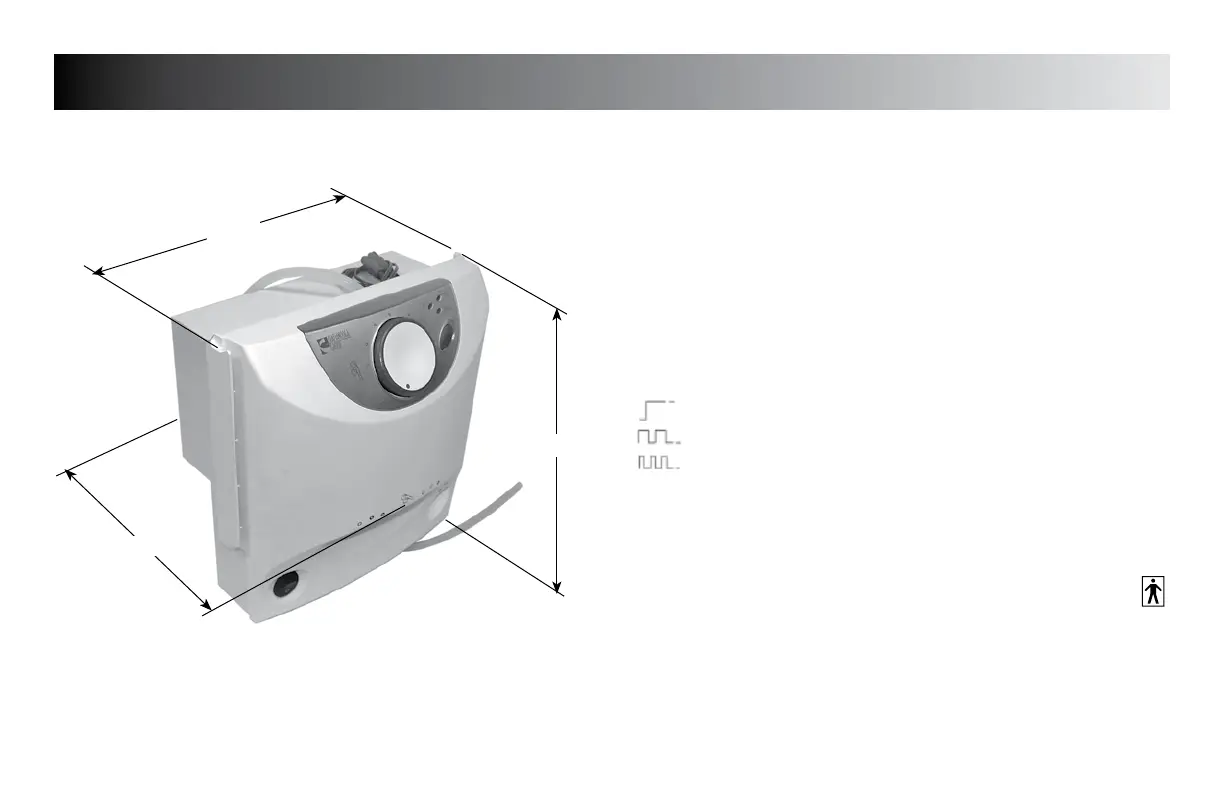

DIMENSIONS
Width. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22.7 cm (8.9375”)
Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13.3 cm (5.25”)
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23.5 cm (9.25”)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.8 kg (6.265 lbs)
Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2 kg (7.0 lbs)
Vacuum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 - 600 mbar maximum
0 - 17.7 inches mercury maximum
Vacuum Type
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.65 seconds On/0.35 seconds Off
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.75 seconds On/0.25 seconds Off
Power
Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 - 240V - 1.0A, 50/60 Hz
Output . . . . . . . . . . . . . . . . . . . . . . . .Intelect Advanced Therapy System dependent
Electrical Class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CLASS I
Electrical Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .TYPE BF
