Intelect
®
Advanced Vacuum Electrode Module
11
OPERATION
Vacuum Electrode Module
Use the following instructions in conjunction with the Intelect Advanced
User Manual, part number 27429, when setting waveform parameters.
NOTE:
Use of sEMG, sEMG + Electrical Stimulation or Combination Therapy is not
possible through the Channel 1 and 2 Lead Wire Connectors on the Vacuum
Electrode Module. To perform sEMG, sEMG + Electrical Stimulation or
Combination Therapy, it will be necessary to connect the respective Lead
Wires directly to the Intelect Advanced Therapy System and not to the
Vacuum Electrode Module.

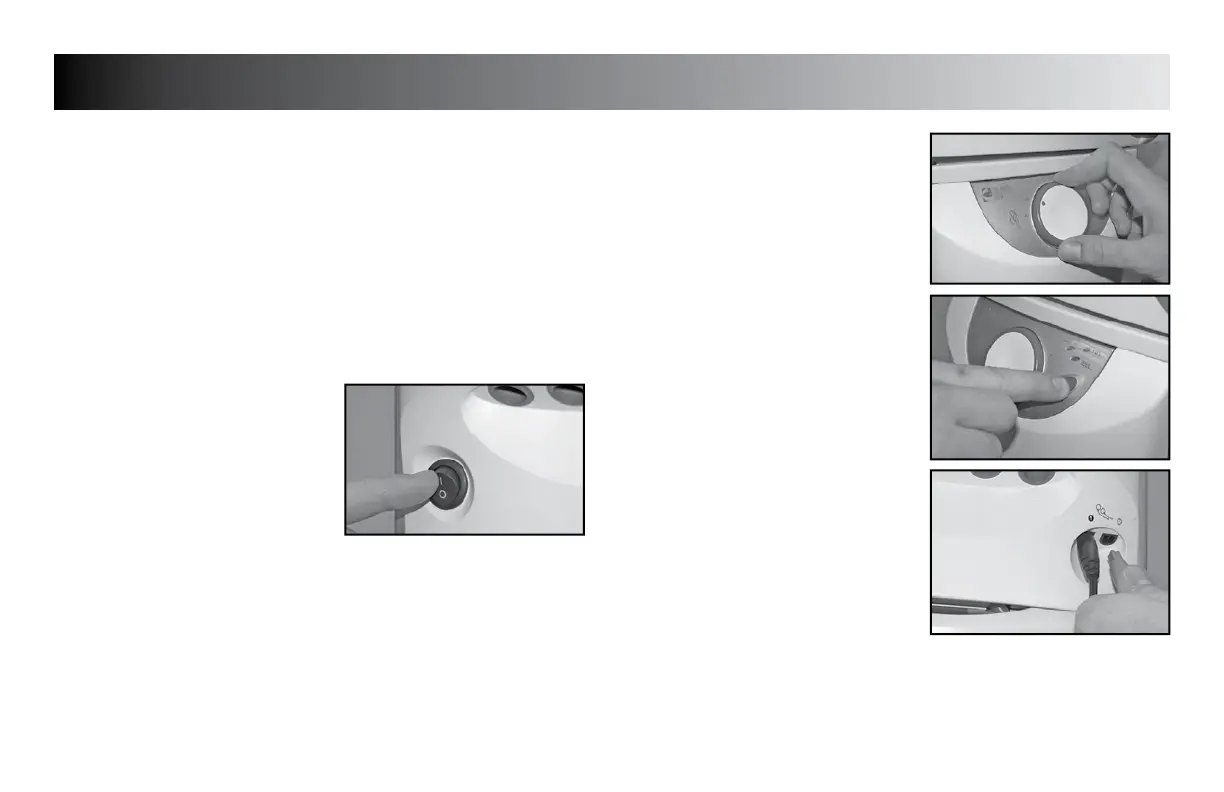

Turning Vacuum Module ON and OFF
The Intelect Advanced Vacuum
Electrode Module incorporates an
independent Main On/Off Switch
located on the lower left corner of the
module.
NOTE:
It is not necessary for the Vacuum
Module to be turned On if only the
Intelect Advanced Therapy System is
being used to administer therapy.
These instructions also apply to the
operation of a second Intelect Advanced
Vacuum Electrode Module installed on
a single four channel Intelect Advanced
Therapy System.
Adjusting Vacuum Intensity
Perform Electrode & Patient Preparation
as described on page 10.
Adjust Vacuum Intensity by rotating the
Vacuum Intensity Knob from 1 to 10 on
the dial as desired to secure electrodes
to patient.
Selecting Vacuum Mode
The Intelect Advanced Vacuum
Electrode Module allows for
Continuous, 1.65 second On - 0.35 Off
or 0.25 Second On - 0.75 Second Off.
Modes. To select, press the Vacuum
Mode button until the LED for the
desired mode is illuminated.
Using Lead Wire Connectors
Rotate the Vacuum Intensity Knob
completely counterclockwise. Connect
the Intelect Advanced Therapy System
Lead Wires to the Channel 1 & 2 Lead
wire connector on the Vacuum Module.
NOTE:
It will be necessary to connect the lead
wires for standard electrotherapy and
combination therapy sessions.
