Intelect
®
Advanced Vacuum Electrode Module
9
SYSTEM SETUP
Intelect Advanced Vacuum Electrode Module
Remove the Intelect Advanced Therapy System Cart with Vacuum Electrode
Module and all accessories from shipping cartons. Visually inspect for
damage. Report any damage to the carrier.
Standard Accessories
Power Cords (Select One)
Vacuum Electrode Module Setup
The Intelect Vacuum Electrode Module is designed to function with the
Intelect Advanced Therapy System only. The following setup instructions
apply to the connection of the Vacuum to System Leads for integration of
the Vacuum Module with the Intelect Advanced Therapy Systems.
Installation of the Intelect Advanced Vacuum Electrode Module into the
Therapy System Cart must be performed by the Dealer or a Service
Technician certified by DJO.

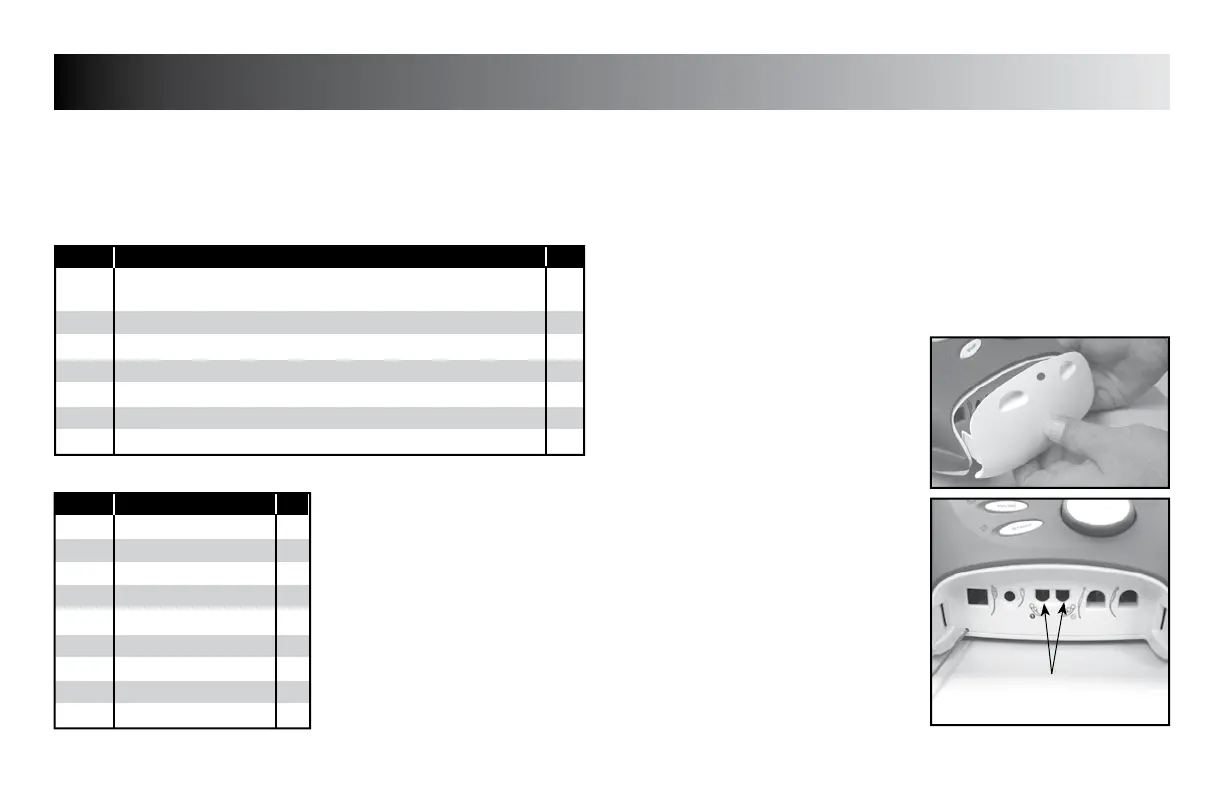

Connecting Vacuum to System Leads
Remove the Front Access Cover of the
Intelect Advanced Therapy System.
Connect the respective Vacuum to
System Leads to Channels 1 and 2.
NOTE:
If connecting to a four channel
Intelect Advanced Therapy System, it
is recommended that the vacuum to
system leads be connected to channels
1 and 2.
Replace the Intelect Advanced Therapy
System Front Access Cover.
CHANNELS 1 and 2 LEAD
WIRE CONNECTORS
Part No. Country Qty
21284 Euro 1
78121 US 1
20971 Australian 1
20972 Swiss 1
20973 UK 1
20974 Danish 1
20975 Japanese 1
20976 Indian 1
20977 Israeli 1
Part No. Description QTY
2774 Intelect Advanced Therapy System Cart with
Vacuum Electrode Module 1
2785 Intelect Advanced Vacuum Electrode Module (Module Only) 1
27745 Vacuum Lead Hose, Channel 1 (Black) 2
27746 Vacuum Lead Hose, Channel 2 (Grey) 2
56582 60 mm Vacuum Electrodes 4
56806 60 mm Electrode Sponges 4
27458 User Manual (CD-ROM) 1
