Intelect
®
Advanced Vacuum Electrode Module
6

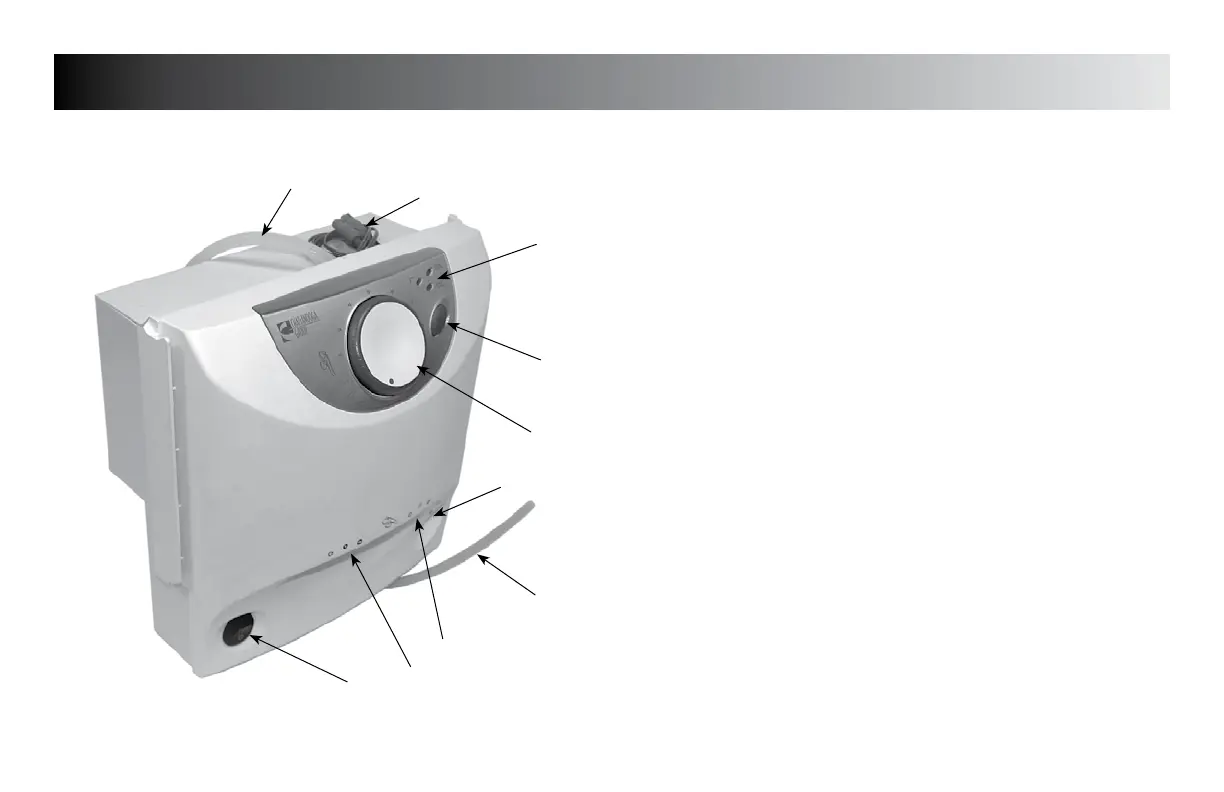

NOMENCLATURE
Intelect Advanced Vacuum Electrode Module
1
2
4
5
3
6
7
8
1. Exhaust/Overflow Hose (Routes to bottom of Therapy System Cart)
2. Vacuum Module to Intelect Advanced Therapy System Leads
3. Vacuum LED Indicators
4. Vacuum Mode Selector Button
5. Vacuum Intensity Knob
6. Channel 1 and 2 Lead Wire Connectors
7. Reservoir Drain Hose (Routes into Cart Storage Bin below Vacuum)
8. Channel 1 Vacuum Lead Hose Connectors (Channel 3 a second
Vacuum Electrode Module).
9. Channel 2 Vacuum Lead Hose Connectors (Channel 4 a second
Vacuum Electrode Module).
10. Vacuum Main Power Switch
NOTE:
The Intelect Advanced Vacuum Electrode Module is shown out of the
Therapy System Cart for component clarification only. The Intelect
Advanced Vacuum Electrode Module is not operable outside of the
Therapy System Cart and must be properly connected to the Intelect
Advanced Therapy System.
A second Intelect Vacuum Electrode Module may be installed for
Intelect Advanced Therapy Systems with the optional Two Channel
Electrotherapy Module installed. This would allow the application of
vacuum electrodes on all four channels simultaneously.
9
10
