Chattanooga Intelect Mobile 2 - 9.2. Device Top Sub Assembly Parts

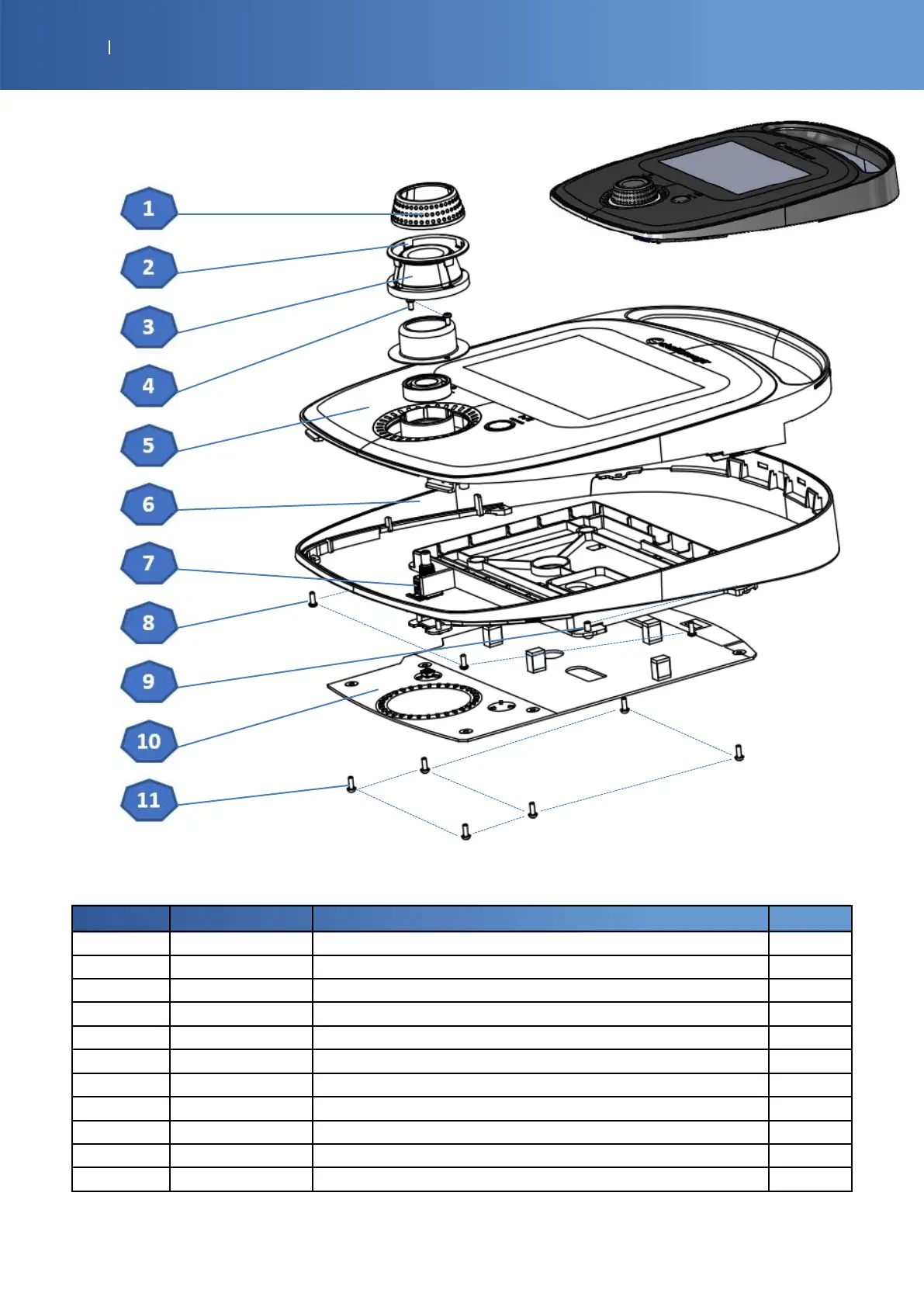

EXPLODED VIEWS AND SERVICE PARTS LISTS
EN
| Intelect
®
Mobile 2 - Service Manual 72
9.2. DEVICE TOP SUB ASSEMBLY
ITEM N°
Service Part n°
Description
Qty
1
G16-4311-SP
SERVICE PART MOB2 KNOB RUBBER BLACK
1
2
G16-4041-SP
SERVICE PART MOB2 KNOB EXTERNAL RING SILVER
1
3
G16-4031-SP
SERVICE PART MOB2 KNOB BODY BLACK
1
4
14-1040-SP
SERVICE PART KB30X6 PLASTIC TORX SCREW x 5
2
5
G16-0171-SP
SERVICE PART MOB2 DISPLAY TOP SUB ASSEMBLY
1
6
G16-4011-SP
SERVICE PART MOB2 DEVICE EXTERNAL SILVER
1
7
14-1031-SP
SERVICE PART ENCODER GRAYHILL 62AG11-L0-020C
1
8
14-1041-SP
SERVICE PART KB30X8 PLASTIC TORX SCREW x 5
4
9
14-1044-SP
SERVICE PART M4X8 TORX SCREW x 5
4
10
G16-0010-SP
SERVICE PART MOB2 CONTROL PCBA
1
11
14-1043-SP
SERVICE PART M3X8 TORX SCREW x 5
6
