iGage X9x User Manual page 15 of 53
distant users.

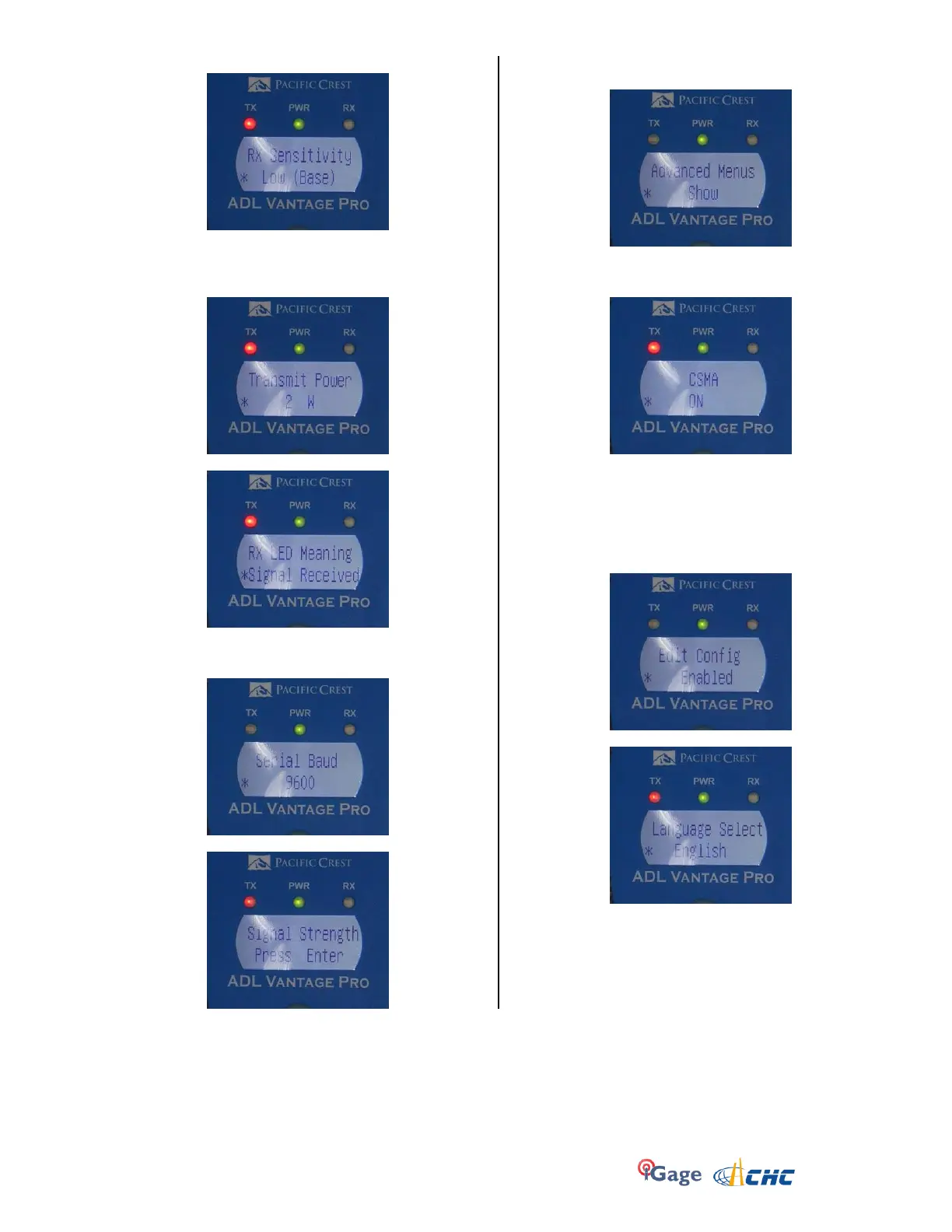

g. Set the Transmit Power to the lowest power
that will cover your job. Use the up and down
arrow keys to select, press enter when the
proper selection is made.
h. Set RX LED to Signal Received:
i. The Serial Baud is the baud rate over the
serial cable to the GPS receiver. This is fixed at
9600 baud on the receiver.
j. Press the ‘right-arrow’ to skip Signal Strength:
k. Press the ‘right-arrow= to skip Advanced
Menus Show:
l. CSMA (Collision Sense Multiple Avoidance)
must be left ON in the USA to meet FCC
requirements:
When CSMA is turned ON, the radio will listen
for other data or voice users on the
programmed frequency. The radio will wait
until they stop broadcasting before
transmitting.
m. Click the ‘right-arrow’- to skip the Edit Config
screen:
n. Choose the appropriate language:
o. Leave ‘Antenna Detect’ set to ON. If you
power the radio up without an antenna or
your antenna is damaged, then the radio will
detect this error and turn the output power
down to 2 watts. This will prevent the output
amplifiers from burning up:
