F10 Installation Manual Rev. *60 28 of 71

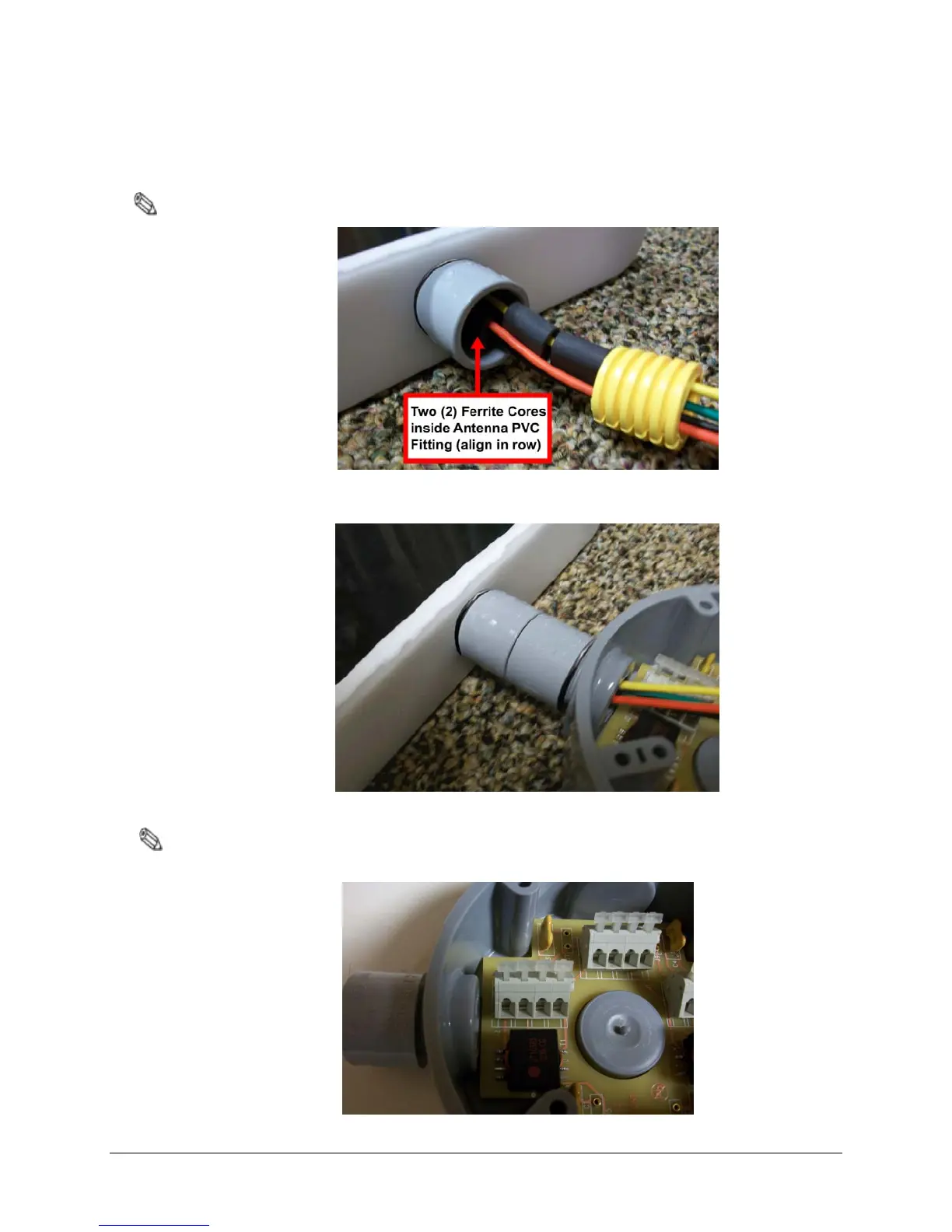

7. Align the four (4) ferrite cores in a row; they fit when staggered (i.e., positioned end-to-end).
Thread the antenna wires through the piece of conduit. Push two (2) of the Ferrite cores into
the antenna fitting. Apply PVC cement to the outside surface of the tubing, then push hard on
the tubing, securing it to the antenna fitting.
Note: Follow PVC cement instructions for proper surface preparation and use.
8. Apply PVC cement to the exposed piece of tubing. While holding the antenna in place,
push the Junction Box in until the fittings touch and form a tight seal.
9. Repeat this process for the other 1m antenna assembly. Refer to Steps 3 - 4 and 6 - 8.
Note: The four (4) antenna wires are later attached to the left side connector shown below.
Attach the coax cables first to provide better access and ensure no wires come loose.
