F10 Installation Manual Rev. *60 34 of 71
Remote Voice Alarm
1. Connect the remote voice alarm wiring as shown below (or refer to Table 4.3).

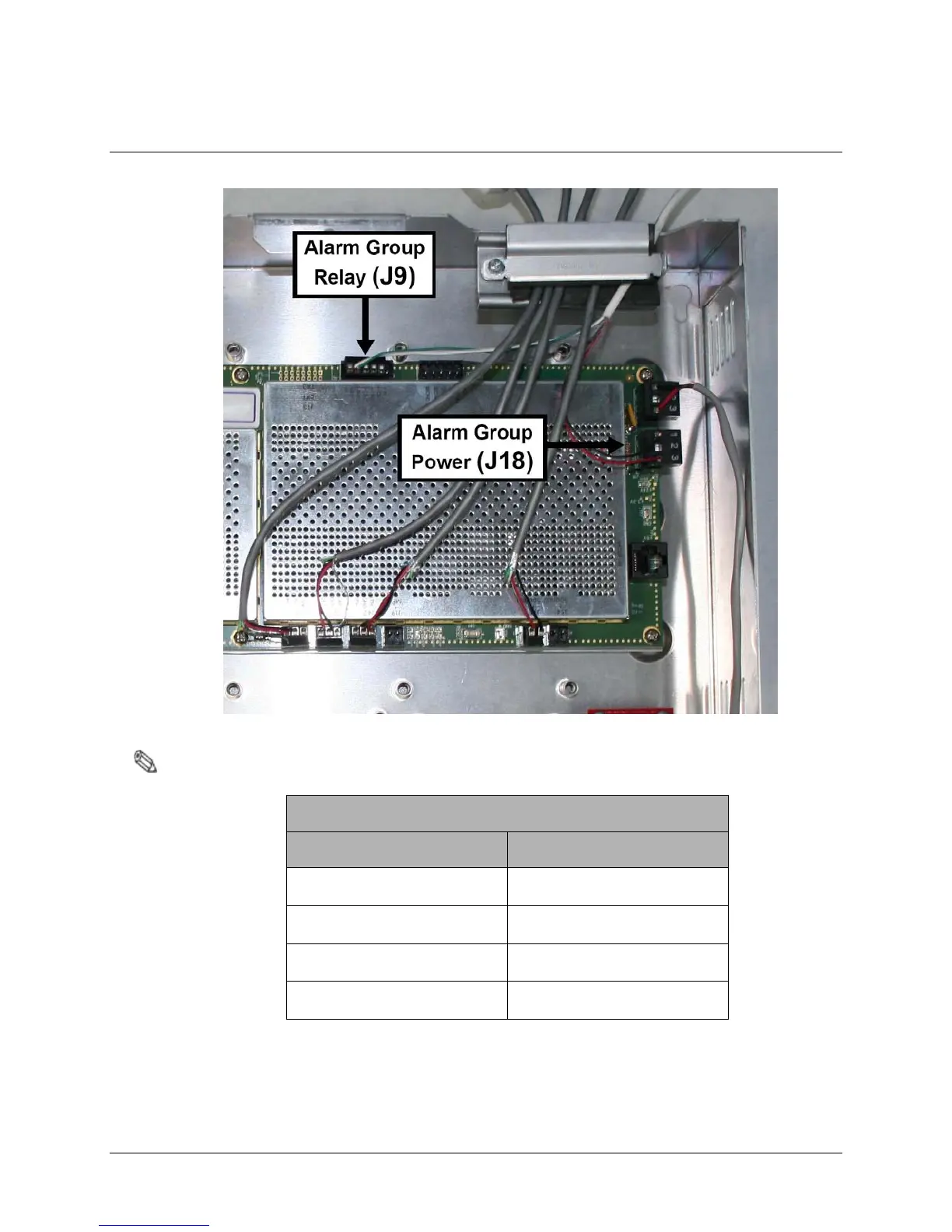

Figure 4.2 Electronics Wiring: Alarm Group Relay
Note: Sync connections are shown. Not all systems will be synced.
Remote Voice Alarm / Alarm Counter
Wire Color TR4215 Connections
WHITE (RLY) J9-5
GREEN (RLY) J9-6
RED (+24V DC) J18-3
BLACK (Ground) J18-1
Table 4.3 Alarm Group Wiring Connections
2. Install the device and complete wiring at the peripheral device(s).
Refer to the peripheral’s Installation Instructions.
