Instruments and Controls 5-31

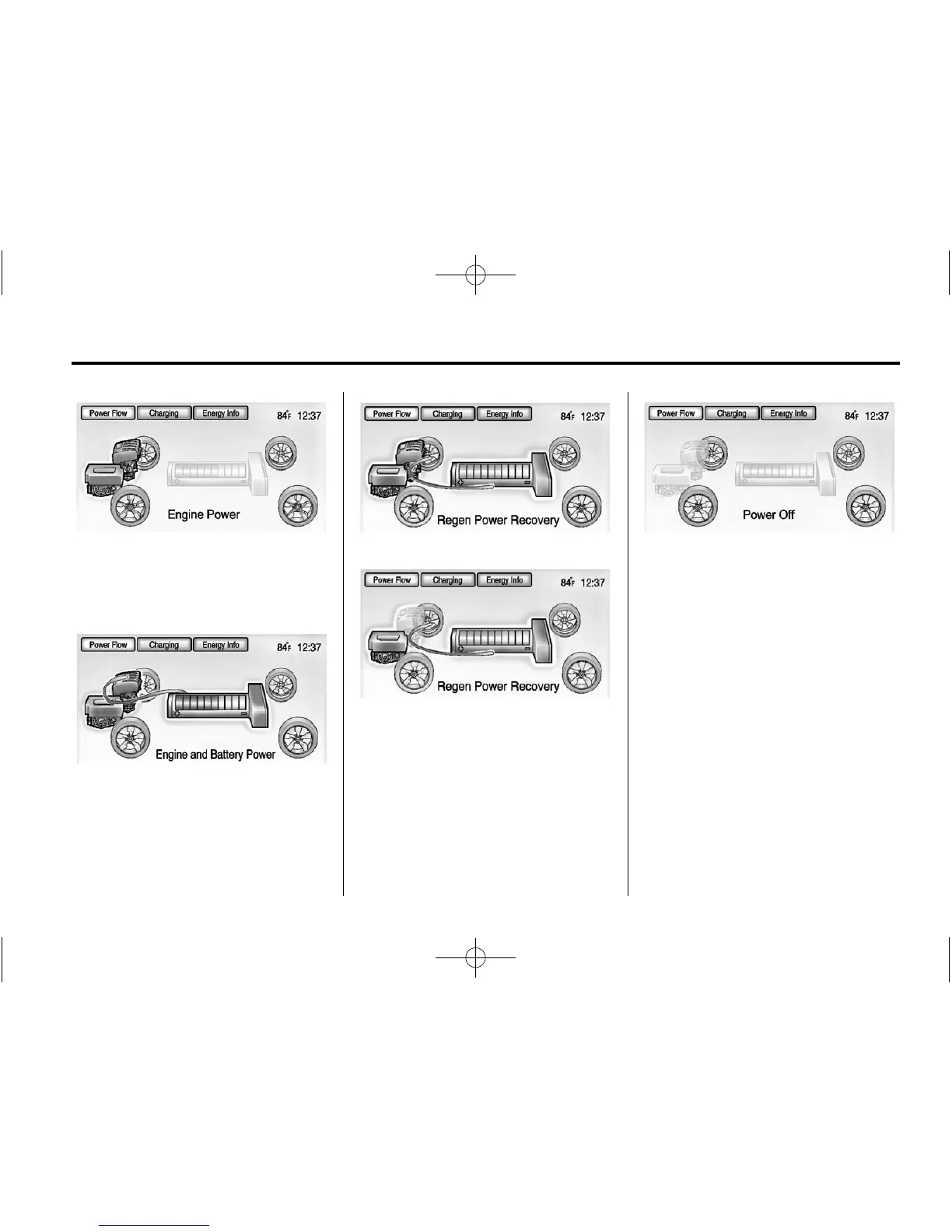

Engine Power ‐ Vehicle is stationary
in extended range mode and no
power is flowing to the wheels.
Engine and Battery Power ‐ Both
the engine and battery are active
with energy flowing to the wheels.
Regen Power Recovery ‐ Power
from the wheels returns to the
battery during regenerative braking
or coasting.
Power Off ‐ No power is flowing to
the wheels.
