5-30 Instruments and Controls
The center stack controls only need
a light touch to operate and work
best with bare hands. The controls
will work with most gloves although
they may take longer to respond.
Use the finger pad rather than the
finger tip to minimize response time.
If the controls are not responding,
remove the gloves.
To view the Power Flow, Charging,
and Energy Information, press the
[ button on the center stack.

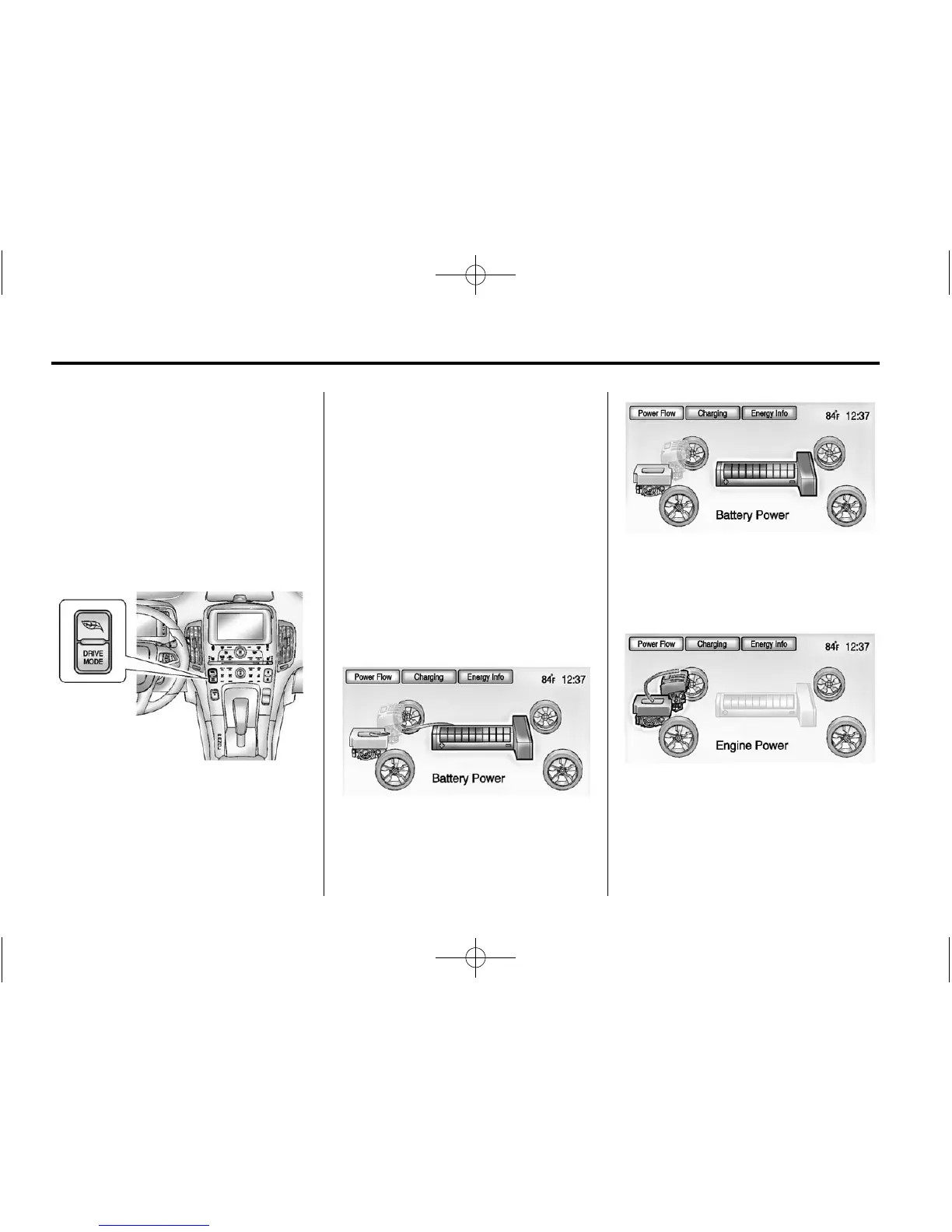

Power Flows
To view the Power Flow screens,
press the
[ button on the center
stack and then press the Power
Flow button at the top of the touch
screen. The Power Flow screens
indicate the current system
operating condition. The screens
show the energy flow between the
engine, electric drive unit, and high
voltage battery. These components
will be highlighted when they are
active.
Battery Power ‐ Battery is active
with energy flowing to the wheels.
Battery Power ‐ Vehicle is stationary
in electric mode and no power is
flowing to the wheels.
Engine Power ‐ Engine is active
with energy flowing to the wheels.
