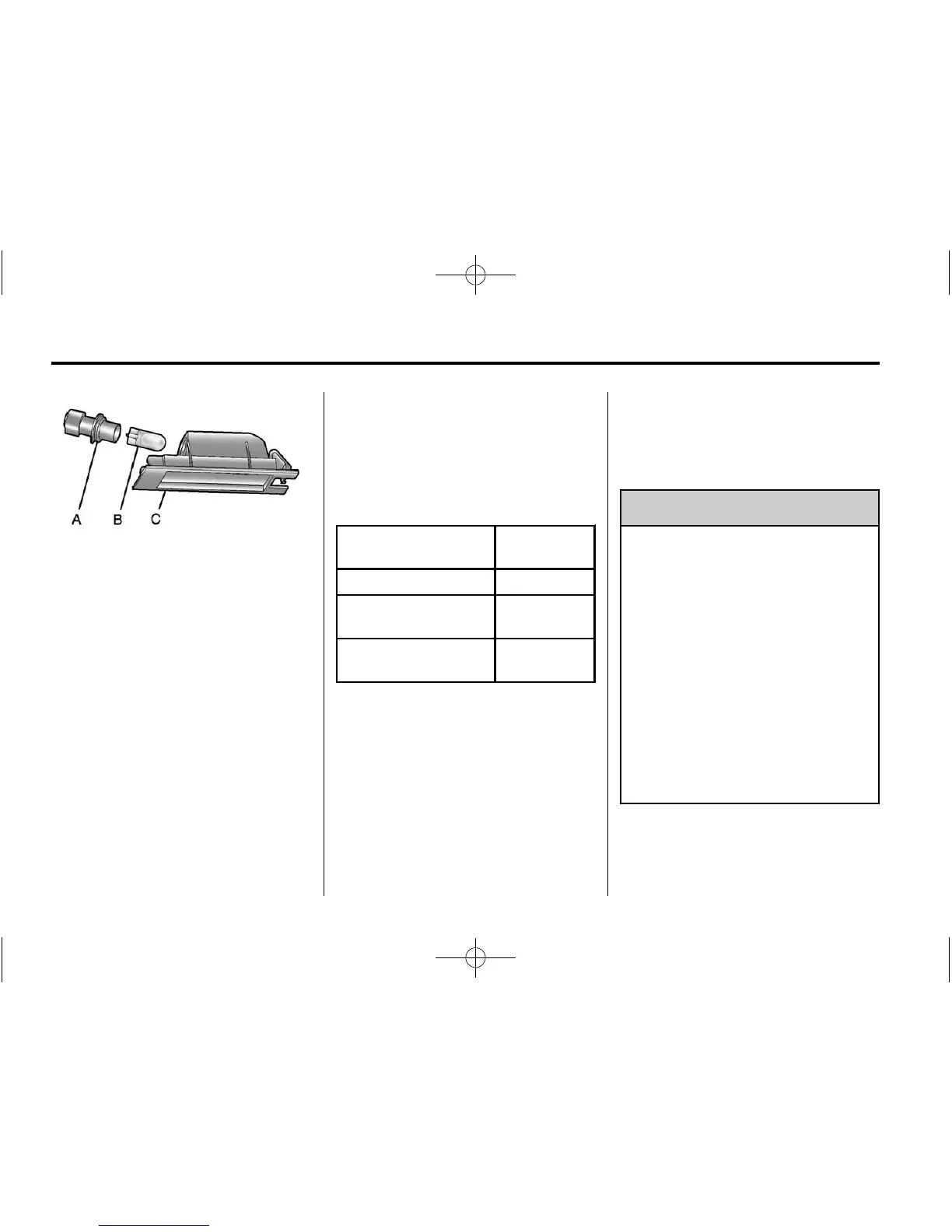

A. Bulb Socket
B. Bulb
C. Lamp Assembly
3. Turn the bulb socket (A)
counterclockwise to remove it
from the lamp assembly (C).
4. Pull the bulb (B) straight out of
the bulb socket (A).
5. Push the replacement bulb
straight into the bulb socket (A)
and turn the bulb socket (A)
clockwise to install it into the
lamp assembly (C).
6. Reinstall the lamp assembly (C)
into the fascia by inserting the
left side first.
7. Push the spring clip side into
place.
Replacement Bulbs
Exterior Lamp
Bulb
Number
Back-Up Lamps 3157K
High/Low‐Beam
Headlamps
HIR2 (9012)
License Plate
Lamps
W5W LL
For replacement bulbs not listed
here, contact your dealer.
Electrical System
High Voltage Devices and
Wiring
{
WARNING
Exposure to high voltage can
cause shock, burns, and even
death. The high voltage
components in the vehicle can
only be serviced by technicians
with special training.
High voltage components are
identified by labels. Do not
remove, open, take apart,
or modify these components.
High voltage cable or wiring has
orange covering. Do not probe,
tamper with, cut, or modify high
voltage cable or wiring.
