R410A50Hz Universal Outdoor Series TechnicalManual Outdoor unit
145
GD Chigo Heating & Ventilation Equipment Co., Ltd.

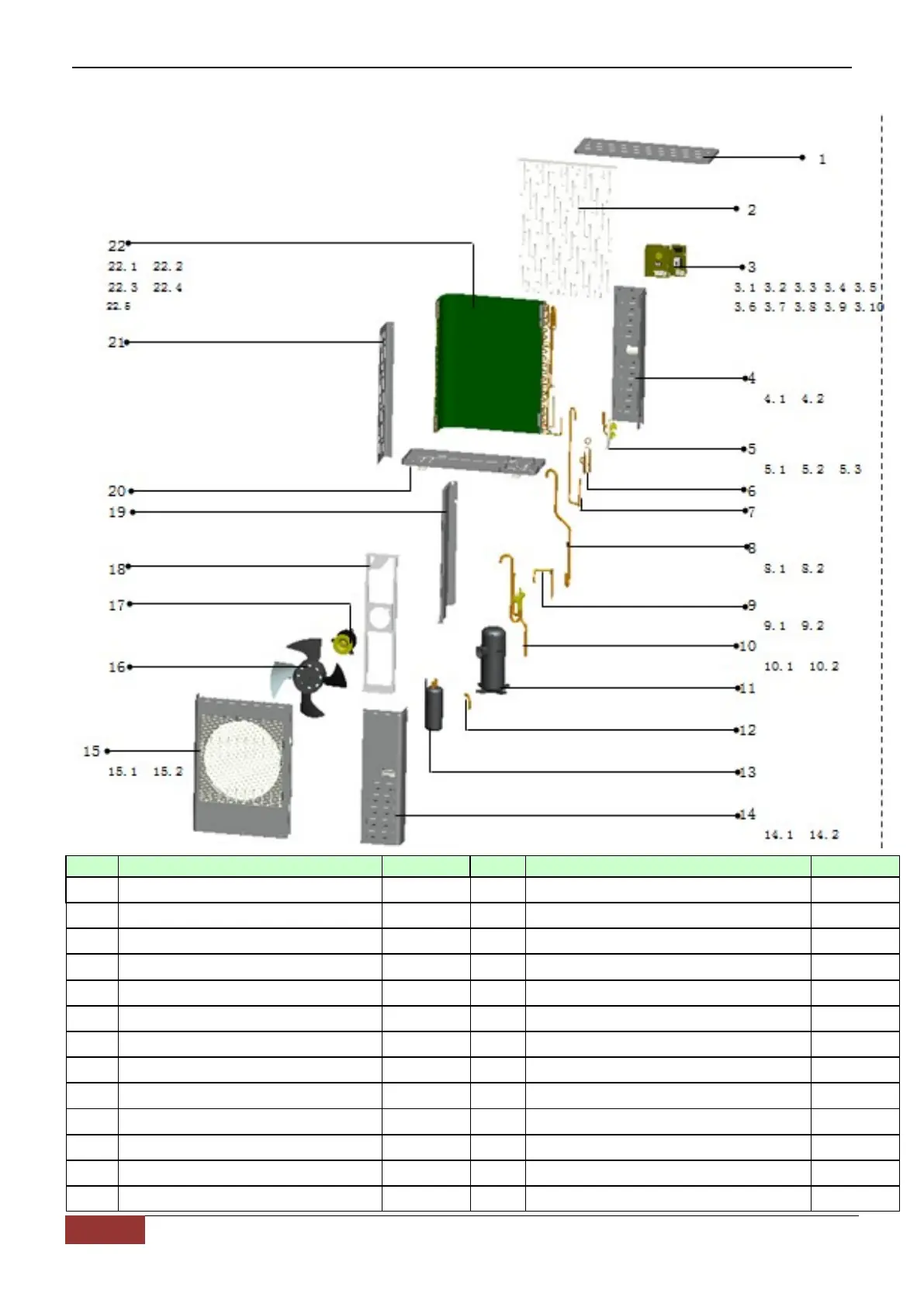

8.3 COU-36HR1
COU-36HSR1
No.
Part Name
Quantity
No.
Part Name
Quantity
1
Cover
1
9.1
Discharge pipe A for compressor
1
2
Rear net
1
9.2
High-pressure switch
1
3
E-parts assy
1
10
4-Ways valve assy
1
3.1
Fan motor capacitor
1
10.1
4-Ways valve assy
1
3.2
temp. sensor
1
10.2
Control wire for 4-Ways valve
1
3.3
Contactor
1
11
Compressor
1
3.4
Terminal
1
12
Suction pipe for compressor
1
3.5
Terminal
1
13
Vapor-liquid separator
1
3.6
Cover for E-parts
1
14
Maintenance board assy
1
3.7
Main control board
1
14.1
Maintenance board
1
3.8
Protection cap
2
14.2
Handle
1
3.9
Discharge temp sensor
1
15
Front panel assy
1
3.10
Groove clamp 4
1
15.1
Panel
1
