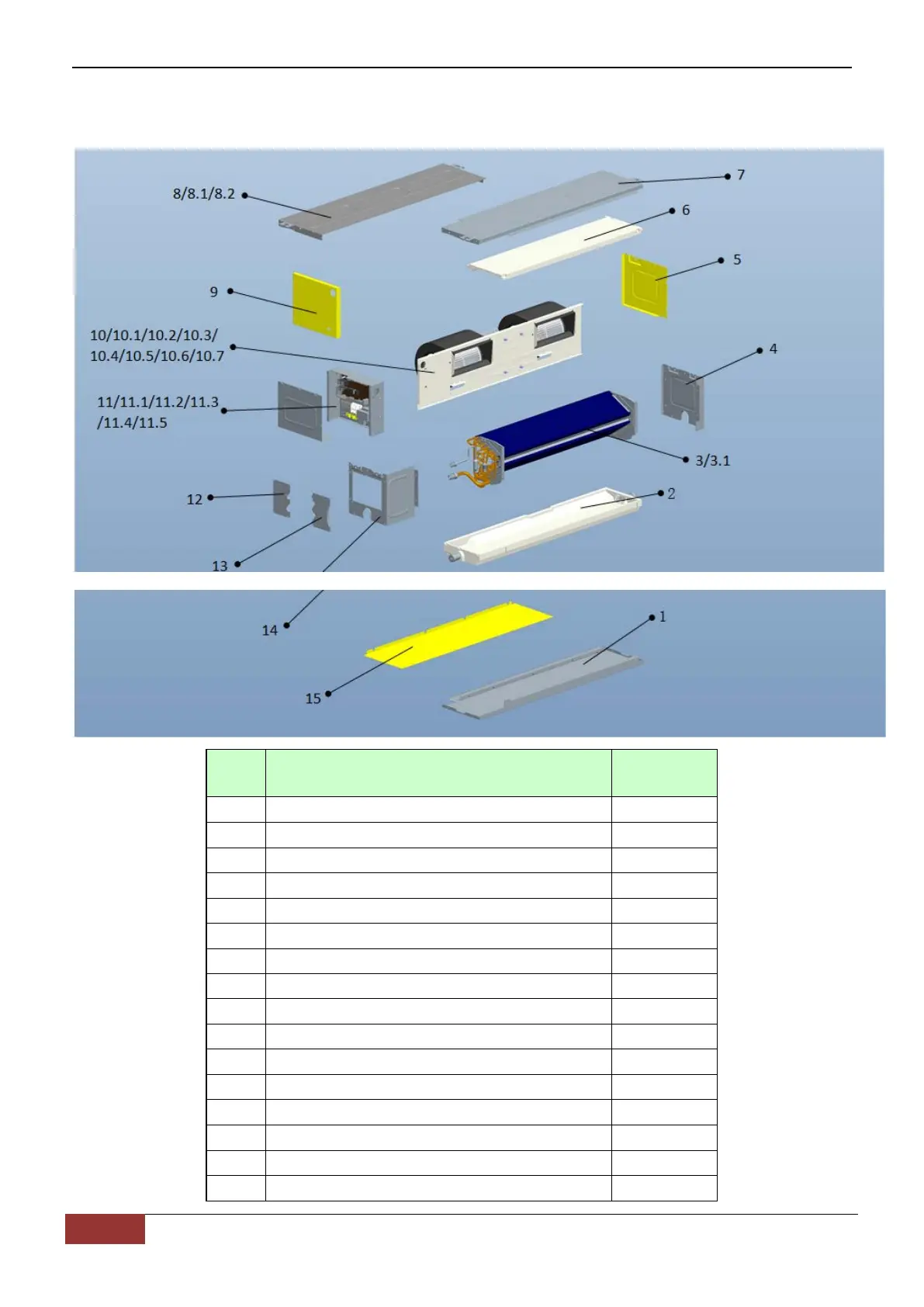

13.Exploded View
13.1 CTA-18HR1, CTA-24HR1
No. Part Name Quantity
1
the bottom plate component
1
2
water pan
1
3
evaporator component
1
3.1
the evaporator welding assy
1
3.1.1
the evaporator
1
3.1.2
the fixed plate of evaporator I
1
3.1.3
the fixed plate of evaporator II
1
3.1.4
the air ballfe comnponent of evaporator
1
3.1.5
single connector assy
1
3.1.6
output pipe assy
1
3.1.7
input pipe assy
1
3.1.8
the fixed hanger of evaporator
4
4
the right side plate component
1
5
the right cover plate of air return box
1
6
upper foam
1
7
the top cover component
1
