R410A50Hz Universal Outdoor Series Technical ManualController
GD Chigo Heating & Ventilation Equipment Co., Ltd.
For construction convenience, before laying pipes, use insulation material to insulate the pipes
to be deal with, at the same time, at two ends of the pipe, remain some length not to be
insulated, in order to be welded and check the leakage after laying the pipes.
5.2.3. Insulate for the jointing area, expanding area and the flange area
① Insulate for the jointing area, expanding area and the flange area should be done after
checking leakage of the pipes

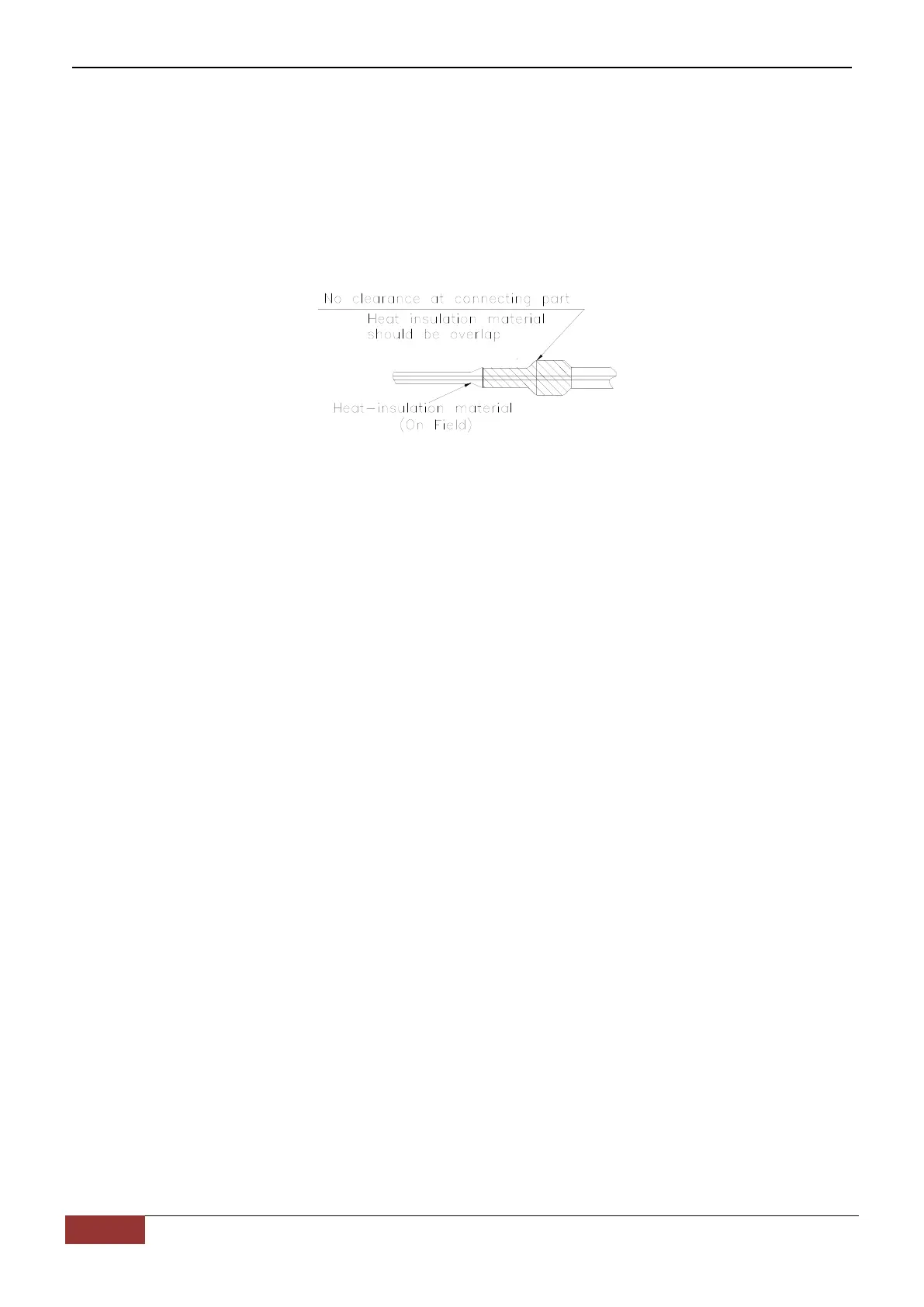

② Make sure there’s no clearance in the joining part of the accessorial insulation material and
local preparative insulation material.
5.3 Drainage pipe insulation
The connection part should be insulated, or else water will be condensing at the non-insulation
part.
5.4 Note
5.4.1 The jointing area, expanding area and the flange area should be heat insulated after
passing the pressure test
5.4.2 The gas and liquid pipe should be heat insulated individually, the connecting part should
be heat insulated individually.
5.4.3 Use the attached heat-insulation material to insulate the pipe connections (pipes’
tie-in ,expand nut ) of the indoor unit
.
