Chigo CCB-12HR1 User Manual

R410A50Hz Universal Outdoor Series Technical Manual Duct Type Indoor Unit
88
GD Chigo Heating & Ventilation Equipment Co., Ltd.

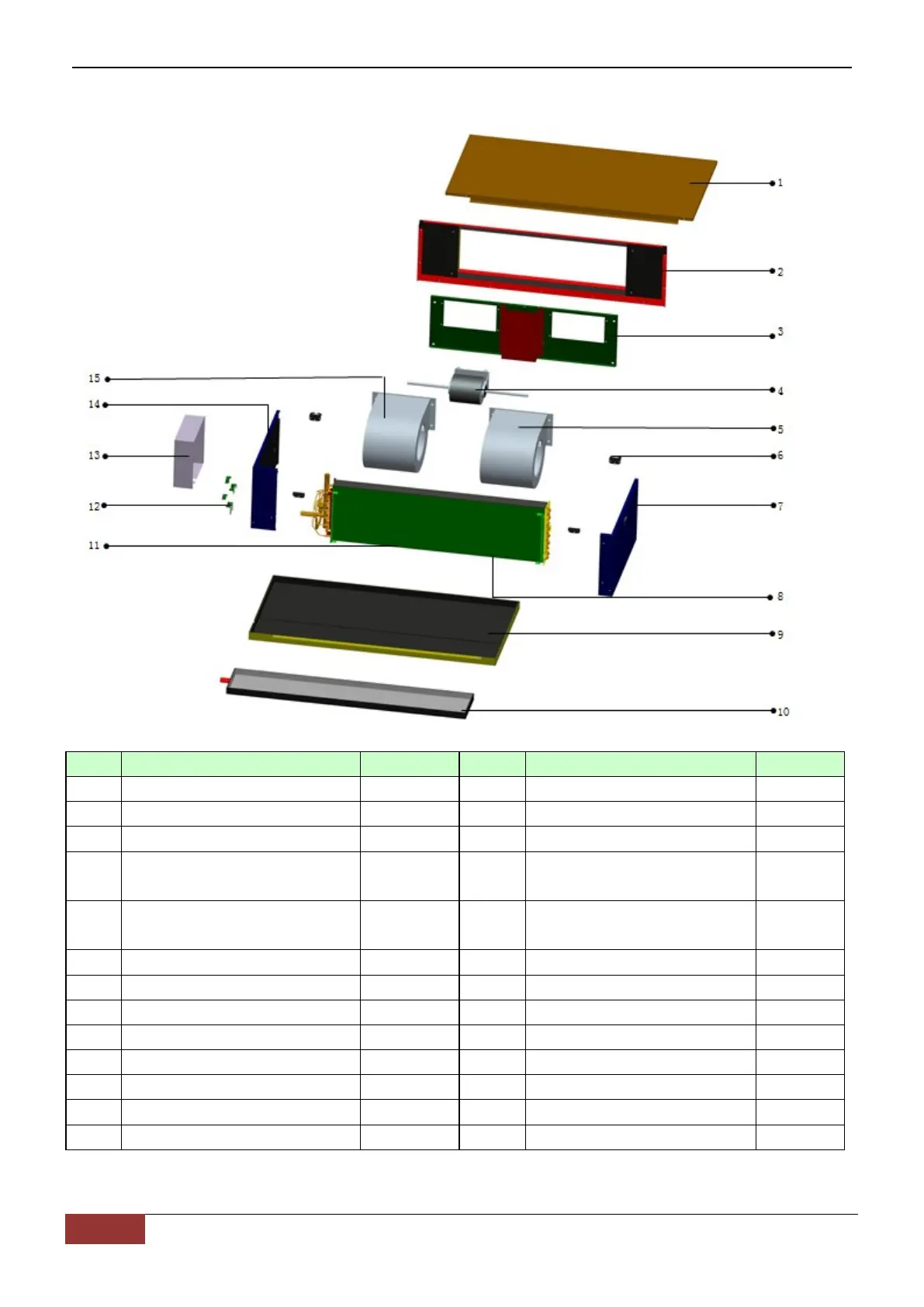

13.4CTH-48HR1, CTH-60HR1
No.
Part Name
Quantity
No.
Part Name
Quantity
1
Head cover assy
1
12.2
φ35 upper Pipe clamp
1
2
Front panel
1
12.3
φ20 lower Pipe clamp
1
3
Fixing board assy for fan
1
12.4
φ35 lower Pipe clamp
1
4
Twin screw Motor for
indoor unit
1 13
Electric control components
1
5
Left wind wheel scroll case
1 13.1
Electric control board assy
for indoor unit
1
6
Hanger
4
13.2
Temp sensor
1
7
left clapboard assy
1
13.2.1
Room temp sensor
1
8
Fixing board for Air return
2
13.2.2
Indoor Pipe temp sensor
1
9
Base plate assy
1
13.3
transformer
1
10
Water pan assy
1
13.4
Terminal
1
11
Evaporator assy
1
14
Right clapboard assy
1
12
Pipe clamp
1
15
Right wind wheel scroll case
1
12.1
φ20 upper Pipe clamp
1
